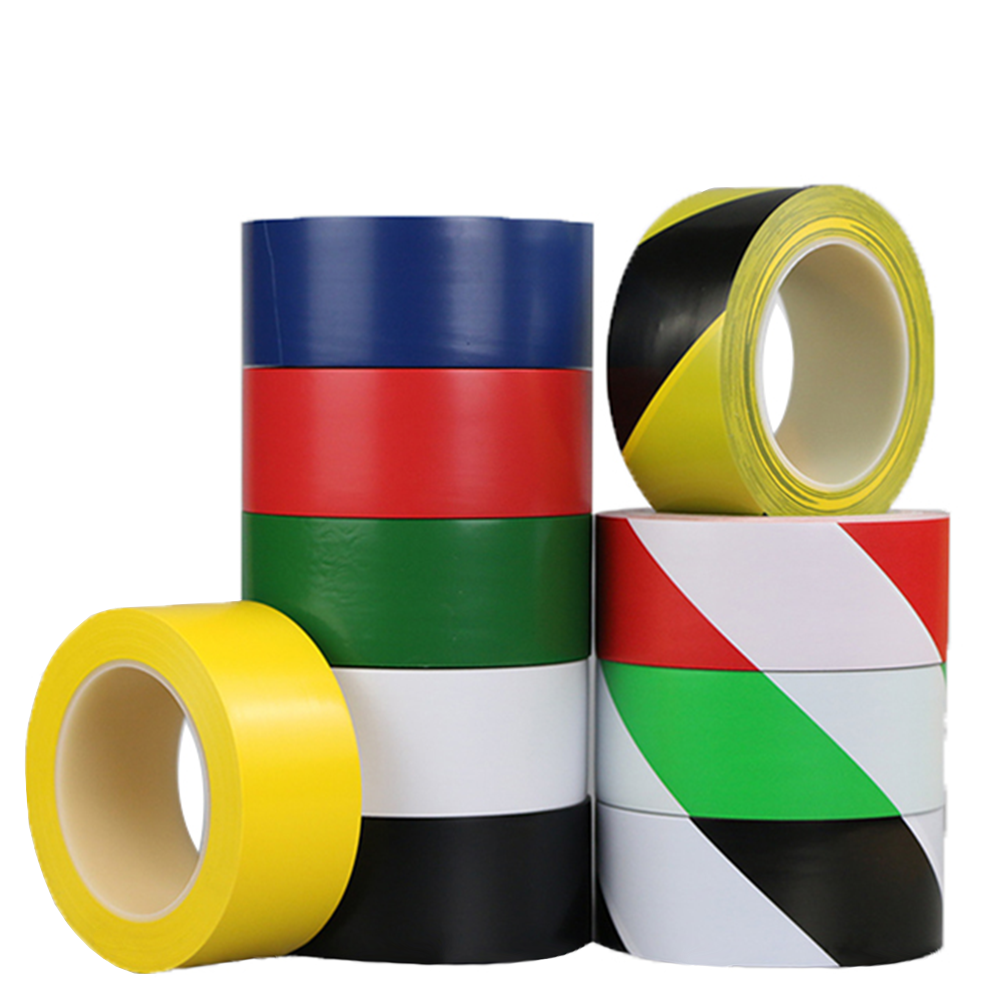

Characteristics
-Multi-colored, tough, high performance, little contraction at the cuts
-Eco-friendly, healthy, safety
-High mechanical strength, excellent adhesion, warning and identification function
Specification
-Various Length：25m 50m
-Various Width：48mm 50mm
-Inner Core Diameter：76mm
Color：black/yellow white/red white/green or other single color
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
PVC
-
Feature:
-
Waterproof
-
Use:
-
MASKING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
SHUSHI
-
Model Number:
-
WR130
-
Product name:
-
Masking Tape
-
Keywords:
-
PVC Floor Marking Warning Tape
-
Application:
-
warning and identification function
Quick Details
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
PVC
-
Feature:
-
Waterproof
-
Use:
-
MASKING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
SHUSHI
-
Model Number:
-
WR130
-
Product name:
-
Masking Tape
-
Keywords:
-
PVC Floor Marking Warning Tape
-
Application:
-
warning and identification function
Products Description
Marking Tape
Product Parameters
|
PROPERTY
|
UNIT
|
WR130
|
WR150
|
WR170
|
TEST METHOD
|
|||||
|
Thickness
|
mm
|
0.13
|
0.15
|
0.17
|
ASTM D 1000
|
|||||
|
Tensile Strength
|
N/cm
|
19
|
21
|
22
|
ASTM D 1000
|
|||||
|
Elongation
|
%
|
160
|
170
|
180
|
ASTM D 1000
|
|||||
|
Electrical Strength
|
KV/mm
|
1.8
|
1.7
|
1.6
|
ASTM D 1000
|
|||||
|
Content of RoHS Restricted Substances
|
|
|
|
|
|
|||||
|
Cadmium
|
ppm
|
＜100
|
＜100
|
＜100
|
IEC62321
|
|||||
|
Lead, Mercury, Chromium(VI)
|
ppm
|
each ＜100
|
each ＜100
|
each ＜100
|
IEC62321
|
|||||
|
PBBs, PBDEs
|
ppm
|
each ＜100
|
each ＜100
|
each ＜100
|
IEC62321
|
|||||
Related products
Application
Electrical insulating, Marking or binding for wire and cable below 600V
Protection for sheath of high & low voltage wire and cable
Working temperature 0℃～80℃
Other occasions that fire prevention is strictly required
Protection for sheath of high & low voltage wire and cable
Working temperature 0℃～80℃
Other occasions that fire prevention is strictly required
Production Process
About SHUSHI
CHOOSE QUALITY , CHOOSE SHUSHI
ShuShi Group Co., Ltd. was founded in 1993. located in Xiaonan Economic Development District, which is only 40 kilo meters from Wuhan Tianhe International Airport and 60 kilo meters from Wuhan port. Our company covers an area of about
282,000
square
meters and employees more than
600
and the annual output of PVC film reaches to
120 million
square meters.
ShuShi is the executive member of the Council of Adhesive and Adhesive Tape Industry Association,
national standard drafter
of China Insulated Rubber Tape Industry, and also
National High-Tech Enterprise
.
We have dedicated our efforts in both the R&D and production of PVC electrical tape, high-voltage insulating self-amalgamating tape, automotive wire harness tape, industrial tape, insulating tape along with dozens of other types of products on long-term basis. Our company has the capability for
one-stop production
of PVC film, pressure-sensitive adhesive, and adhesive tape. We owns six brands: ShuShi, Wise Bird, Chutianshu, Dianlaohu, Yong’an and The Great White Shark. The
Shushi
,
Wise Bird
brands are identified as the
Famous Trademark in China
. The Company has passed the
IATF16949/ISO9001
system approvals and acquired
UL/VDE/RoHS certifications
. and now our sales network is spreading to America, Europe, Southeast Asia and other 60 countries and regions in the world, especially in UK, American, Germany, Mexico and Brazil.
Packing and Shipping
FAQ
1.For PVC Electrical Insulating Tape, does the stronger stickiness mean the better quality? Why do some tapes seem not very stickywhen tested by hand touch?
The correct method to determine the stickiness of a PVC electrical insulating tape is to use the instrument to detect it
according to the tape viscosity standard of different thickness, rather than to feel it by hand. If simply use the hand feeling to determine the stickiness, coating the tape with more glue is enough, but finally it will cause glue overflowing.
ShuShi Group is a professional manufacturer of PVC electrical insulating tape with more than 20 years experience. We have excellent technical support to make our products have a reasonable proportion of glue, avoid glue overflowing and flagging problems.
2.Reasons For Using Electrical Tape
Electrical tape has a twofold job to do. When wrapped around an electrical wire, its job is to stop electrical current passing
to or from another wire by mistake, as this could create a short which could lead to the circuit breaker turning off and stopping electrical flow to the electrical device. Also, more dangerously, the short could start an electrical fire. Electrical tape's second purpose is to stop any possible electrocution if the wire happens to be live (hot) and is touched by someone.
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
4.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit.
The correct method to determine the stickiness of a PVC electrical insulating tape is to use the instrument to detect it
according to the tape viscosity standard of different thickness, rather than to feel it by hand. If simply use the hand feeling to determine the stickiness, coating the tape with more glue is enough, but finally it will cause glue overflowing.
ShuShi Group is a professional manufacturer of PVC electrical insulating tape with more than 20 years experience. We have excellent technical support to make our products have a reasonable proportion of glue, avoid glue overflowing and flagging problems.
2.Reasons For Using Electrical Tape
Electrical tape has a twofold job to do. When wrapped around an electrical wire, its job is to stop electrical current passing
to or from another wire by mistake, as this could create a short which could lead to the circuit breaker turning off and stopping electrical flow to the electrical device. Also, more dangerously, the short could start an electrical fire. Electrical tape's second purpose is to stop any possible electrocution if the wire happens to be live (hot) and is touched by someone.
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
4.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit.
