Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2000(L) 800 (W) 1650 (H) mm
-
Weight:
-
300 KG
-
Machinery Capacity:
-
60-300pcs/min
-
Product name:
-
Vial Labeling Machine
-
Labeling speed:
-
60-300PCS/MIN
-
Label material:
-
Self-adhesive Label
-
Label accuracy:
-
In+-0.3mm
-
Label length:
-
10-200mm
-
Label width:
-
5-200mm
-
Keyword:
-
Small Tube Labeller
-
Labeling type:
-
Wrap Round
-
After-sales Service Provided:
-
Online Video Technical Support
-
Bottle type:
-
Small Round Vial Bottle
Quick Details
-
Application:
-
Food, Beverage, Chemical
-
Packaging Type:
-
case
-
Packaging Material:
-
Wood
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2000(L) 800 (W) 1650 (H) mm
-
Weight:
-
300 KG
-
Machinery Capacity:
-
60-300pcs/min
-
Product name:
-
Vial Labeling Machine
-
Labeling speed:
-
60-300PCS/MIN
-
Label material:
-
Self-adhesive Label
-
Label accuracy:
-
In+-0.3mm
-
Label length:
-
10-200mm
-
Label width:
-
5-200mm
-
Keyword:
-
Small Tube Labeller
-
Labeling type:
-
Wrap Round
-
After-sales Service Provided:
-
Online Video Technical Support
-
Bottle type:
-
Small Round Vial Bottle
|
1
|
Label width(height)
|
10-150mm
|
|
2
|
10Label length
|
5-200mm
|
|
3
|
Capacity
|
20-300pcs/min(can be customized)
|
|
4
|
Conveyor speed
|
0-30m/min
|
|
5
|
Labeling accuracy
|
±0.5mm
|
|
6
|
Power supply
|
700W , 220V,50Hz/60Hz (customized)
|
|
7
|
Label reel Inner diameter
|
76mm or 40mm
|
|
8
|
Label reel outer diameter
|
Max 380mm
|
|
9
|
Machine size
|
L2000 * W750 * H1650 mm
|
|
10
|
Machine net weight
|
300KG
|
|
11
|
Online printer
|
Optional
|
|
12
|
Control system
|
Japanese Mitsubishi PLC
|
|
PLC
|
SIEMENS / MITSUBISHI
|
|
HMI
|
SIEMENS / WEINVIEW
|
|
Motor
|
RAYNEN servo motor / KINCO stepper motor
|
|
Sensor
|
SICK / KEYENCE / PANASONIC
|
|
Touches screen
|
WEINVIEW (Taiwan)
|
|
Frequency changer
|
Schneider(Germany)
|
|
Stainless steel material
|
304SS
|

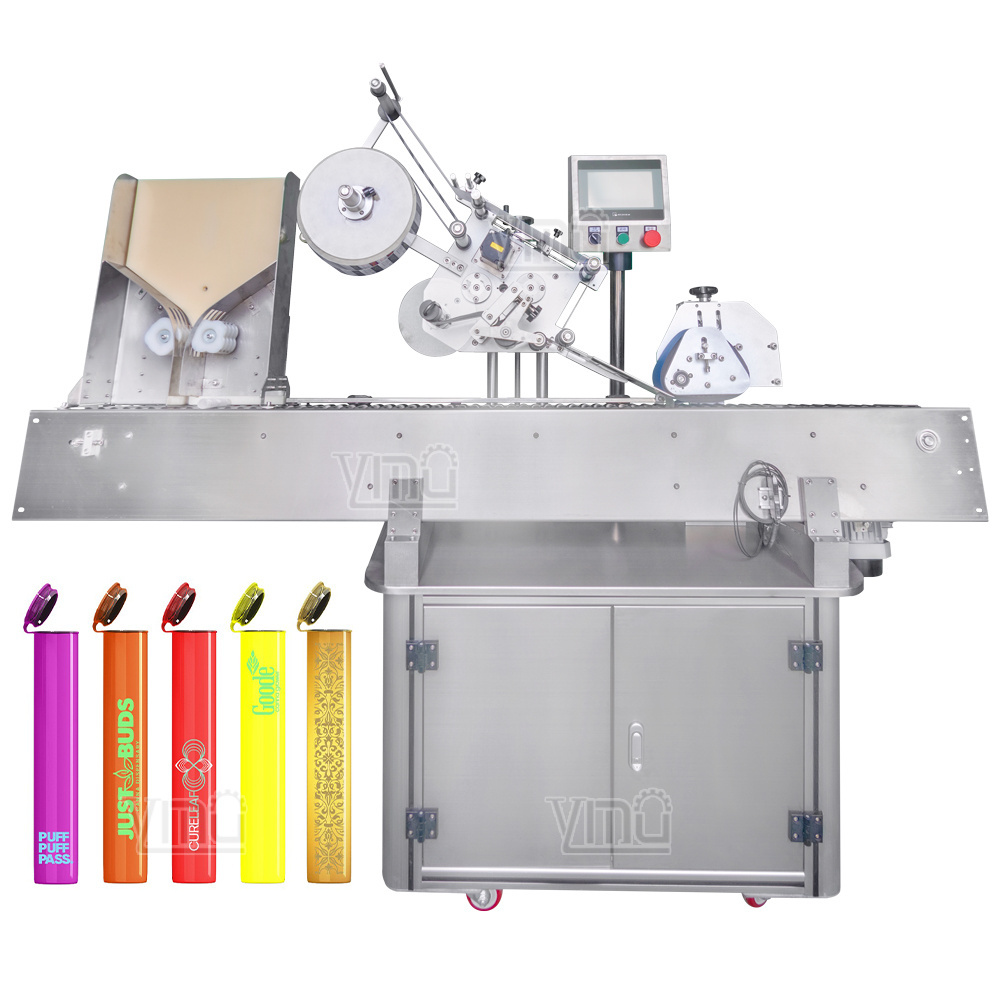

1.This labeller is designed for cylindrical body or bottles with small diameter. It cannot stand on conveyor steadily. Such as ampoule, injecting bottles, correction fluid bottles, dry cells, pens, and so on.
2. It is horizontal labeling, automatic feeding product with distribution device.
3. The machine will stop running automatically when no label. Advanced international control system make labeling in high stability and high speed and low rate of leaving out.
4. PLC with touch screen control, stable performance and easy to operate.
5. Used stainless steel material and aluminum alloy. Good appearance and durable to use.
2. It is horizontal labeling, automatic feeding product with distribution device.
3. The machine will stop running automatically when no label. Advanced international control system make labeling in high stability and high speed and low rate of leaving out.
4. PLC with touch screen control, stable performance and easy to operate.
5. Used stainless steel material and aluminum alloy. Good appearance and durable to use.
