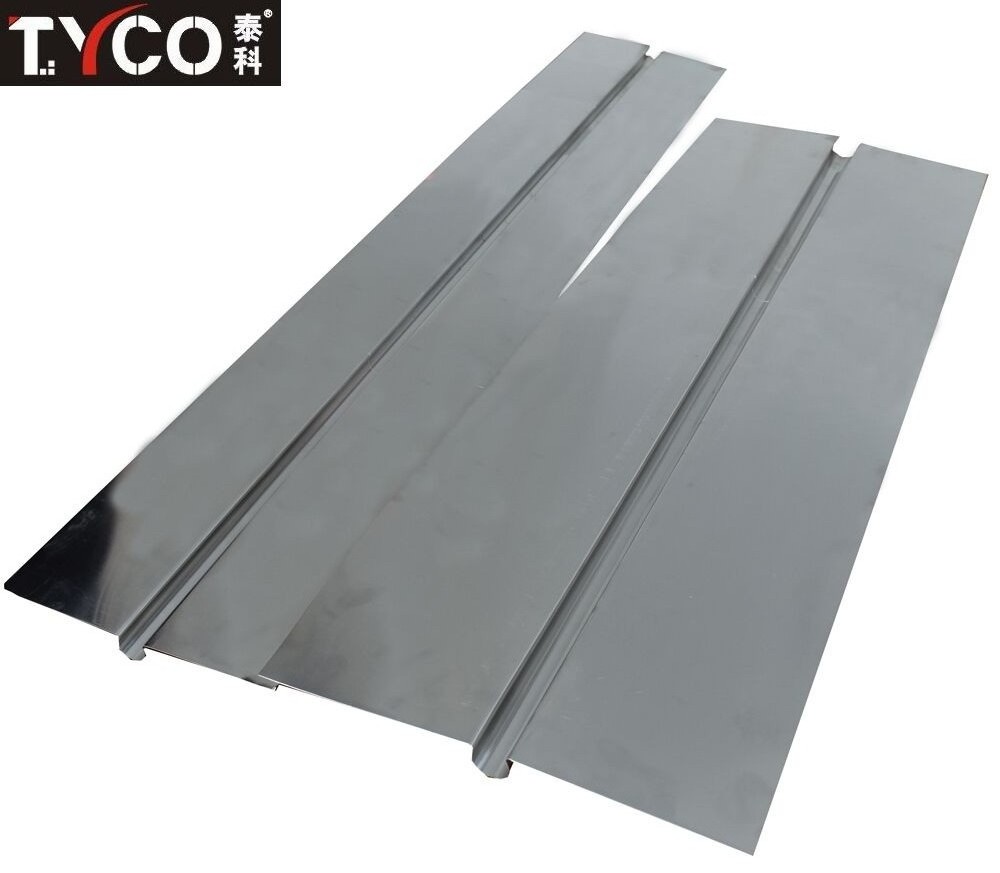

Aluminium plate which used for underfloor heating spread. Through Aluminum heat spread panel, heat can be spread fast and evenly. Aluminium heat spreader plates are laid across traditional josits and fixed in place using a hand stapler.
Our PERT/ PEX-b pipe is fixed in the grooves of the plates, insulation board is placed below the plates to decrease heat loss.
|
Size of the Panel
|
Pipe OD
|
Chanel distance
|
|
1000*390*0.45mm
|
16mm
|
150mm
|
|
1000*390*0.45mm
|
16mm
|
200mm
|
|
1000*390*0.45mm
|
20mm
|
200mm
|
|
1000*290*0.45mm
|
16mm
|
150mm
|
|
1000*190*0.45mm
|
16mm
|
200mm
|
|
1000*140*0.45mm
|
16mm
|
150mm
|
|
1000*190*0.45mm
|
20mm
|
200mm
|
|
1000*100*0.7mm
|
16mm
|
|
