Quick Details
-
Voltage:
-
380V50hz
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHNCH
-
Model Number:
-
E605
-
Warranty:
-
12 MONTH
-
Certification:
-
ce
-
Product name:
-
Spray paint Booth
-
Lighting System:
-
LED Light
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Filters:
-
High Efficiency Filter
-
Payment term:
-
T\T
-
Wall panel:
-
EPS
-
Shipping way:
-
Sea
-
Baking temperature:
-
Spray Paint Baking 60~80
-
Fans kind:
-
Turbo Fan
Quick Details
-
Power:
-
17kw
-
External Size:
-
7010 x 6100 x 3850mm
-
Internal Size:
-
6900 x 4000 x 2800mm
-
Voltage:
-
380V50hz
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHNCH
-
Model Number:
-
E605
-
Warranty:
-
12 MONTH
-
Certification:
-
ce
-
Product name:
-
Spray paint Booth
-
Lighting System:
-
LED Light
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Filters:
-
High Efficiency Filter
-
Payment term:
-
T\T
-
Wall panel:
-
EPS
-
Shipping way:
-
Sea
-
Baking temperature:
-
Spray Paint Baking 60~80
-
Fans kind:
-
Turbo Fan
|

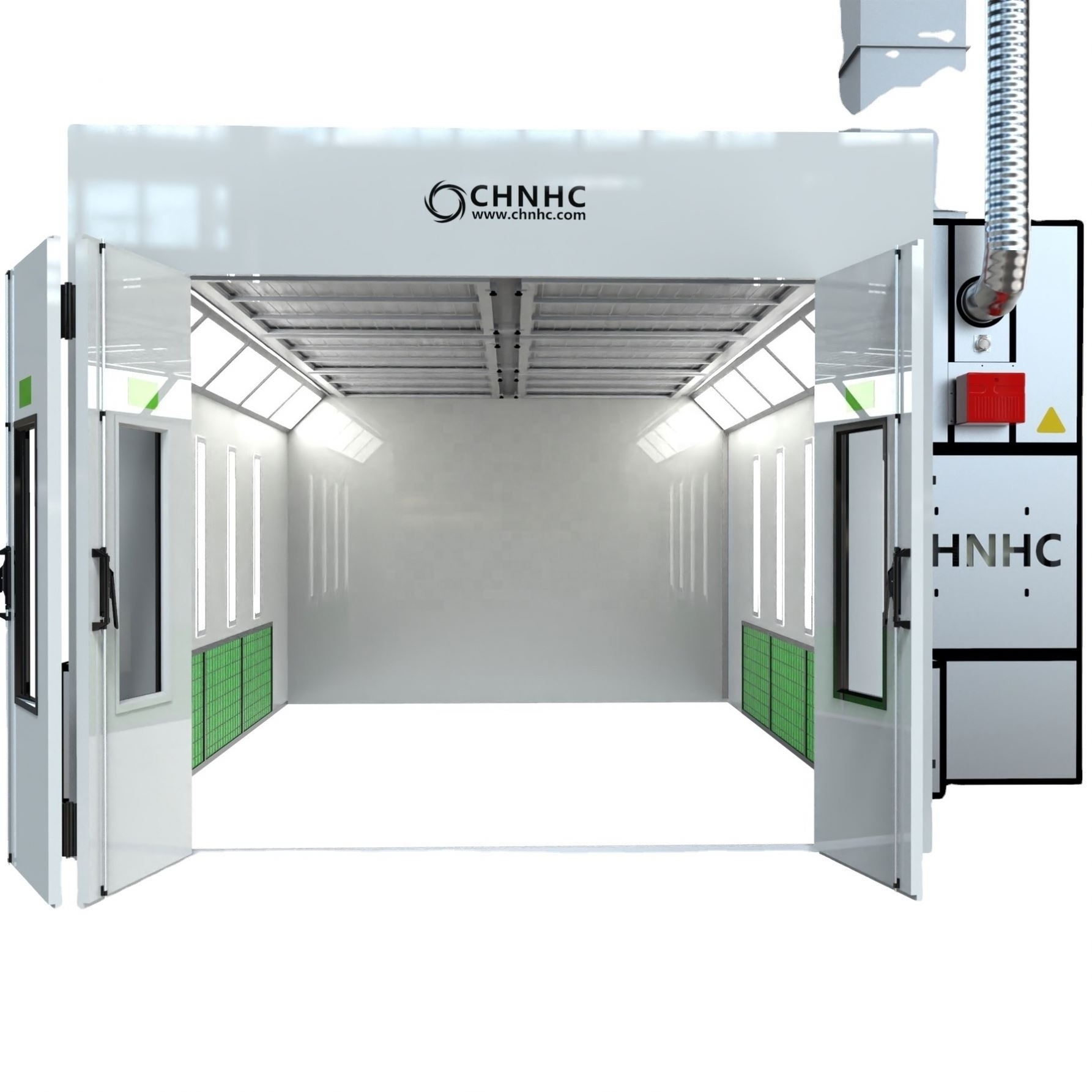

On floor downdraught spray booth E605 (Exhaust system on both sides) |
||
|
Size (L x W x H) |
Inside Size |
6900 x 4000 x 2800mm |
|
|
Outside Size |
7010 x 6100 x 3850 mm |
|
Foundation and Floor |
Foundation |
No metal foundation, two sides draft |
|
Wall and Door |
Wallboard |
Adopt high quality double construction fireproof insulation EPS panel, thickness: 50 mm ( rock wool panel as option) |
|
|
Roof Panel |
Adopt high quality double construction fireproof insulation EPS panel, thickness: 50 mm ( rock wool panel as option) |
|
|
Entrance D oor |
Door with steel frame, 1 set , size: 3100 x 27 00mm (W x H), tempering glass observation window |
|
|
Personnel Door |
1 set, size: 800 x 2000mm (W x H),tempering glass observation window |
|
Light System |
Ceiling Lighting |
8 units, each 4 x 16 w , adopt LED energy saving light, tempering glass |
|
|
Side Lighting |
8 units, each 2 x 16 w , adopt LED energy saving light, tempering glass |
|
|
Brightness |
≥ 10 00 LUX |
|
Filtration System |
Pre-filters |
EU3 grade pocket filter, filter effect is much better |
|
|
Ceiling Filters |
Adopt high efficient adhesive filter, which can capture the dust who is more than 4μ m, its filtering rate reaches 98% |
|
|
Air cabin filter |
Fibreglass paint-stop filter |
|
|
Exhaust F ilters |
Fibreglass paint-stop filter |
|
Ventilation System |
Inlet F an |
Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor , 380V, 970RPM, 50HZ (SIEMENS motor as option) |
|
|
Outlet F an |
Adopt big impeller turbo fan 1 x 7 .5KW , Three-phase, 6 pole motor , 380V, 970RPM, 50HZ (SIEMENS motor as option) |
|
|
Total F an Capacity |
25 ,000m ³ /h |
|
|
Air Flow Speed in C abin |
0. 2 5 - 0.35 m/s in loaded booth |
|
Heating System |
Heating Exchanger |
Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger |
|
Burner Model |
Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h (gas burner or infrared light heater as option) |
|
|
Heating T ime |
4 - 6 minutes (from 20 to 60 º ) under baking status, max baking temperature is 80 ° |
|
|
Control Box |
Control System |
Standard control system |
|
More options |
PLC control, touch screen control, inverter control |
|
|
Function |
Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm indication, baking delay stop protection , temperature limiter , burner error alarm, motor error alarm |
|
|
Total P ower |
1 7 KW |
|
|
Option voltage |
Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz |
Company informattion:
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment
and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus/truck spray paint booth, preparation station, mixing
room, brake lathe, car bench and lifts . All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.Our
company is accredited to the internationally recognized quality standards of CE, ISO9001:2008.
FAQ:
1.Are you a factory or a trading company?
we are a factory and all machines are produced at our own factory.
2.How long is the production?
Within 10 working days after receiving deposit.
3.What is the main product?
spray booth, , Auto body collision system, car repair machine, car lift and etc.
4. How can I pay it?
T/T, Western Union, Credit card and pay latter on alibaba.
5.What's the warranty time?
One years with good after-sale service.
