Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
PENGPU
-
Model Number:
-
G2BL
-
Place of Origin:
-
Shanghai, China
-
Outlet Size:
-
5/32 inch
-
Power:
-
3.8w
-
motor:
-
Brushless DC
-
Product name:
-
DC brushless mini 12v/24v electric diaphragm vacuum pump
-
Max. Flow:
-
1.5L/min
-
Max. intermittent vacuum:
-
-63KPa
-
Max. intermittent pressure:
-
130KPa
-
Motor type:
-
Brushless DC
-
Nominal voltage:
-
12v/24v
-
Nominal speed:
-
5000rpm
-
Weight:
-
44g
-
Lifetime:
-
8000h
-
Size:
-
54*38*22mm
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Family Homes, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Metal and Equipment Manufacturers, temperature control
-
Pressure:
-
Other
-
Voltage:
-
12v/24v
-
Warranty:
-
1 year
-
Brand Name:
-
PENGPU
-
Model Number:
-
G2BL
-
Place of Origin:
-
Shanghai, China
-
Outlet Size:
-
5/32 inch
-
Power:
-
3.8w
-
motor:
-
Brushless DC
-
Product name:
-
DC brushless mini 12v/24v electric diaphragm vacuum pump
-
Max. Flow:
-
1.5L/min
-
Max. intermittent vacuum:
-
-63KPa
-
Max. intermittent pressure:
-
130KPa
-
Motor type:
-
Brushless DC
-
Nominal voltage:
-
12v/24v
-
Nominal speed:
-
5000rpm
-
Weight:
-
44g
-
Lifetime:
-
8000h
-
Size:
-
54*38*22mm

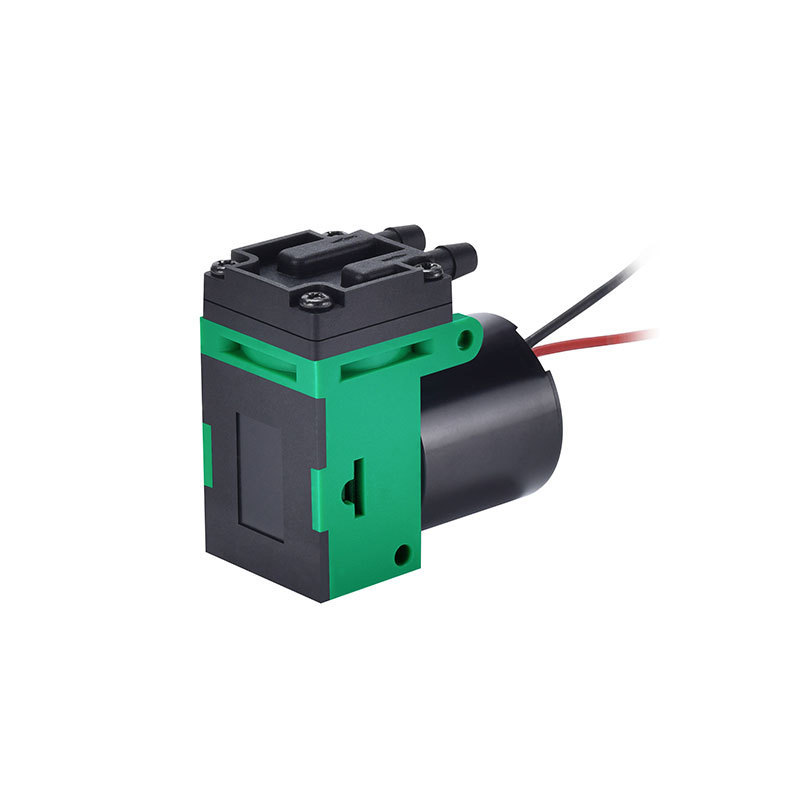

Product Description
PENGPU factory direct sale DC brushless mini 12v/24v electric diaphragm vacuum pump VOC sampling air pump
FEATURES
>Low power consumption
>Low sound level
>Long lifetime
>Compact design
>Lightweight
TYPICAL APPLICATIONS
>Medical devices
>Gas detection
>Analysis
>Analysis
>Battery operated systems
Specification
|
Power Source
|
Electric
|
|
Pressure
|
Other
|
|
Structure
|
Diaphragm Pump
|
|
Outlet Size
|
5/32 inch
|
|
Voltage
|
12v/24v
|
|
Power
|
3.8w
|
|
motor
|
Brushless DC
|
|
Product name
|
PENGPU factory direct sale DC brushless mini 12v/24v electric diaphragm vacuum pump VOC sampling air pump
|
|
Max. Flow
|
1.5L/min
|
|
Max. intermittent vacuum
|
-63KPa
|
|
Max. intermittent pressure
|
130KPa
|
|
Motor type
|
Brushless DC Motor
|
|
Nominal voltage
|
12v/24v
|
|
Nominal speed
|
5000rpm
|
|
Lifetime
|
8000h
|
|
Weight
|
44g
|
