Quick Details
-
Main Circuit Rating Voltage:
-
24v-660v
-
Main Circuit Rating Current:
-
95A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAYAL,kangyu
-
Model Number:
-
LC1-d/CJX2-115
-
Product Name:
-
AC contactor
-
Certificate:
-
ISO9001 CE TUV CCC
-
Type:
-
AC Contractor
-
Rated Current:
-
9A-95A
-
Rated voltage:
-
220V/240V/380V
-
Frequency:
-
50/60Hz
-
Coil Voltage:
-
24v-240v
-
Standard:
-
IEC60947-4
-
Manufacturer:
-
Kayal
-
Mechanical life:
-
10000000
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
24v-660v
-
Main Circuit Rating Current:
-
95A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAYAL,kangyu
-
Model Number:
-
LC1-d/CJX2-115
-
Product Name:
-
AC contactor
-
Certificate:
-
ISO9001 CE TUV CCC
-
Type:
-
AC Contractor
-
Rated Current:
-
9A-95A
-
Rated voltage:
-
220V/240V/380V
-
Frequency:
-
50/60Hz
-
Coil Voltage:
-
24v-240v
-
Standard:
-
IEC60947-4
-
Manufacturer:
-
Kayal
-
Mechanical life:
-
10000000
Products Description
Application

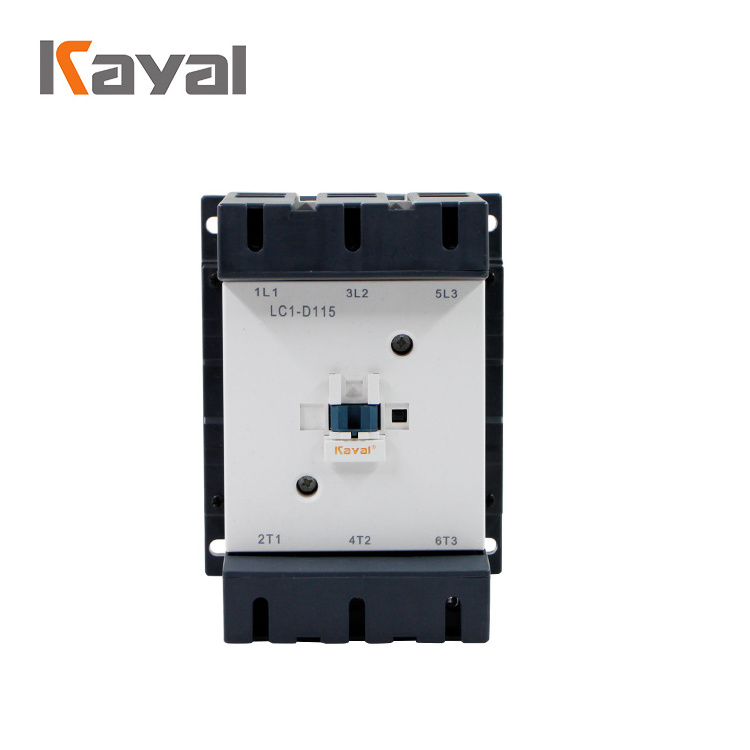

1. CJX2-D115 (LC1 D115) AC Contactor (Magnetic Contactor/Reversing Contactors and Latching Contactors) composed of contacts,
electromagnet and enclosure, are designed to be directly connected to high-current load devices.
2. The AC contactors suitable for using in the circuits up to the rated voltage 600V AC 50Hz or 60Hz, rated current up to 620A,
for making, breaking, frequently starting & machine-interlocking device etc.
3. It becomes the delay contactor, mechanical interlocking contactor, star-delta starter.
4. With the thermal relay, it is combined into the electromagnetic starter.
5. The contactor is produced according to IEC947-2, VDE0660 & BS545.
Specifications
1. CJX2-D115 (LC1 D115) AC Contactor (Magnetic Contactor/Reversing Contactors and Latching Contactors) composed of contacts,
electromagnet and enclosure, are designed to be directly connected to high-current load devices.
2. The AC contactors suitable for using in the circuits up to the rated voltage 600V AC 50Hz or 60Hz, rated current up to 620A,
for making, breaking, frequently starting & machine-interlocking device etc.
3. It becomes the delay contactor, mechanical interlocking contactor, star-delta starter.
4. With the thermal relay, it is combined into the electromagnetic starter.
5. The contactor is produced according to IEC947-2, VDE0660 & BS545.
Specifications
|
Type
|
|
CJX2-D115
|
CJX2-D150
|
CJX2-D170
|
CJX2-D205
|
|
|
Rated workingcurrent (A)
|
AC3
|
115
|
150
|
170
|
205
|
|
|
|
AC4
|
52
|
60
|
75
|
85
|
|
|
Standard powerratings of 3-phase motors50/60Hz incategory AC-3
|
220/230V
|
30
|
40
|
55
|
63
|
|
|
|
380/400V
|
55
|
75
|
90
|
110
|
|
|
|
415V
|
59
|
80
|
100
|
110
|
|
|
|
500V
|
75
|
90
|
110
|
129
|
|
|
|
660/690V
|
80
|
100
|
110
|
129
|
|
|
Rated heat current (A)
|
|
200
|
250
|
250
|
275
|
|
|
Electrical life
|
AC3 (x10
4
)
|
200
|
60
|
60
|
50
|
|
|
|
AC4 (x10
4
)
|
15
|
15
|
15
|
15
|
|
|
Mechanical life (x10
4
)
|
300
|
300
|
300
|
300
|
300
|
|
|
Type
|
|
CJX2-D245
|
CJX2-D300
|
CJX2-D410
|
CJX2-D475
|
CJX2-D620
|
|
|
Rated workingcurrent (A)
|
AC3
|
245
|
300
|
410
|
475
|
620
|
|
|
|
AC4
|
105
|
117
|
138
|
147
|
180
|
|
|
Standard powerratings of 3-phase motors 50/60Hz
|
220/230V
|
75
|
100
|
110
|
147
|
200
|
|
|
incategory AC-3
|
380/400V
|
132
|
160
|
220
|
265
|
335
|
|
|
|
415V
|
132
|
180
|
220
|
280
|
375
|
|
|
|
500V
|
160
|
200
|
250
|
355
|
400
|
|
|
|
660/690V
|
160
|
220
|
280
|
355
|
450
|
|
|
Rated heat current (A)
|
|
315
|
400
|
500
|
700
|
1000
|
|
|
Electrical life
|
AC3 (x10
4
)
|
50
|
50
|
30
|
30
|
20
|
|
|
|
AC4 (x10
4
)
|
15
|
15
|
8
|
8
|
5
|
|
|
Mechanical life (x10
4
)
|
300
|
300
|
300
|
100
|
100
|
100
|
|
