Commercial LED recessed linear profile light 25w/m ceiling flush mount light for store shop

FOB Reference Price: Get Latest Price

≥2 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Office

Product Weight（kg）:: 2.2

Type:: Minimalist

Model Number:: LE9035-1.2M

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Beam Angle(°):: 120

CRI (Ra>):: 80

IP Rating:: IP20

Dimension:: L1200xW90xH35mm

Product name:: Ceiling recessed mount LED linear light

Other length options:: 0.6m, 1.2m, 1.8m, 2.4m

Lamp profile size:: W90xH35mm

Ceiling opening size:: L1200xW75mm

Power factor:: >0.95

Mounting:: Ceiling recessed

Control way:: switch on/off, 0-10V dimmable, Dali dimmable

Lumen efficacy:: 100lm/w

CCT:: 3000K /4000K /6000K

Apply:: Hotel, office, commercial building

Quick Details

Lamp Luminous Efficiency(lm/w):: 100

Warranty(Year):: 5-Year

Lamp Body Material:: Aluminum

Application:: Office

Product Weight（kg）:: 2.2

Type:: Minimalist

Model Number:: LE9035-1.2M

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Beam Angle(°):: 120

CRI (Ra>):: 80

IP Rating:: IP20

Dimension:: L1200xW90xH35mm

Product name:: Ceiling recessed mount LED linear light

Other length options:: 0.6m, 1.2m, 1.8m, 2.4m

Lamp profile size:: W90xH35mm

Ceiling opening size:: L1200xW75mm

Power factor:: >0.95

Mounting:: Ceiling recessed

Control way:: switch on/off, 0-10V dimmable, Dali dimmable

Lumen efficacy:: 100lm/w

CCT:: 3000K /4000K /6000K

Apply:: Hotel, office, commercial building

Product Description

Recessed LED linear light, of profile size W90xH35mm, its lighting width is 75mm.

There are 4 standard lengths to choose, they are 0.6meter, 1.2meter, 1.8meter, 2.4meter.(Equal to 2ft, 4ft, 6ft, 8ft)

And the lamps is connectable(Linkable), it is allowed to connect long straight light such as 3m, 6m, 12m, 20m, 30m, etc.

LED PCB board

Our lamp is using LED PCB board as light source, its heat dissipation is much better. S uperior quality of PC extrusion cover makes sure it is not yellowing after long time use.

PC cover is stuck inside the housing fixture.

Metal Spring mounted buckle

Metal Spring mounted buckle is fixed on the top of aluminum housing, it is much powerful to support the lamp.

For better packing and transport, mounting buckle is not installed on lamp, client need to screw it on spot.

Detailed Images

The lamp profile size is 90mm x 35mm.

Real lighting width is 75mm.

Product Advantage:

Power driver is exterior, fixed on the top of aluminum housing, it is easy to maintain.

Branded power driver is working stably and flicker-free. When taking photos or video in the room, there is no screen flickering on mobile.

Aluminum extrusion profile is 1.5mm thick.

Product Paramenters

Item Number	Dimension(mm)	Opening size(mm)	Power	Other spec
LE9035-0.6M	L600W90H35	L590W75H60	15W	100lm/w, CRI>83, PF>0.95, LED PCB board, FLICKER-FREE, with reflective sheet inside.
LE9035-1.2M	L1200W90H35	L1190W75H60	30W
LE9035-1.8M	L1800W90H35	L1790W75H60	45W
OLE9035-2.4M	L2400W90H35	L2390W75H60	60W

Installation Instructions

Recessed Installation

Open the spring buckle and insert the lamp into the ceiling opening, mounting completed.

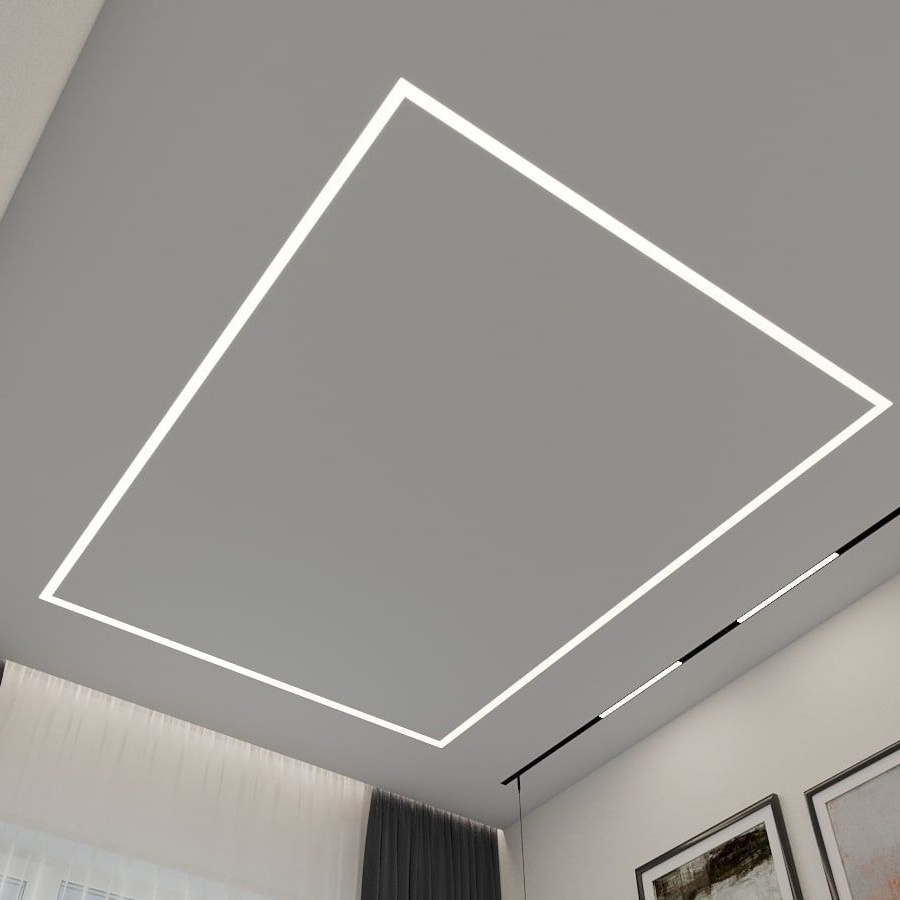

Product Application

Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, furniture store, other indoor places, etc.
