This

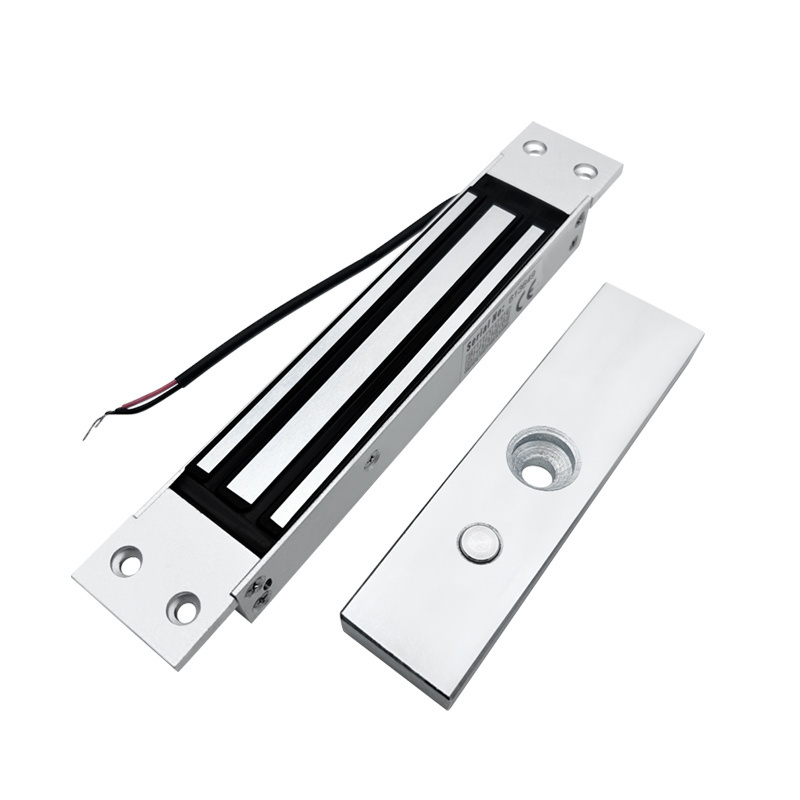

electromagnetic lock is composed of two parts ,Magnetic lock (main body) and Iron plate.and as well working with other access control elements such as fingerprint pad ,face recognition pad ,power supply and so on.It can produce 180kgs holding force to lock down the door with the small voltage such as 12v or 24v.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
waterproof and explosion-proof
-
Feature:
-
embeded mounting
-
Function:
-
low voltage high force
-
Warranty:
-
3 Years
-
Weight:
-
1.1kgs
-
Logo:
-
fanpot
-
Surface treatment:
-
electric plate
-
Service:
-
OEM ODM
-
Certification:
-
CE FCC ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
fanpot
-
Suitable for:
-
metal, wooden and glass door
-
Material:
-
waterproof and explosion-proof
-
Feature:
-
embeded mounting
-
Function:
-
low voltage high force
-
Warranty:
-
3 Years
-
Weight:
-
1.1kgs
-
Logo:
-
fanpot
-
Surface treatment:
-
electric plate
-
Service:
-
OEM ODM
-
Certification:
-
CE FCC ROHS
Product Description
-
-
Product performance description
-
|
Item Number
|
FBD-180M
|
|
Product Name
|
180 KGS Embeded Style Electromagnetic Lock
|
|
Magnetic Lock Size（main body)
|
160L*35W*23Hmm
|
|
Iron Plate
|
130L*33W*13Hmm
|
|
Holding Force
|
180KG
|
|
Input Voltage
|
12/24VDC （adjustable voltage )
|
|
Input Current
|
DC12V/280mA+ -5%
|
|
Suitable for
|
Wooden door,Glass door,Metal door,fireproof door
|
|
Singal Output
|
lock singal stats No/NC/COM/+/-
|
|
Feature
|
Fail sate,Timer delay,feedback signal,12v/24VDC dual voltage
|
|
LED
|
Red shows unlocked,Green shows locked
|
|
Weight
|
1.1KGS
|
|
Certificate
|
CE/MA
|
