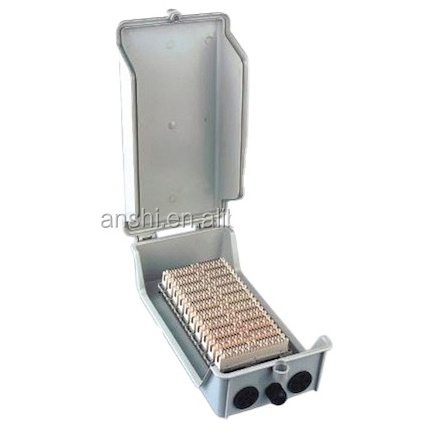

100 Pairs Outdoor Waterproof IP55 LSA Krone Module Telecom Distribution Box

Features:
1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
2) Waterproof box, suitable for outdoor wire distribution
3) Material of house: ABS + PC fire-resistant
4) Including stainless steel mounting frame, but modules to be
ordered separately
5) Including 1 back mount frame
6) Compatible with Krone modules

1.Environment condition: -5-40 degree Celsius;Relative humidity <85% (+30 degree Celsius)Atmospheric pressure: 70-106KPa;
2.The modules are compatible with KRONE LSA-PLUS modules.
3.The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
4.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N;
5.Internal diameter of connection wire: 0.4-0.6 mm
6.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard;
7.Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections;
8.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition;
9.Intermediate resistance: no more than 3m ohm under standard examination condition;
10.Dielectric strength: according to industry standard
11.Specification: 100pairs ,waterless ,every specification has connection or disconnection types
12.Life: durability 200 cycles
