Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700-6500K, 2700-6500
-
Input Voltage(V):
-
AC85-265V
-
Model Number:
-
PL-TD-062-10W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Working Temperature(℃):
-
-50 - 50
-
LED Light Source:
-
SMD
-
Product name:
-

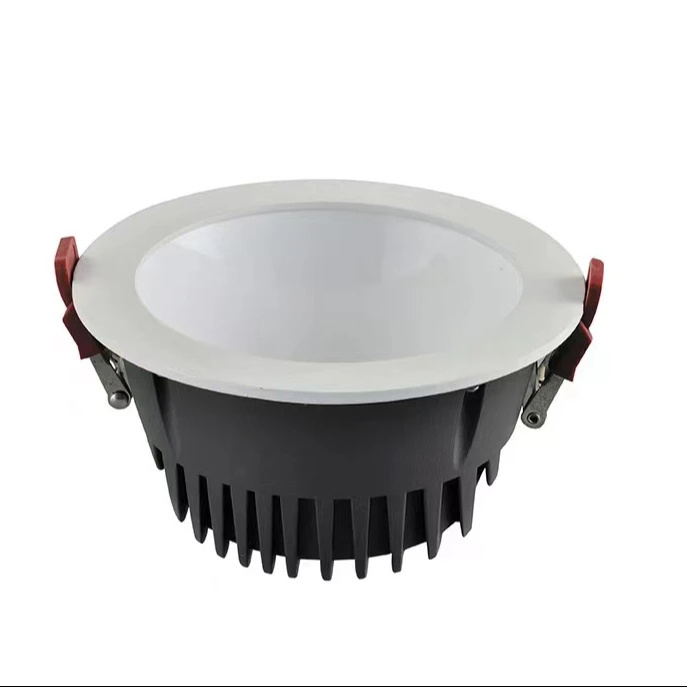

Led Ceiling Downlight
-
Power:
-
9W 18W 20W 30W 40W
-
Beam angle:
-
120
-
Material:
-
Aluminum + Frosted Pc Cover
-
Keyword:
-
LED Recessed Lighting Housing
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum Alloy
-
Install Style:
-
Embeded
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700-6500K, 2700-6500
-
Input Voltage(V):
-
AC85-265V
-
Model Number:
-
PL-TD-062-10W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Working Temperature(℃):
-
-50 - 50
-
LED Light Source:
-
SMD
-
Product name:
-
Led Ceiling Downlight
-
Power:
-
9W 18W 20W 30W 40W
-
Beam angle:
-
120
-
Material:
-
Aluminum + Frosted Pc Cover
-
Keyword:
-
LED Recessed Lighting Housing
led down light ,led spot light,led downlight, led spot down light,led flood light,led ceiling light,cob led down lihgt ,smd led downlight
High Quality 10W Recessed LED Spot Light For Home Office Restaurant LED Spotlight Down Light
Led ceiling mini commercial hotel scoop slim gimbal tube fixture exposed recessed round surface mounted downlight
Datasheet
|
Model |
PL-TD-062 |
|||||
|
Power |
7W |
10 W |
12~15 W |
18~20 W |
24~30 W |
40 W |
|
Dimension |
Φ 90X45mm |
Φ 105 X 6 5mm |
Φ 13 0X 68 mm |
Φ 165 X 90 mm |
Φ 185 X 9 5mm |
Φ 22 0X 10 5mm |
|
C utout Dimension |
Φ 70mm |
Φ 85 mm |
Φ 105 mm |
Φ 14 0mm |
Φ 165 mm |
Φ 22 0mm |
|
Luminous Flux |
90-10 0 lm/w |
|||||
|
LED Source |
SMD 3030 |
|||||
|
Input Voltage |
AC 85 ~2 65 V |
|||||
|
Frequency Range |
50~60Hz |
|||||
|
Power factor |
>0.9 |
|||||
|
IP Rating |
IP 20 |
|||||
|
Beam Angle |
1 2 0 ° |
|||||
|
Total Harmonic Distortion |
< 20 % (Typical : 10 %) |
|||||
|
Color Temperature |
3000 K ~ 65 00K |
|||||
|
Color Rendering Index |
CRI> 80 |
|||||
|
Housing Color |
Black + White |
|||||
|
Working Life |
>50,000 hours |
|||||
|
Warranty |
5 years |
|||||
|
Storage Environment |
-30ºC~+ 80 ºC, 10%~90% RH |
|||||
|
Working Environment |
-30ºC~+50ºC, 2 0%~90% RH |
|||||
|
Body & Shade Material |
Die-casting Aluminum housing & P S Reflective |
|||||
|
Where Can Use |
Homes, offices, hotels, shopping malls, restaurants and other indoor occasions |
|||||
Specifications
1. Light source:High power SMD2835
2.Driver approved CE&RoHS , SAA ,TUV
3. 2.5inch ,4inch ,5inch ,6inch, 8inch ,10inch led down light
4. 3W. 5W.10W.15W.20W.25W.30W ,40W,50W,60W led down light
Advantage:
1.The higher luminous efficiency and lower light fades,extraordinary lightness 2.stable quality transformer,over voltage/current protection
3.Built-in driver with wire connector, easy install
4. High brightness, energy saving & environmentally friendly products
Application :
Widely used in household, hotel room ,show room, corridor, hotel lobby, public place of entertainment and so on
Our Service: 1>. Fast deilvery: For samples 3 working day. For bulk order: 5-12working days. We produce over 2000PCS LED spotlight /day. 2>. Good Quality control: We have our own LEDs Encapsulation room, we produce LED drivers by ourselves.
Q: Can we get a sample to test?
A : Yes , we can provide sample to you for testing, just please inform the specific models , size , power , color temperature.
Q: What's the delivery time?
A : Around 3~5 days after get payment for samples, 7-10 working days after get deposit for mass order.
Q: Do you have the technic supports ?
A: Of course, after you receive the lamps, if you have any questions, please tell us, We can try my best to help you .
Q: What's the payment term?
A : We accept TT , Western Union,L/C . For samples , full payment is required upon order confirmation. For mass orders, 30% deposit upon order confirmation and 70% balance before shippment.
