Honda engine is optional
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2300x1600x1900mm
-
Weight:
-
905 KG
-
Engine Power:
-
17 hp
-
Max Splitting Force:
-
22 ton
-
Max log length:
-
6m (20ft)
-
Max log diameter:
-
25cm (10-inch)
-
Max length of splitting wood:
-
58cm (23-inch)
-
Wedge:
-
4-way with hydraulic adjust
-
Length of Chainsaw (inch):
-
50cm (20-inch)
-
Split Cylinder Diameter:
-
4-inch
-
Adjustable height of wedge:
-
15cm
-
Console:
-
5-handle, 14-Directional
Quick Details
-
Use:
-
Cut and Split Log to Firewood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BRT
-
Dimension(L*W*H):
-
2300x1600x1900mm
-
Weight:
-
905 KG
-
Engine Power:
-
17 hp
-
Max Splitting Force:
-
22 ton
-
Max log length:
-
6m (20ft)
-
Max log diameter:
-
25cm (10-inch)
-
Max length of splitting wood:
-
58cm (23-inch)
-
Wedge:
-
4-way with hydraulic adjust
-
Length of Chainsaw (inch):
-
50cm (20-inch)
-
Split Cylinder Diameter:
-
4-inch
-
Adjustable height of wedge:
-
15cm
-
Console:
-
5-handle, 14-Directional

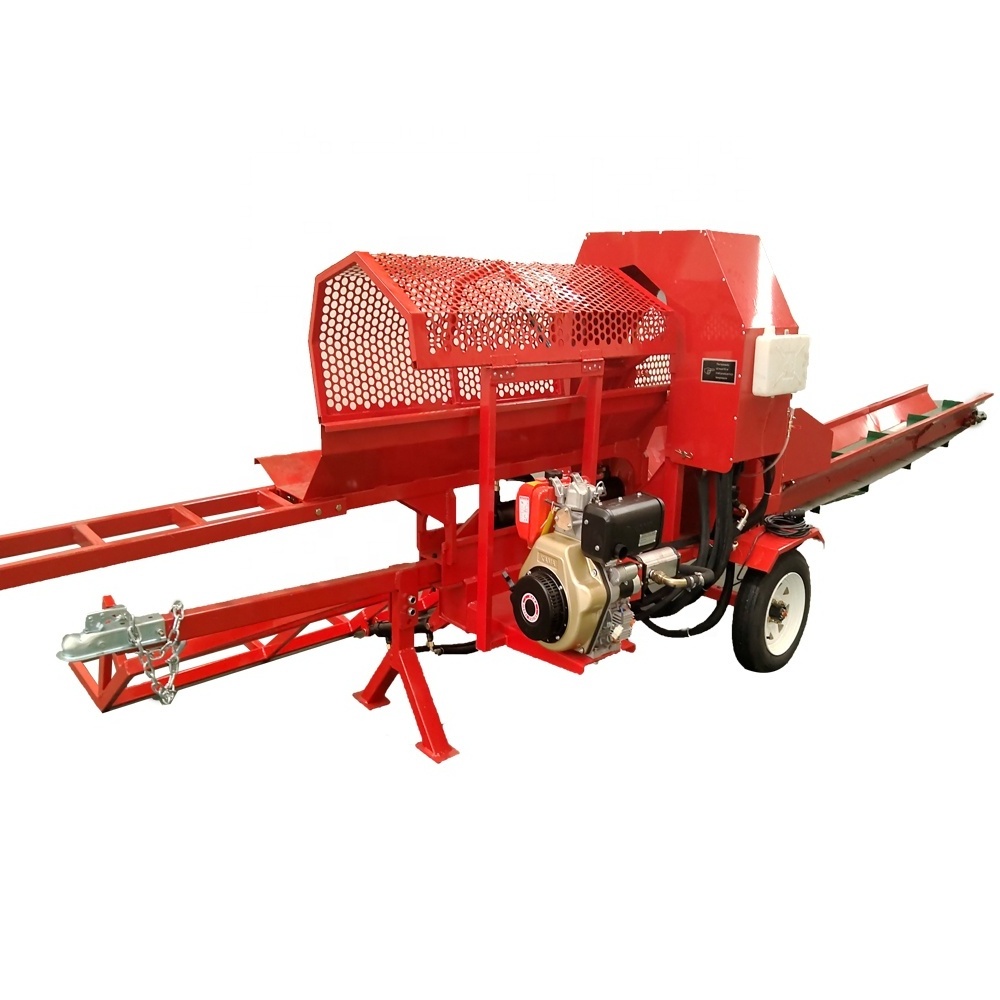

PRODUCT DESCRIPTION
Key Configuration
Model : BRTN 22T250
Engine power : 17 HP
Max splitting force : 22 ton
Max log diameter : 25cm (10-Inch)
Max log length : 6m (20FT)
Model : BRTN 22T250
Engine power : 17 HP
Max splitting force : 22 ton
Max log diameter : 25cm (10-Inch)
Max log length : 6m (20FT)
Product Paramenters
|
Model
|
BRTN 22T250
|
|
Engine Type
|
Petrol engine
|
|
Engine Power
|
17 hp
|
|
Fuel Tank Capacity
|
6.5 L
|
|
Certificate
|
CE, EPA, EuroV
|
|
Max Splitting Force
|
22 ton
|
|
Max log length
|
6m (20ft)
|
|
Max log diameter
|
25cm (10-inch)
|
|
Max length of splitting wood
|
58cm (23-inch)
|
|
Wedge
|
4-way with hydraulic adjust
|
|
Length of Chainsaw (inch)
|
50cm (20-inch)
|
|
Split Cylinder Diameter
|
4-inch
|
|
Min time of sawing down
|
3s
|
|
Adjustable height of wedge
|
15cm
|
|
Max lifting weight of wood
|
400kg
|
|
Console
|
5-handle, 14-Directional
|
|
Hydraulic Oil Pump Flux
|
16 gpm
|
|
Hydraulic Oil Tank Capacity
|
42 L
|
|
Ram speed / hydraulic cycle
|
6s
|
|
Feedout conveyor length
|
3m
|
|
Feedin conveyor length
|
2.5m
|
|
Tyre size
|
4.8-12
|
|
Package size
|
2250*1350*1350mm
|
|
N./G. weight
|
880/980kg
|
Details Images
Engine
Honda engine is optional
Stihl Saw chain
Stihl saw bar is optional
Wedge
6-way, 8-way are optional
Conveyor
Adjustment with remote control optional
Console
Easy and simple operation.
Log feedin system
Durable and efficient
Clamp
Hood
Providing fair protection.
Towbar
Easy and convenient for movement
Tyre
Durable
Our Advantages
Product Advantages
1. Process long logs quickly
2. Easy wedge adjustments
3. Great for remote areas
4. Set this machine up in minutes, so moving to another location can be achieved quickly and easily
5. Self-loader or log deck for increasing production, saving time
6. Cut, split and load or feed a log at the same time
7. One man operation, with simple controls and safe operation
8. 2 years warranty
9. engineer support
1. Process long logs quickly
2. Easy wedge adjustments
3. Great for remote areas
4. Set this machine up in minutes, so moving to another location can be achieved quickly and easily
5. Self-loader or log deck for increasing production, saving time
6. Cut, split and load or feed a log at the same time
7. One man operation, with simple controls and safe operation
8. 2 years warranty
9. engineer support
Related Products
Features&Warranty
1. Certification: CE, EPA, ISO.
2. 2-year warranty.
3. Machine testing before shipping.
4. Customization accepted.
5. We own our factory and can supply the machines with competitive price.
2. 2-year warranty.
3. Machine testing before shipping.
4. Customization accepted.
5. We own our factory and can supply the machines with competitive price.
PACKING & DELIVERY
PACKAGE: Iron PALLETS with PE films
Port: Qingdao
Delivery date: Shipment within 20 days after receiving the deposit.
Port: Qingdao
Delivery date: Shipment within 20 days after receiving the deposit.
