Quick Details
-
Model Number:
-
AT3051TG
-
Power Supply:
-
24 V DC
-
Current Output:
-
4 - 20 mA ,Hart Protocol
-
Accuracy:
-
+/- 0.1%
-
Range:
-
0~100MPa
-
Electric interface:
-
1/2''NPT, M20*1.5
-
Process connection:
-
1/4''NPT or 1/2''NPT, or flange
-
Type:
-
Capacitance Pressure Transmitter
-
Product Name:
-
digital pressure transmitter
-
Certification:
-
ATEX/SIL3/CE/SIL3/ISO9001
-
Application:
-
Water Oil Air Pressure Measurement
Quick Details
-
Warranty:
-
one year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AUTO
-
Model Number:
-
AT3051TG
-
Power Supply:
-
24 V DC
-
Current Output:
-
4 - 20 mA ,Hart Protocol
-
Accuracy:
-
+/- 0.1%
-
Range:
-
0~100MPa
-
Electric interface:
-
1/2''NPT, M20*1.5
-
Process connection:
-
1/4''NPT or 1/2''NPT, or flange
-
Type:
-
Capacitance Pressure Transmitter
-
Product Name:
-
digital pressure transmitter
-
Certification:
-
ATEX/SIL3/CE/SIL3/ISO9001
-
Application:
-
Water Oil Air Pressure Measurement

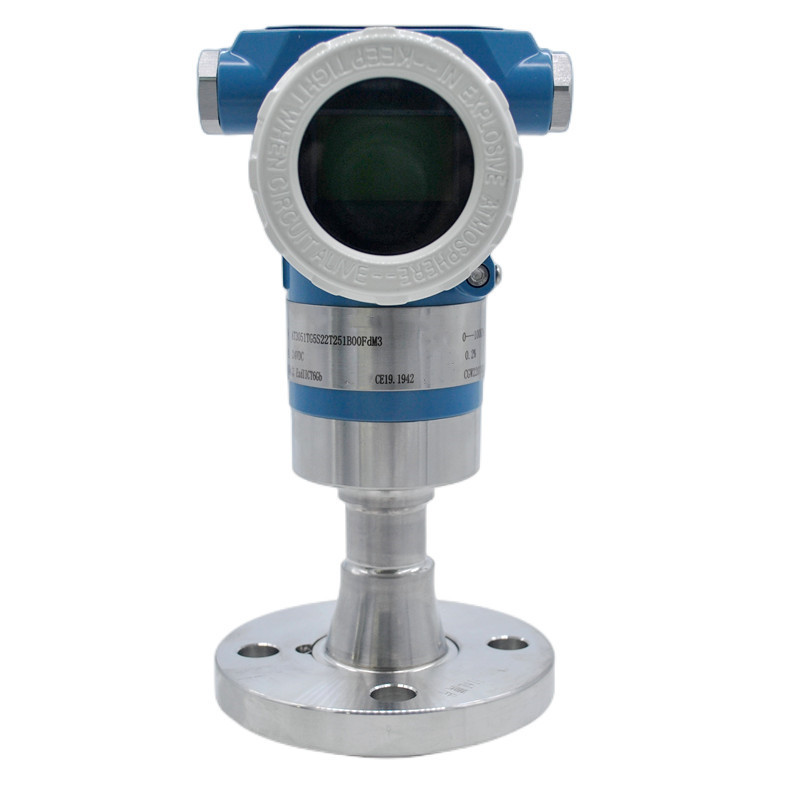

Digital Pressure transmitter
I
ntroduction
AT3051TG(TA) series is a digital pressure transmitter designed for industrial pressure measurement applications. The AT3051TG(TA)
offer configurations for gauge pressure, absolute
pressure and vacuum including integrated solutions for industrial applications.
Features:
*Updating time of output current in 90 ms
*Improved performance, increased accuracy and greater stability
*Two years stability of 0.15%
*0.1% accuracy
*Parameter setting by keypad directly
*4-20 mA output plus direct digital HART communication
*Automatic zero calibration by press-button
*Explosion proof and weather proof housing
|
Item
|
Code
|
Specification
|
|
|
AT3051TG
|
|
Gauge Pressure Transmitter
|
|
|
AT3051TA
|
|
Absolute Pressure Transmitter
|
|
|
Measurement Range
|
3
|
0-1.5~7.5 Kpa
|
|
|
|
4
|
0~37.4 Kpa
|
|
|
|
5
|
0~186.8 Kpa
|
|
|
|
6
|
0~690 Kpa
|
|
|
|
7
|
0~2068 Kpa
|
|
|
|
8
|
0~6890 Kpa
|
|
|
|
9
|
0~20680 Kpa
|
|
|
|
0
|
0~41370 Kpa
|
|
|
Output
|
S
|
4-20mA, HART Protocol, Linear output
|
|
|
Diaphragm Material
|
2
|
Stainless Steel 316L
|
|
|
|
3
|
Hastelloy C
|
|
|
Fill Fluid
|
2
|
Silicone Oil
|
|
|
|
2
|
Fluorine oil
|
|
|
Process Connection
|
D
|
1/2'' NPT F
|
|
|
|
A
|
M20*1.5
|
|
|
|
B
|
1/2'' NPT M
|
|
|
|
C
|
1/2'' G
|
|
|
|
D
|
Customizable
|
|
|
Cable Entry
|
1
|
M20*1.5
|
|
|
Mounting Bracket
|
B00
|
None
|
|
|
|
B15
|
Tube-type Flat Bracket (carbon steel)
|
|
|
|
B16
|
Wall mounting bracket (carbon steel)
|
|
|
|
B17
|
Tube-type Flat Bracket (stainless steel)
|
|
|
|
B18
|
Wall mounting bracket (stainless steel)
|
|
|
Optional
|
d
|
Intrinsically safe type, Flameproof (Exd IIC T4~T6)
|
|
|
|
i
|
Intrinsically safe (Exia IIC T4~T6)
|
|
|
|
M3
|
LCD display
|
|
|
|
K1
|
Degreasing treatment
|
|
|
|
L1
|
Hanging tag
|
|
|
|
5C6
|
Lightning protection
|
|
Production Line
Pressure Transmitter ready for delivery
