Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KAISHAN
-
Dimension(L*W*H):
-
858*450*699 mm
-
Weight:
-
185
-
Rated power/speed:
-
24 HP/2200 r/min
-
Marketing Type:
-
New Product 2023
-
Key Selling Points:
-
Energy efficiency
-
Type:
-
Horizontal Four-stroke
-
Travelling speed:
-
95 mm*115 mm
-
Total Piston Displacement:
-
0.815
-
Calibration speed:
-
2200
-
Fuel consumption rate:
-
245 g/kw*h
-
Cooling method:
-
Water-cooled evaporation, condensing gas cooling
-
Lubrication method:
-
Pressure and splash compound type
-
Starting method:
-
Hand-cranked incremental speed start (electric start)
-
Product name:
-
Diesel engine
-
Application:
-
Engineering Machinery
Quick Details
-
Displacement:
-
1.19454L
-
Emission Standard:
-
Other
-
Power:
-
11 KW, 12.1 KW, 9.7 KW, 13.2 KW, 14.7 KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KAISHAN
-
Dimension(L*W*H):
-
858*450*699 mm
-
Weight:
-
185
-
Rated power/speed:
-
24 HP/2200 r/min
-
Marketing Type:
-
New Product 2023
-
Key Selling Points:
-
Energy efficiency
-
Type:
-
Horizontal Four-stroke
-
Travelling speed:
-
95 mm*115 mm
-
Total Piston Displacement:
-
0.815
-
Calibration speed:
-
2200
-
Fuel consumption rate:
-
245 g/kw*h
-
Cooling method:
-
Water-cooled evaporation, condensing gas cooling
-
Lubrication method:
-
Pressure and splash compound type
-
Starting method:
-
Hand-cranked incremental speed start (electric start)
-
Product name:
-
Diesel engine
-
Application:
-
Engineering Machinery
Products Description

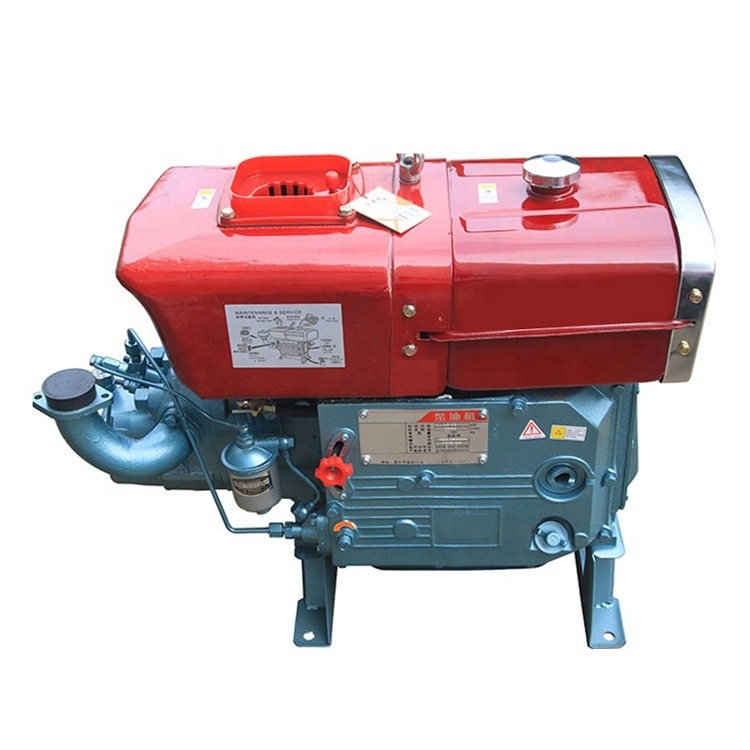

Diesel Generator
Technical parameters
|
Model
|
ZS1110
|
ZS1115
|
|
|
Weight of complete machine
|
190 KG
|
190 KG
|
|
|
Combustion chamber method
|
Direct injection type
|
Direct injection type
|
|
|
Cylinder bore*stroke(mm)
|
110*115
|
115*115
|
|
|
Total piston displacement
|
1.093
|
1.194
|
|
|
Rated power(KW)
|
13.2
|
14.7
|
|
|
Maximum power(KW)
|
14.6
|
16.2
|
|
|
Rated speed
|
2200
|
2200
|
|
|
Fuel consumption rate(g/KWh)
|
245
|
245
|
|
|
Cooling method
|
Water-cooled evaporation, condensing gas cooling
|
|
|
|
Lubrication method
|
Pressure and splash compound type
|
|
|
|
Starting method
|
Hand-cranked incremental speed start (electric start)
|
|
|
|
Model
|
ZS1125
|
ZS1130
|
|
|
Weight of complete machine
|
215 KG
|
215 KG
|
|
|
Combustion chamber method
|
Direct injection type
|
Direct injection type
|
|
|
Cylinder bore*stroke(mm)
|
125*120
|
130*120
|
|
|
Total piston displacement
|
1.473
|
1.593
|
|
|
Rated power(KW)
|
18.3
|
20.1
|
|
|
Maximum power(KW)
|
20.1
|
22.1
|
|
|
Rated speed
|
2200
|
2200
|
|
|
Fuel consumption rate(g/KWh)
|
245
|
245
|
|
|
Cooling method
|
Water-cooled evaporation, condensing gas cooling
|
|
|
|
Lubrication method
|
Pressure and splash compound type
|
|
|
|
Starting method
|
Hand-cranked incremental speed start (electric start)
|
|
|
