Volt：220V,380V or customized
Wattage：300w or customized
Wire length：1m，300mm or customized
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Dimension(L*W*H):
-
customized
-
Weight:
-
3 KG
-
Working Temperature Range:
-
0 - 200 ℃
-
Working temperature:
-
150℃
-
Voltages Available:
-
12v/ 24v/ 36v/ 110v/220v/ 240v/ 380v
-
Diameter Tolerance:
-
-0.02mm-- -0.06mm
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Dimension(L*W*H):
-
customized
-
Weight:
-
3 KG
-
Working Temperature Range:
-
0 - 200 ℃
-
Working temperature:
-
150℃
-
Voltages Available:
-
12v/ 24v/ 36v/ 110v/220v/ 240v/ 380v
-
Diameter Tolerance:
-
-0.02mm-- -0.06mm
Product Description

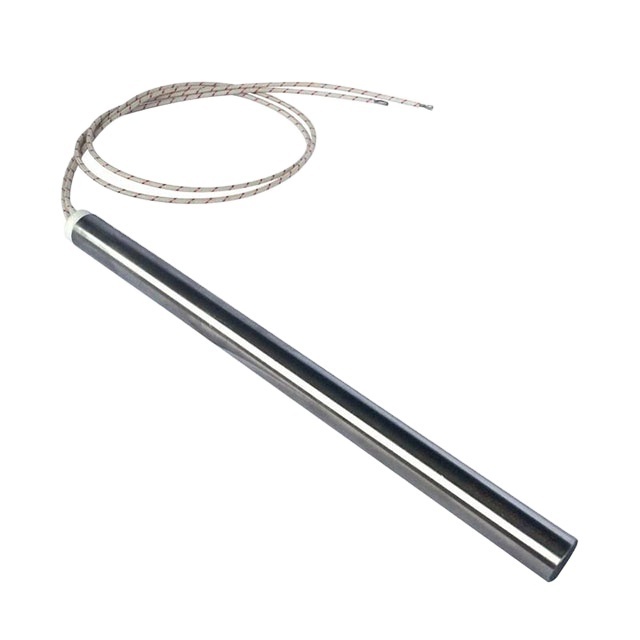

Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations,wattage and voltage ratings.
Specification
|
Voltages available
|
380V,240V, 220V,110V,36V,24V or 12V
|
|
Resistance tolerance
|
+10%, -5%
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Standard Cold Size
|
5-10mm
|
|
Internal thermocouple
|
type J or K
|
|
Thermocouple Location
|
Disc End, Sheath, Center of Heater
|
|
Diametre
|
from 3.0mm to 30mm
|
|
Outer Sheath Material
|
Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840
|
Cartridge heater for water
size：customized
Features&Attentions
A. Nickel chromium resistance wire ensures even, efficient distribution of heat to sheath.
B. Magnesium oxide insulation of specific grain and purity results in high dielectric strength and faster heat-up.
C.
According to different use requirements,choose the grade of heating wire,magnesium rod and
pipe
D. Do not pull or bend the wire forciby.
E. The vicinty of the wire should be controlled below 220℃.
Product Images
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our transportations
Express
Shipping
Air
Packing & Delivery
Packaging Details : Carton or wooden cases
Port : Shanghai,China
