Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WEICHUANG
-
Model Number:
-
JIT001
-
Color:
-
clear, Translucent
-
Product Name:
-

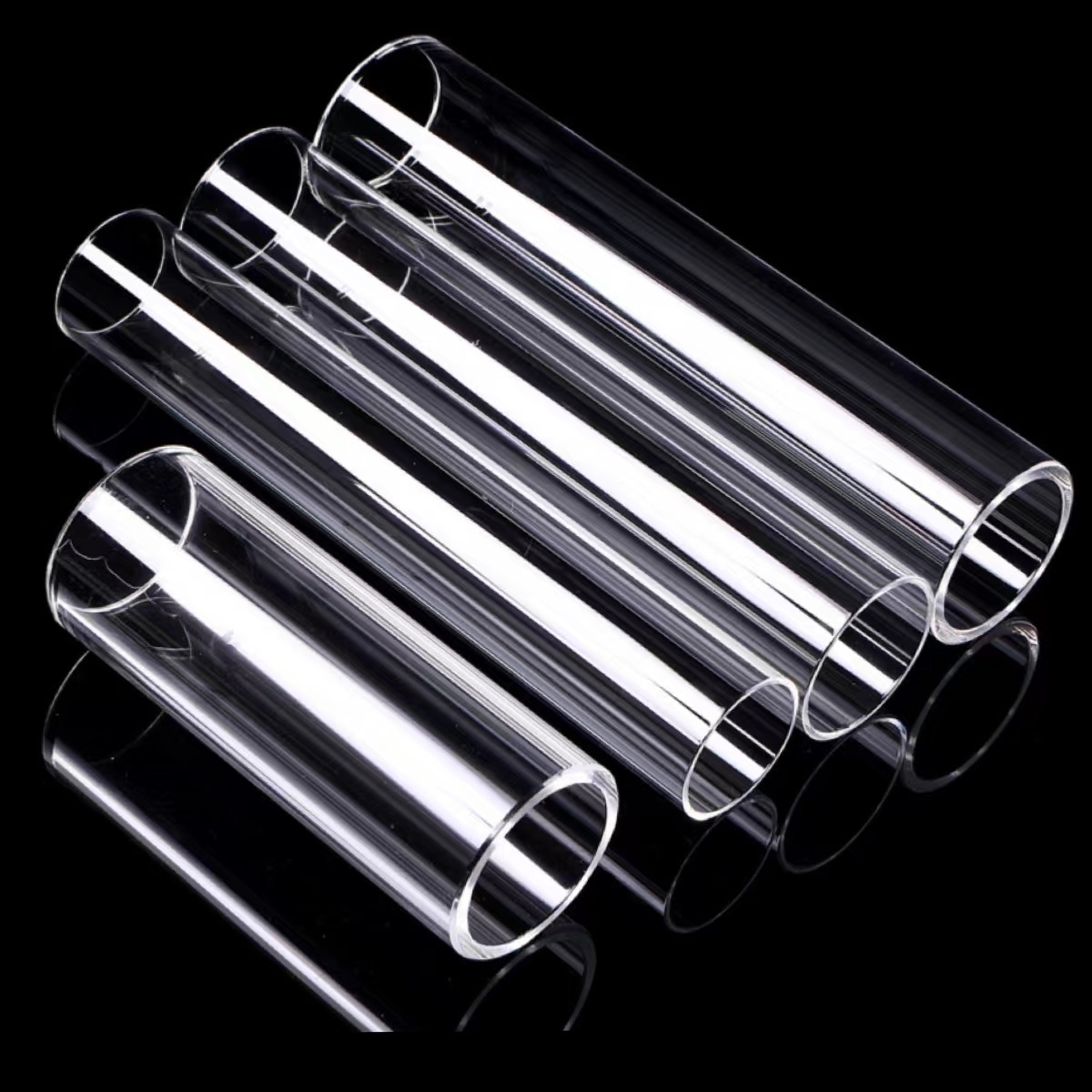

Clear Quartz Glass Tube
-
Material:
-
99.99% Pure Quartz
-
Size:
-
Client Requirement
-
Length:
-
100mm-2500mm
-
Density:
-
2.2g/cm3
-
Work Temperature:
-
1100
-
Softening Point:
-
1730°C
-
Annealed point:
-
1180
-
Edges Treatment:
-
Fine Polished Edge,Rough Edges and customized
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
Solar Optical Instrument & Industry
-
Outside Diameter:
-
1-500
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WEICHUANG
-
Model Number:
-
JIT001
-
Color:
-
clear, Translucent
-
Product Name:
-
Clear Quartz Glass Tube
-
Material:
-
99.99% Pure Quartz
-
Size:
-
Client Requirement
-
Length:
-
100mm-2500mm
-
Density:
-
2.2g/cm3
-
Work Temperature:
-
1100
-
Softening Point:
-
1730°C
-
Annealed point:
-
1180
-
Edges Treatment:
-
Fine Polished Edge,Rough Edges and customized
Product Description
Specification & Properties
|
Round Tpye
|
Diameter: 1mm-500mm;
Thickness: 0.5mm-500mm. |
|
Rectangle Tpye
|
Length: 5mm-2000mm;
Width: 5mm-800mm; Thickness: 0.5mm-100mm |
|
Density
|
2.2g/cm3
|
|
Compressive strength
|
1100Mpa
|
|
Young's modulus
|
72000Mpa
|
|
Modulus of rigidity
|
31000Mpa
|
|
Mohs hardness
|
5.5~6.5
|
|
Transformation point
|
1280°C
|
|
Softening Point
|
1730°C
|
|
Annealing point
|
1180°C
|
|
Specific heat (20 ~ 350 °C)
|
670J/kg.°C
|
|
Thermal conductivity (20 °C)
|
1.4W/m.°C
|
|
Index of refraction
|
1.4585
|
|
Thermal processing temperature
|
1750~2050°C
|
|
Short-term working temperature
|
1400°C
|
|
Long-term working temperature
|
1100°C
|
|
Strain
|
1270 C Fused The Quartz Glass Brick
|
|
Electrical Resistivity: 1000℃
|
1x106 Ω. cm
|
|
PPM grade
|
Controlled 10/20/100 PPM
|
|
Packing
|
Wooden case
|
Advantage
1. High purity: SiO2 >99.99%
2. JGS1, JGS2, JGS3
3. Excellent chemical performance for acid resistance and alkali resistance
4. No air bubble no air line
5. High temperature resistance
6. Excellent electrical insulator
7. ISO 9001 Certification
8. We can accept customized according to your requirement.
2. JGS1, JGS2, JGS3
3. Excellent chemical performance for acid resistance and alkali resistance
4. No air bubble no air line
5. High temperature resistance
6. Excellent electrical insulator
7. ISO 9001 Certification
8. We can accept customized according to your requirement.
