Quick Details
-
Filling Accuracy:
-
±0.03Mpa
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kinetic
-
Dimension(L*W*H):
-
1000*590*1000mm
-
Weight:
-
380 KG
-
Product name:
-
Aerosol filling machine
-
Production capacity:
-
3000-4000cans/day
-
Air consumption:
-
1.0(m3/min)
-
Max Gas volume(ml):
-
100-1000ml
-
Gas filling accuracy:
-
±0.03Mpa
-
Working Pressure:
-
0.65-1.0Mpa
-
Applicable aerosol can diameter:
-
35-80mm
-
Applicable aerosol can height:
-
80-350mm
-
Applicable Gas:
-
Oxygen, compressed air, nitrogen, CO2 (Oil-free)
-
Function:
-
canned air filling
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Wood, lighter gas filling machine
-
Filling Material:
-
Gas Liquid
-
Filling Accuracy:
-
±0.03Mpa
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kinetic
-
Dimension(L*W*H):
-
1000*590*1000mm
-
Weight:
-
380 KG
-
Product name:
-
Aerosol filling machine
-
Production capacity:
-
3000-4000cans/day
-
Air consumption:
-
1.0(m3/min)
-
Max Gas volume(ml):
-
100-1000ml
-
Gas filling accuracy:
-
±0.03Mpa
-
Working Pressure:
-
0.65-1.0Mpa
-
Applicable aerosol can diameter:
-
35-80mm
-
Applicable aerosol can height:
-
80-350mm
-
Applicable Gas:
-
Oxygen, compressed air, nitrogen, CO2 (Oil-free)
-
Function:
-
canned air filling

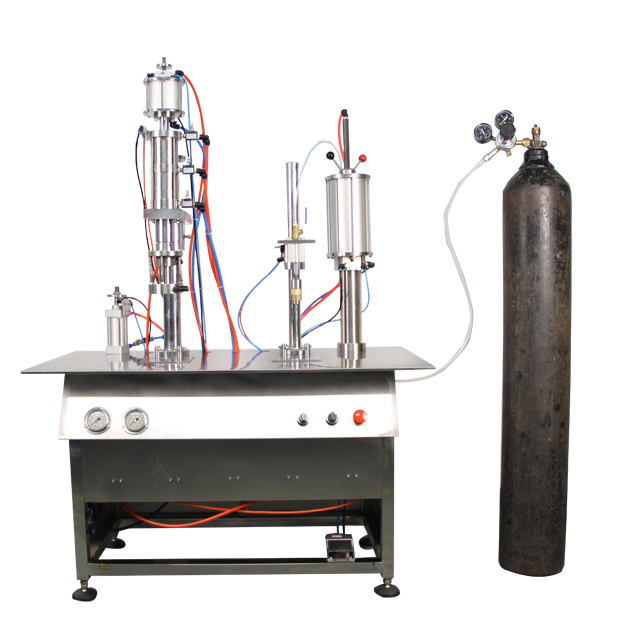

Butane gas/LPG gas refilling machine consists of three units: vacuuming(pneumatic vacuum generator) + crimping + one or two gas fillers. We could design them in one working table or two separate working tables, double aeration system is optional to improve efficiency.
Butane gas refilling equipment is pneumatic, using the compressed air as power, no electricity, safe, reliable, and widely used for filling butane gas cartridge alp cooker, cassette gas and mini cooker filling .
160DB butane gas cartridge filling machine
This equipment is pneumatic, uses the compressed air as power, no electricity, safe, reliable, and widely used for filling butane gas cartridge alp cooker, cassette gas and mini cooker filling
We design 1 vacuum and 1 crimping on one table , the 2 gases fillers in one table. For our experience, the vacuum and crimp speed will faster than gas filler, “double gas filling system” can improve the production rate.
|
Production capacity
|
3000-5000cans/day
|
Air consumption
|
0.8 m³/min
|
|
Max Gas volume
|
Max 500ml
|
Applicable aerosol can diameter
|
35-65mm
|
|
Gas filling accuracy
|
≤±1%
|
Applicable aerosol can height
|
70-330mm
|
|
Working Pressure
|
0.65-1.0Mpa
|
Available valve
|
1”(25.4mm) gas stove valve
|
This machine is dedicated to fill various kinds of cassette can, refrigerant can and altitude gas can, widely used in catering, hotel and outdoor travel, etc. Butane gas refilling equipment has small-occupied area and simple operation, belongs to economical aerosol production equipment.And a water-bath leak detector is optional to ensure safety.
