Heavy Duty Fiberglass Pultruded Profile FRP /GRP Pultrusion Grating/Flooring/Decking

FOB Reference Price: Get Latest Price

≥500 Square meters

US $18

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Dingchang

Model Number:: GP-04

Surface Treatment:: sand blast/Smooth/Mat/Paint or Customer request

Product name:: FRP /GRP Pultrusion Grating

Material:: fiber reinforced polymer

Color:: Customization

Keywords:: FRP /GRP Pultrusion Grating

Feature:: High Strength

Type:: FRP Composite Sheet

Thickness:: 25,38,50

Usage:: Platform

Packing:: Wooden pallet ,Steel pallet or custom-made

Advantage:: Higher Strength Light Weight

Quick Details

Application:: Personnel walkways, catwalks ladders, platforms

Technique:: Pultrusion

Place of Origin:: Shandong, China

Brand Name:: Dingchang

Model Number:: GP-04

Surface Treatment:: sand blast/Smooth/Mat/Paint or Customer request

Product name:: FRP /GRP Pultrusion Grating

Material:: fiber reinforced polymer

Color:: Customization

Keywords:: FRP /GRP Pultrusion Grating

Feature:: High Strength

Type:: FRP Composite Sheet

Thickness:: 25,38,50

Usage:: Platform

Packing:: Wooden pallet ,Steel pallet or custom-made

Advantage:: Higher Strength Light Weight

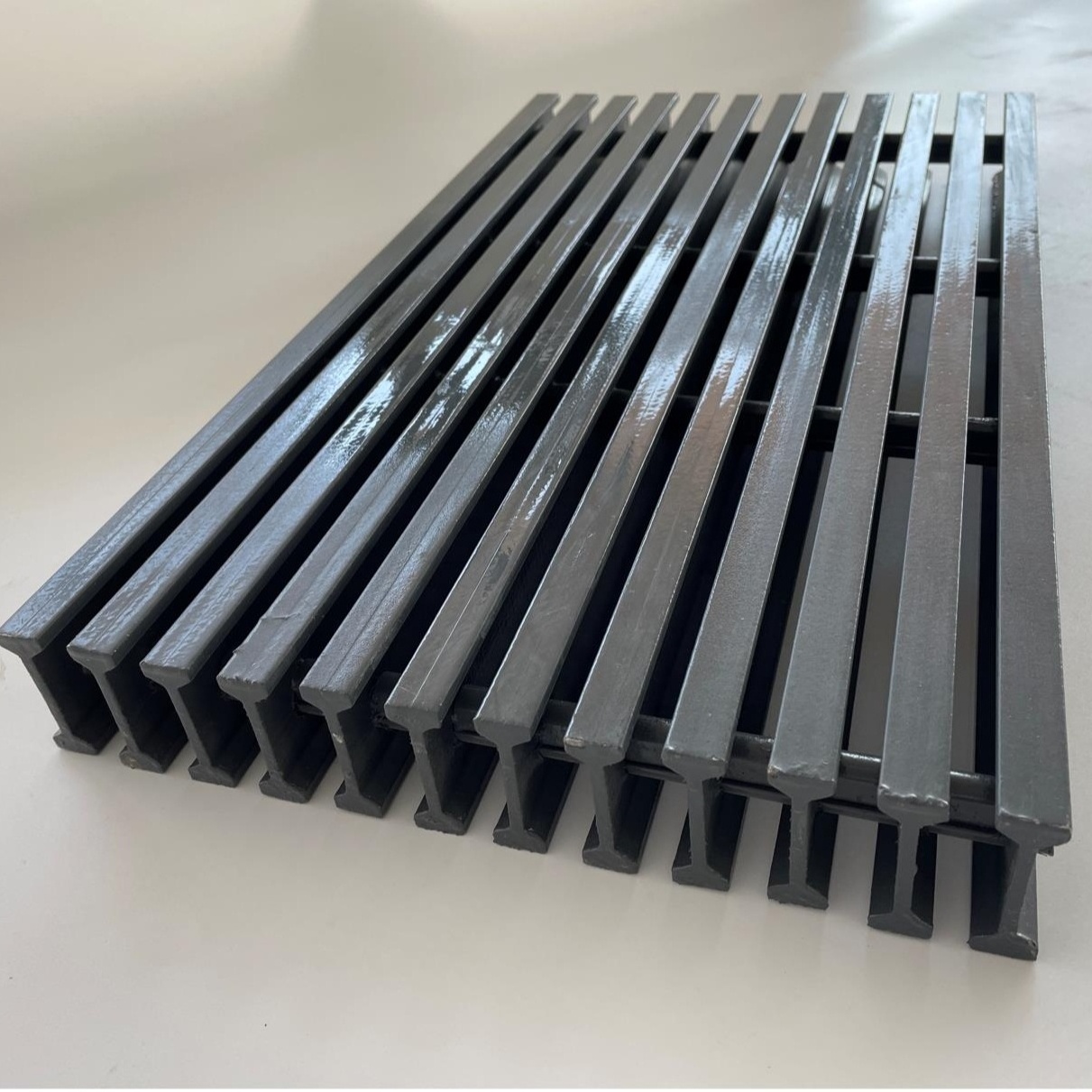

FRP/GRP PULTRUDED GRATING

– Heavier Loads & Longer Spans
FRP/GRP pultruded profiles. It can supply heavier loads and longer spans than comparably sized molded FRP Grating.I bar, T bar or High-Load bars are supplied for demanding applications ranging from ADA-compliant walkways to heavy duty vehicle traffic decking.

Available Surface Type

Smooth surface

Gritted surface

Grating Hold Down Clip

Type C And Type D

The combination of the two is closer than other clip.

Type C And Type D

The combination of the two is closer than other clip.

Features
* Higher loads. Higher loads and longer span than molded grating.
* Lightweight. 1/3 lighter than steel grating.
* Anti-slipping. Gritted, corrugated or convex surface for safe access.
* Flame retardant. UV inhibitor for UV resistant and fire retardant.
* Corrosion resistance. Excellent chemical and harsh condition resistance.
* Extended life. The coated resin surface increases resistance to chemical corrosion and continuous UV exposure.
* Easy fabrication. Lightweight structure is easy to fabricate by simple hand tools.
* Stability. Higher loads and corrosion resistance for maximum stability.

Series	%Open	Approx. Weight kg/㎡ (lbs/sq ft)	Uniform Load _{kN/㎡* (lbs/sq ft)}	Concentrated Load kN/m** (lbs/ft)
Ⅰ-6000 38mm （1-1/2"）	60%	16.8 (3.4)	15.6 (326)	10.9 (749)
Ⅰ-5500 38mm （1-1/2"）	55%	18.9 (3.9)	17.6 (367)	12.3 (842)
Ⅰ-4800 38mm （1-1/2"）	48%	21.5 (4.4)	20.2 (422)	14.1 (967)
Ⅰ-4000 38mm （1-1/2"）	40%	25.4 (5.2)	23.5 (490)	16.4 (1123)
Ⅰ-6000 45mm （1-3/4"）	60%	19.0 (3.9)	25.5 (532)	17.8 (1221)
Ⅰ-5500 45mm （1-3/4"）	55%	21.4 (4.4)	28.7 (599)	20.1 (1374)
Ⅰ-4800 45mm （1-3/4"）	48%	24.4 (5.0)	32.9 (688)	23.0 (1578)
Ⅰ-4000 45mm （1-3/4"）	40%	28.8 (5.9)	38.3 (799)	26.7 (1832)
