HYDRAULIC STATION
Hydraulic integrated system adopts independent control unit.
Convenient maintenance.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
220/380v
-
Weight (T):
-
8000 T
-
Model Number:
-
Y28-100/150
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
Hot Product 2022
-

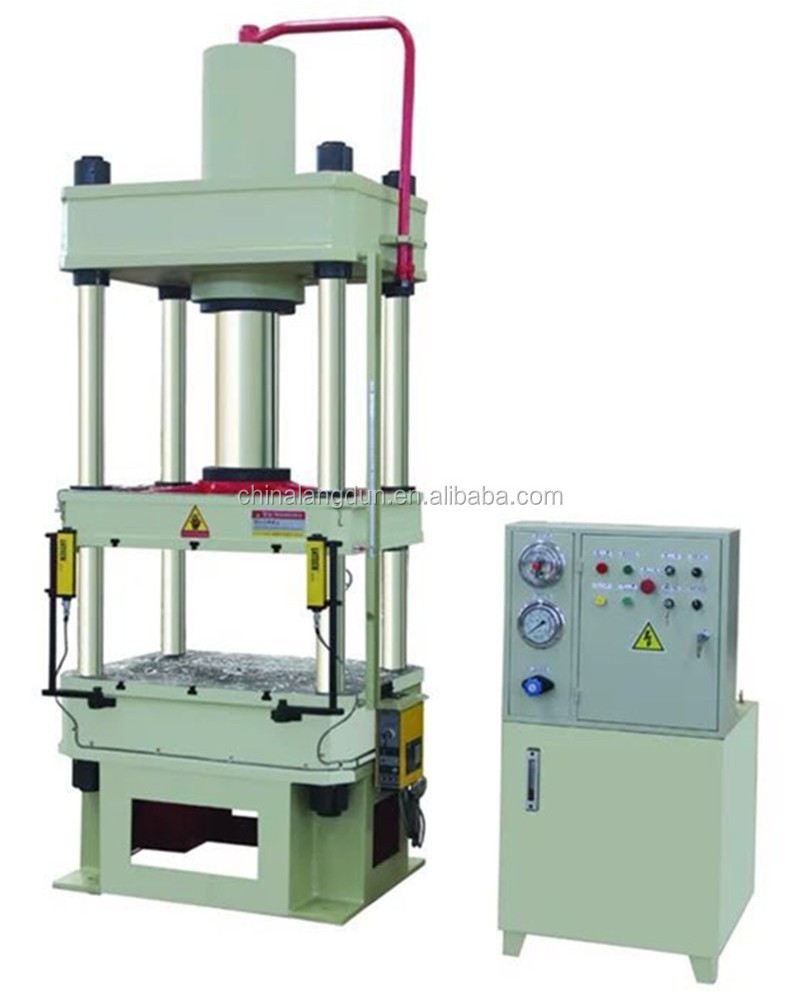

Name:
-
four column hydraulic press
-
Main motor:
-
Simens
-
Circuit Breaker:
-
Schneider
-
Sealing Element:
-
NOK
-
Oil Pump:
-
Quality product, Taiwan
-
PLC:
-
MITSUBISHI, Japan
-
certification:
-
ISO/CE
-
Application:
-
hole punching and metal forming
-
Keyword:
-
Hydryalic Press
-
Color:
-
Costomized
Quick Details
-
Machine Type:
-
Four-column Four-beam Hydraulic Press
-
Slide Stroke (mm):
-
600
-
Return Force (kN):
-
500 kN
-
Place of Origin:
-
China
-
Voltage:
-
220/380v
-
Weight (T):
-
8000 T
-
Model Number:
-
Y28-100/150
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
four column hydraulic press
-
Main motor:
-
Simens
-
Circuit Breaker:
-
Schneider
-
Sealing Element:
-
NOK
-
Oil Pump:
-
Quality product, Taiwan
-
PLC:
-
MITSUBISHI, Japan
-
certification:
-
ISO/CE
-
Application:
-
hole punching and metal forming
-
Keyword:
-
Hydryalic Press
-
Color:
-
Costomized
Products Description
The main performance characteristics: Economical and Practical, Hydraulic control adopts to insert set valve integrated system,decrease let out Point.Movement reliability, durable and long life span, It is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, Can realization manual, Semi-automatic, automatic 3 operate form. Application field : This series of hydraulic presses is suitable for the pressing process of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for the correction, press-fit, plastic products and powder products.
|
Specification
|
|
Unit
|
100T
|
100T
|
|
|
Nominal force
|
|
KN
|
1000
|
1000
|
|
|
Ejecting force
|
|
KN
|
20
|
20
|
|
|
Max. pressure of liquid
|
|
MPa
|
25
|
25
|
|
|
Stroke of slider
|
|
mm
|
400
|
500
|
|
|
Max. opening height
|
|
mm
|
700
|
800
|
|
|
Working table size
|
|
mm*mm
|
800x800
|
800x800
|
|
|
Ejecting stroke
|
|
mm
|
200
|
200
|
|
|
Speed of slider
|
Idle speed
|
mm/s
|
54
|
80
|
|
|
|
Working speed
|
mm/s
|
16-24
|
16-24
|
|
|
|
Return speed
|
mm/s
|
46
|
100
|
|
|
Motor power
|
|
KW
|
7.5
|
7.5
|
|
|
Net weight(KG)
|
|
T
|
2..5
|
2.
|
|
Detailed Description
Hydraulic System:
The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
WORKBENCH
The making way of workbench is finish mill hind burnish first.It welded by full steel plate CO2. the body is tempered and vibrated to ensture that the fuselage never deforms.
PISTON ROD
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury，not easy to scratch.
CARTRIDGE VALVE
SYSTEM
The cartridge valve is inteqrated into the system to reduce leakage points, reliable operation and long service life.
PLC CONTROL SYSTEM OPTIONAL
C
ompared with traditional relays,
1.The PLC has the characteristics of strong control reliability, simple wiring, easy programming, and convenient use.
2. The PLC has the small size, light weight, low power consumption, very power saving.
HYDRAULIC STATION LAYOUT
Compared with the plug-in oil pump,We use the external and horizontal position of the oil pump to reduce the heat generated when the oil is pumped out. The oil rises slowly, and the oil temperature is always controlled within a controllable range of about 55 degrees Celsius, so that the hydraulic components can work at a tolerable temperature and prolong the service life of the machine.
Finished Products
The machine can be heated to produce BMC/SMC material.This machine can stretch and punch metal material.The machine can realize powder pressing and forming.Here are some pictures of the products produced by some of our machines:
