Quick Details
-
Coil Number:
-
1,2,3,4
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KBT
-
Model Number:
-
LZZW-10
-
Rated insulation level:
-
12/42/75kV
-
Installation place:
-
outdoor
-
Pollution class:
-
III class
-
Ambient temperature:
-
-25℃ +45℃
-
Altitude:
-
max 1000m
-
Rated secondary current:
-
5A,1A
-
Accuracy limit factor:
-
ALF=10,15
-
Instrument security factor:
-
FS=10
Quick Details
-
Usage:
-
Measurement Monitoring Protection
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
1,2,3,4
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KBT
-
Model Number:
-
LZZW-10
-
Rated insulation level:
-
12/42/75kV
-
Installation place:
-
outdoor
-
Pollution class:
-
III class
-
Ambient temperature:
-
-25℃ +45℃
-
Altitude:
-
max 1000m
-
Rated secondary current:
-
5A,1A
-
Accuracy limit factor:
-
ALF=10,15
-
Instrument security factor:
-
FS=10
Products Description

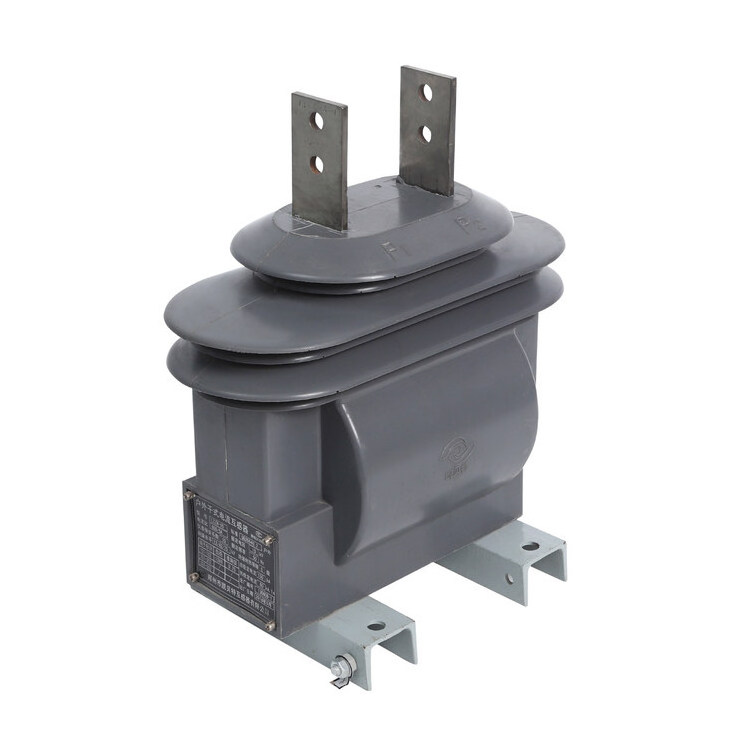

LZZW-10 outdoor current transformer is epoxy resin cast insulation and fully enclosed product. It is suitable for power system with rated frequency of 50Hz or 60Hz and rated voltage of 10kV and below, for energy measurement, current measurement and relay protection.
|
Type
|
Rated primary current（A）
|
Accuracy classes
combination |
Rated output（VA）
|
Rated short-time
Thermal current（kA） |
Rated dynamic current（kA）
|
|
LZZW-10
|
50-300
|
0.2/10P
0.2S/10P 0.2/0.5/10P 0.2S/0.5/10P |
15/30
15/30 15/20/30 15/20/30 |
100In
|
255In
|
|
|
400
|
|
|
45
|
112
|
|
|
500
|
|
|
63
|
130
|
|
|
600
|
|
|
|
|
