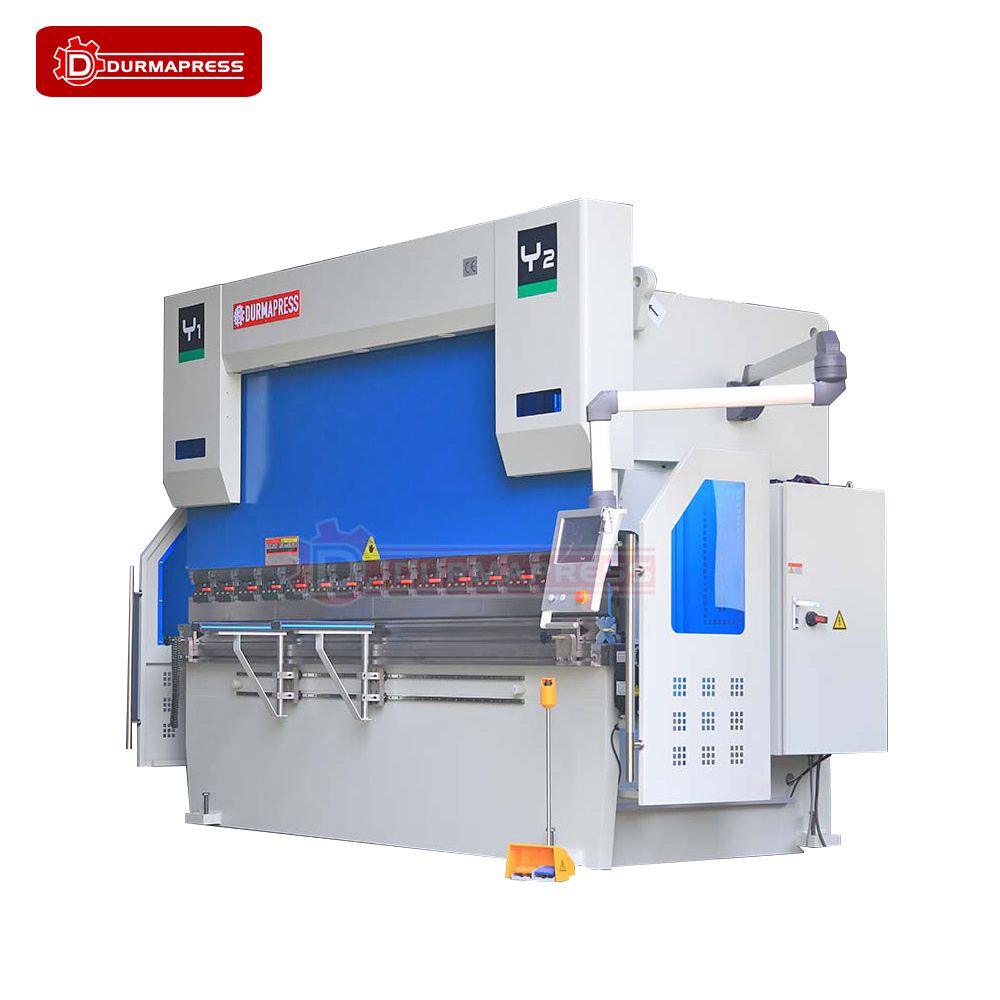

WC67K 100T/3200 bending machine price 3.2m plate CT12 system hydraulic plate bender press brake machine

WC67K 100T/3200 bending machine price 3.2m plate CT12 system hydraulic plate bender press brake machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7499

≥2 Sets

US $6499

≥3 Sets

US $5499

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Throat Depth (mm):: 350 mm

Width of Working Table (mm):: 3200 mm

Dimension:: 3740X1650X2355mm

Place of Origin:: Anhui, China

Brand Name:: DURMAPRESS

Year:: 2024

Weight (KG):: 6500

Motor Power (kw):: 7.5 kw

Name:: Hydraulic Press Brake

CNC Control System:: E21 System

Main Motor:: 7.5kw

Type:: Hydraulic Bending Tools

Material:: Stainess Steel

Usage:: Metal Sheet Bending

Throat Depth:: 350mm

USE FOR:: Electric Bending Machine

Weight:: 6500kg

Nominal Pressure (kN):: 1000 kN

Quick Details

Machine Type:: Synchronized

Length of Working Table (mm):: 3200 mm

Slider Stroke (mm):: 150 mm

Throat Depth (mm):: 350 mm

Width of Working Table (mm):: 3200 mm

Dimension:: 3740X1650X2355mm

Place of Origin:: Anhui, China

Brand Name:: DURMAPRESS

Year:: 2024

Weight (KG):: 6500

Motor Power (kw):: 7.5 kw

Name:: Hydraulic Press Brake

CNC Control System:: E21 System

Main Motor:: 7.5kw

Type:: Hydraulic Bending Tools

Material:: Stainess Steel

Usage:: Metal Sheet Bending

Throat Depth:: 350mm

USE FOR:: Electric Bending Machine

Weight:: 6500kg

Nominal Pressure (kN):: 1000 kN

Product Description

CNC Press Brake

The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

Main Configuration

CT12 CNC Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)

CT12 System

*Large touch screen ,bright color, high contrast.

*Convenient interface, clear display and large icon buttons.

* Visual, friendly and easy to operate man-machine interface.

*Perfect programming can improve the efficiency of batch multi-step bending.
*Online help and pop-up prompts make the software interface very friendly.
*Using PCS or laptops, data can be upgraded and transmitted through wireless software.
*USB interface transfers/backs up data.
*Support multiple languages

Durmapress ® Quick Clamp System
Advantage:

• Safe and fast tool change
• Can be used without modifying Europe type punches
• Red Button- Release the Punch Toolings easily
• Front clamp - vertical tool change
• Rear clamp - horizontal tool change

DURMAPRESS Express Crowning System

The Express Crowning system from DURMAPRESS® helps control deflection or "the canoe effet" in press brake applications over 4 ft
longwith quick, repeatable crowning that is precisely adjusted by a basic hand crank and digital readout or an electric motor driven by the CNC machine control.

• Durable body hardened to 28-32 RCS.
• Mounting available for all types of press brakes: OEM bolt down design

Axes	X1	X2	R1	R2	Z1	Z2
Stroke(mm)	750	750	200	200	Under Request	Under Request
Speed(mm/s)	500	500	500	500	2200	2200
Accuracy (mm)	0.01	0.01	0.01	0.01	0.05	0.05
Type of motor	Servo Drive	Servo Drive	Servo Drive	Servo Drive	Servo Motor	Servo Motor
Mechanical System	Ball Screw	Ball Screw	Ball Screw	Ball Screw	Rack	Rack

View more products,you can click product keywords...

Main Products
Press Brake	Shearing Machine	Fiber laser Cutting Machine
CNC V Grooving machine	Ironworker	notching machine
power press machine	roof forming machine	press brake die

Recommend Products

Certifications

Customer feedback

Factory Profile

FAQ

Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .

Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.

Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with
postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable

Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.

Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.

Q:Do you offer teaching & training ?
A:Training at supplier's plant

Our Service

1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician
to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 5 years.
