Quick Details
-
Model Number:
-
F685
-
Frequency Band:
-
900 2100Mhz
-
Product name:
-

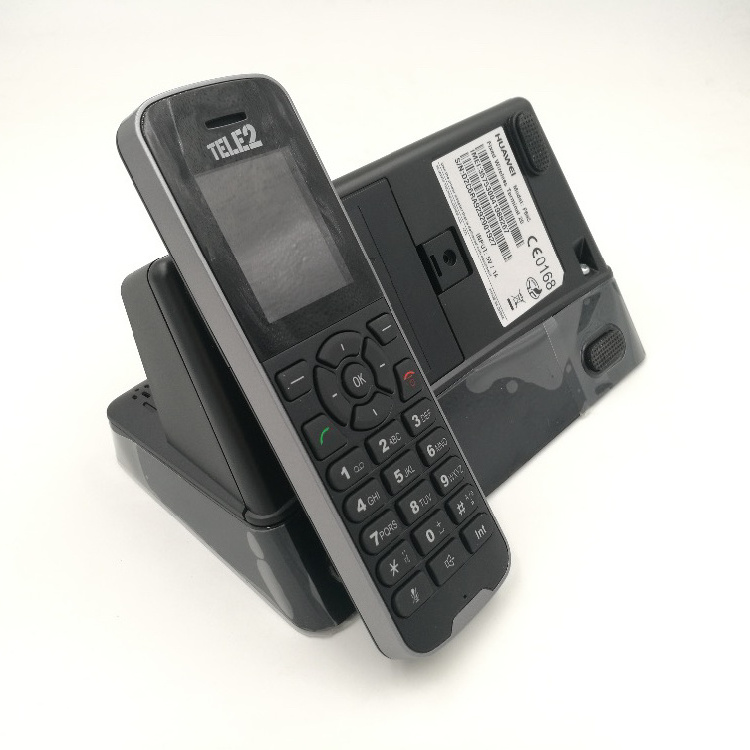

3G DECT Digital Cordless Phone
-
Color:
-
Black
-
Language:
-
Multi-language
-
Power supply:
-
AC 100V-240V / DC 5V/1A
-
Item Base:
-
Handset
-
Supports:
-
voice service (FR, HR, EFR or AMR).
-
Battery:
-
1000mAh Li-ion Battery
-
WCDMA/GSM/GPRS:
-
2100/900Mhz GSM 1800/900mhz
-
Size:
-
1.8 inches
-
Resolution:
-
128*160 dots matrix
Quick Details
-
Brand Name:
-
Huawei
-
Type:
-
Analog Cordless Phone
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
F685
-
Frequency Band:
-
900 2100Mhz
-
Product name:
-
3G DECT Digital Cordless Phone
-
Color:
-
Black
-
Language:
-
Multi-language
-
Power supply:
-
AC 100V-240V / DC 5V/1A
-
Item Base:
-
Handset
-
Supports:
-
voice service (FR, HR, EFR or AMR).
-
Battery:
-
1000mAh Li-ion Battery
-
WCDMA/GSM/GPRS:
-
2100/900Mhz GSM 1800/900mhz
-
Size:
-
1.8 inches
-
Resolution:
-
128*160 dots matrix
|
Product Name:
|
F685
|
|
Color:
|
Black
|
|
Back up battery:
|
1000mAh
|
|
Function
|
Call-back Function
|
|
Weight::
|
About 350g (include the handset battery)
|
|
Base dimensions (W × D × H):
|
166mm×102mm × 84mm
|
F685-21:TS-9 indoor antenna interface
Indicator
Item Base Handset Operating status indicator One / Battery indicator One / Signal strength indicator One
Power supply
Item Base Handset AC 100V-240V / DC 5V/1A
Item Base Handset Type NiMH, rechargeable battery Rechargeable, Li-ion Capacity 3.6V, 1000mAh 3.7V,600mAh Typical talk time 3
hours (depending on the network) 12 hours (depending on the network) Typical standby time / 150 hours (depending on the network)
Keypad
Item Base Handset
Shortcut key (3 keys) power on/off key, registration/paging key, function key (14 keys) up/down/left/right scroll key, OK key, left/right soft key, power on/off key, Send key, hands-free key, Clear key, Mute key, Speed dial key, Intercom key
Indicator
Item Base Handset Operating status indicator One / Battery indicator One / Signal strength indicator One
Power supply
Item Base Handset AC 100V-240V / DC 5V/1A
Item Base Handset Type NiMH, rechargeable battery Rechargeable, Li-ion Capacity 3.6V, 1000mAh 3.7V,600mAh Typical talk time 3
hours (depending on the network) 12 hours (depending on the network) Typical standby time / 150 hours (depending on the network)
Keypad
Item Base Handset
Shortcut key (3 keys) power on/off key, registration/paging key, function key (14 keys) up/down/left/right scroll key, OK key, left/right soft key, power on/off key, Send key, hands-free key, Clear key, Mute key, Speed dial key, Intercom key
Number key / Number key: (12 keys) 0-9,
Display Screen
Item Base Handset
Type / TFT
Size / 1.8 inches
Resolution / 128×160 dots matrix
Backlight / Provides backlight for the LCD
Antenna specifications
Signals may be weak in some areas; thus, you can choose whether to use the indoor antenna.
The indoor antenna is an optional accessory, it is suggested put the indoor antenna near the window when using it. The indoor
antenna can be used indoor only.
Name F685-21 F685-20
Standard configuration Built-in antenna
VSWR <3.0
Gain low frequency: >-2dBi
high frequency: >-1dBi
Maximum power 4 W
Input impedance 50Ω
Voice service
Supports the voice service
Voice code: Base:FR, HR, EFR or AMR, Handset: G.726
Dial the recently dialed number
Dial a number from the phone book
Dial a number from the message
Speed dialing
Supports volume adjustment of 5 levels
Supports paging function
Call history
Missed calls: Up to 20 records
Received calls: Up to 20 records
Dialed calls: Up to 20 records
Phone book
The FWT memory: Up to 1000 contacts
The USIM card memory: depend on the USIM card memory
Copy records from the FWT to the USIM card or from the USIM card to the FWT
Base and handset shared phone book
Supports sending and receiving text short message
Application Alarm
Safety setting
Key Guard
FWT lock
PIN code (USIM card dependent)
Supplementary services (Network dependent)
Caller ID display
Call waiting
Ringtone and Prompt
Incoming call prompt
New message prompt
Low battery prompt
Alarm prompt
Key beep
The FWT provides chord ringtones
Built-in 10 ringtones
Power on/off ringtone
Display Screen
Item Base Handset
Type / TFT
Size / 1.8 inches
Resolution / 128×160 dots matrix
Backlight / Provides backlight for the LCD
Antenna specifications
Signals may be weak in some areas; thus, you can choose whether to use the indoor antenna.
The indoor antenna is an optional accessory, it is suggested put the indoor antenna near the window when using it. The indoor
antenna can be used indoor only.
Name F685-21 F685-20
Standard configuration Built-in antenna
VSWR <3.0
Gain low frequency: >-2dBi
high frequency: >-1dBi
Maximum power 4 W
Input impedance 50Ω
Voice service
Supports the voice service
Voice code: Base:FR, HR, EFR or AMR, Handset: G.726
Dial the recently dialed number
Dial a number from the phone book
Dial a number from the message
Speed dialing
Supports volume adjustment of 5 levels
Supports paging function
Call history
Missed calls: Up to 20 records
Received calls: Up to 20 records
Dialed calls: Up to 20 records
Phone book
The FWT memory: Up to 1000 contacts
The USIM card memory: depend on the USIM card memory
Copy records from the FWT to the USIM card or from the USIM card to the FWT
Base and handset shared phone book
Supports sending and receiving text short message
Application Alarm
Safety setting
Key Guard
FWT lock
PIN code (USIM card dependent)
Supplementary services (Network dependent)
Caller ID display
Call waiting
Ringtone and Prompt
Incoming call prompt
New message prompt
Low battery prompt
Alarm prompt
Key beep
The FWT provides chord ringtones
Built-in 10 ringtones
Power on/off ringtone
