Quick Details
-
Place of Origin:
-
Japan
-
Housing Material:
-
Cast Iron
-
Feature:
-
High Rigidity
-
Housing Type:
-
Flange
-
Set screw:
-
M10x1.25
-
Limiting Speed:
-
3000rpm
-
Dynamic Load Rating:
-
43.6KN
-
Static Load Rating:
-
29KN
-
Weight:
-
3.45kg
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Other
-
Brand Name:
-
XRT
-
Model Number:
-
UCF211
-
Place of Origin:
-
Japan
-
Housing Material:
-
Cast Iron
-
Feature:
-
High Rigidity
-
Housing Type:
-
Flange
-
Set screw:
-
M10x1.25
-
Limiting Speed:
-
3000rpm
-
Dynamic Load Rating:
-
43.6KN
-
Static Load Rating:
-
29KN
-
Weight:
-
3.45kg

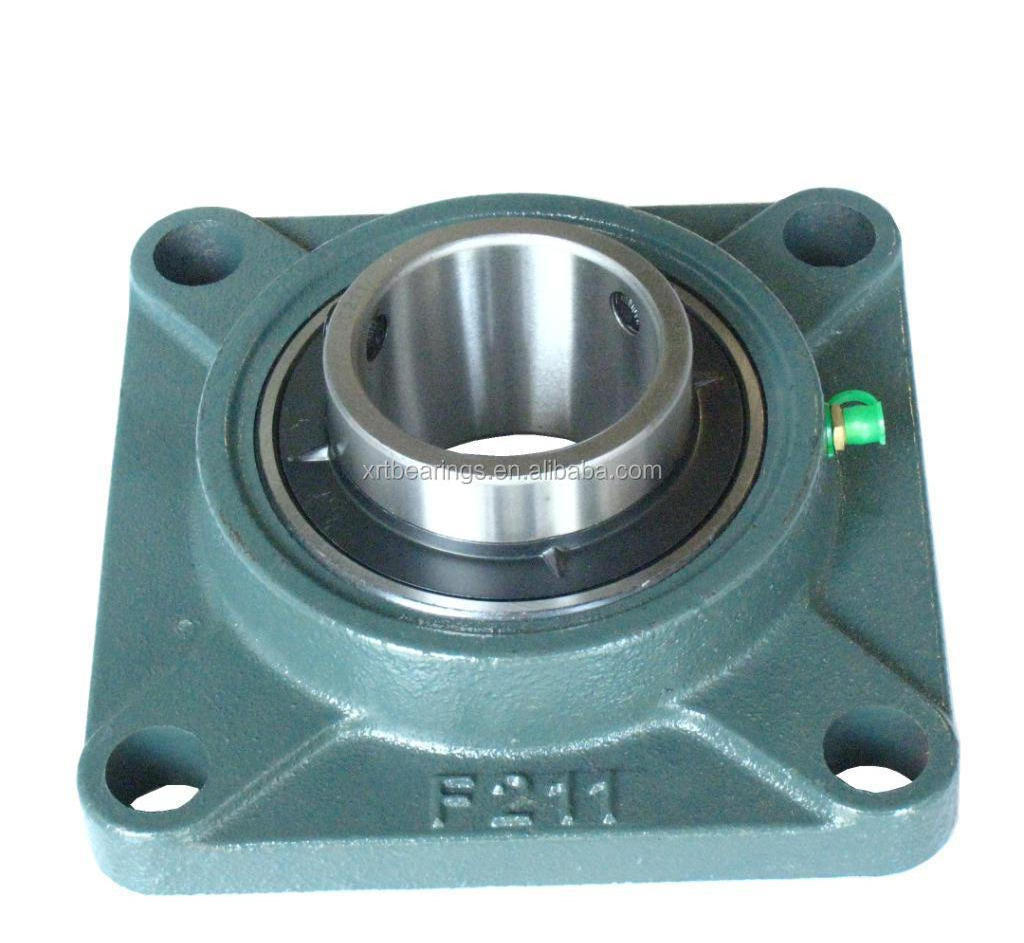

Pillow Block Ball Bearing UCF211 UCF212 UCF213 UCF214 UCF216 UCF217 UCF218 UCF219 UCF220
| Product Name | Pillow Block Ball Bearing UCF211 UCF212 UCF213 UCF214 UCF216 UCF217 UCF218 UCF219 UCF220 |
| Brand | XRT |
| Housing Material | Iron Steel |
| Bore Size | 55mm |
| Outer Diameter-Inner Ring | 70mm |
| Overall Width | 43mm |
| Flange Width | 18mm |
| Width Inner Ring | 55.6mm |
| Overall Length | 162mm |
| Dynamic Load Rating | 43.6KN |
| Static Load Rating | 29KN |
| Limiting Speed | 3000rpm |
| Weight | 3.45kg |
| Application | Machinery |
Description
These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
- Resist high levels of contamination
- Designed for high temperatures and speeds
- Accommodate relatively heavy loads
- Cost-effective
Relative Model
|
UC201 |
UCP201 |
UCF201 |
UCT201 |
UCFL201 |
UCPA201 |
|
UC202 |
UCP202 |
UCF202 |
UCT202 |
UCFL202 |
UCPA202 |
|
UC203 |
UCP203 |
UCF203 |
UCT203 |
UCFL203 |
UCPA203 |
|
UC204 |
UCP204 |
UCF204 |
UCT204 |
UCFL204 |
UCPA204 |
|
UC205 |
UCP205 |
UCF205 |
UCT205 |
UCFL205 |
UCPA205 |
|
UC206 |
UCP206 |
UCF206 |
UCT206 |
UCFL206 |
UCPA206 |
|
UC207 |
UCP207 |
UCF207 |
UCT207 |
UCFL207 |
UCPA207 |
|
UC208 |
UCP208 |
UCF208 |
UCT208 |
UCFL208 |
UCPA208 |
|
UC209 |
UCP209 |
UCF209 |
UCT209 |
UCFL209 |
UCPA209 |
|
UC210 |
UCP210 |
UCF210 |
UCT210 |
UCFL210 |
UCPA210 |
|
UC211 |
UCP211 |
UCF211 |
UCT211 |
UCFL211 |
UCPA211 |
|
UC212 |
UCP212 |
UCF212 |
UCT212 |
UCFL212 |
UCPA212 |
|
UC213 |
UCP213 |
UCF213 |
UCT213 |
UCFL213 |
UCPA213 |
|
UC214 |
UCP214 |
UCF214 |
UCT214 |
UCFL214 |
UCPA214 |
1.Deep groove ball bearings (68series,69series,60series,62series,63series,64series)
2.Tapered roller bearing(320 series,322 series,323 series)
3.Linear bearing
4.Thrust ball bearing(511 series,512 series,513 series)
5.Cylindrical roller bearing(NU10 series,NJ2 Series,N3 series, NN series)
6.Needle roller bearing
7.Angular contact ball bearing(70 series.72 series.73 series.74 series)
8.Spherical roller bearing
9.Thurst roller bearing
10.Spherical ball bearing(230 series,222series,223series)
11.Pillow block bearing(UCP series, UCF series, UCT series, UCFL series)
