Quick Details
-
Model Number:
-
Infrared Human Body Sensor Switch
-
Warranty:
-
Other
-
Type:
-
Touchless
-
Power:
-
Other
-
Sensing Range:
-
3~5M
-
Certification:
-
None
Quick Details
-
Voltage:
-
5~24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Model Number:
-
Infrared Human Body Sensor Switch
-
Warranty:
-
Other
-
Type:
-
Touchless
-
Power:
-
Other
-
Sensing Range:
-
3~5M
-
Certification:
-
None

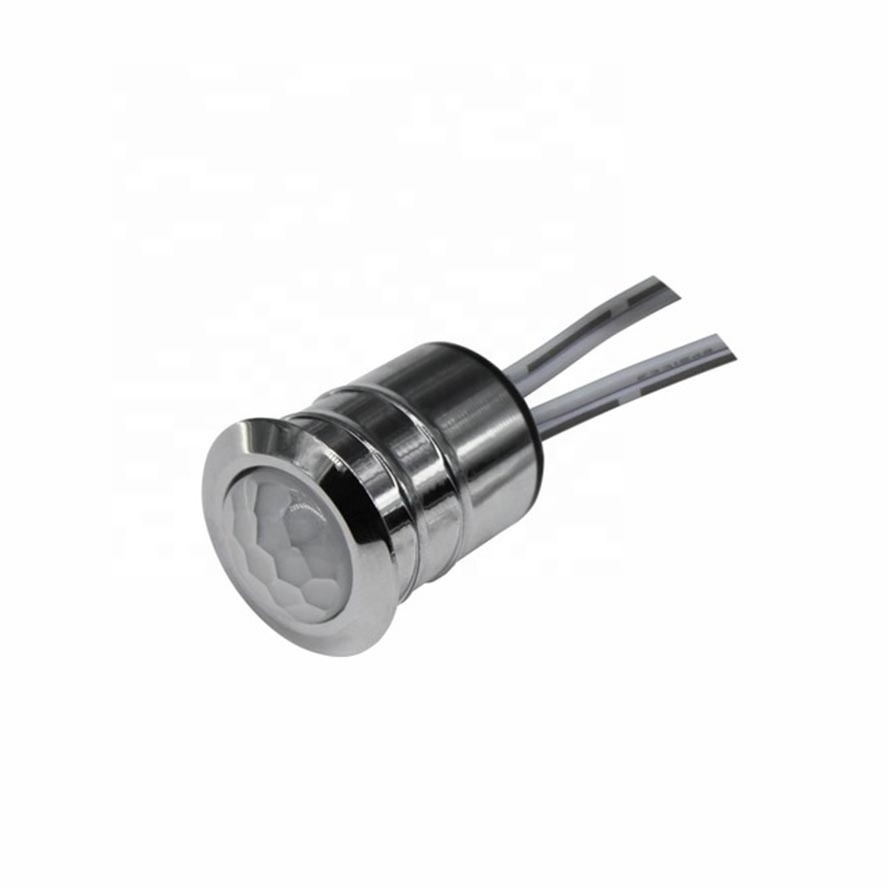

Taidacent 5V 12V 24V Metal Shell Smart Home Touch Hand Sweep Sensor Switch Infrared Human Body Sensor Switch for Wardrobe Door
Product Description
Surface installation: Embedded installation
Small size, high power, people come to gradually turn on the lights, and people walk to turn off the lights
[Product Type] Human Body Sensor Switch
[Shell material] Aviation aluminum alloy
[Input voltage] 5V-24VDC wide voltage
[Output current] 3A
[Load power] Maximum 72W (24VDC)
[Induction distance] 3-5 meters
[Induction angle] 120 degrees (cone)
[Delay time] Default delivery ≤ 35 seconds to accept customization
[Installation method] Embedded
[Aperture size] Diameter 16-18mm
[Ambient temperature] -150 ~ 350
[Product size] 19mmX24mm
[Wire specifications] 1 meter input and output DuPont head
[Light control function] None
[Induction method] People come to light up gradually, people walking delay 35 seconds to turn off the lights.
If the human body has been in the sensing range, the light will turn on
[Scope of application] LED soft light with hard light bar wardrobe light cabinet light
And other intelligent lighting.
Specification
|
item
|
value
|
|
Sensing range
|
120°
|
|
Sensing distance
|
3~5m
|
|
Installation method
|
Surface/Concealed
|
|
Rated voltage
|
5~24V
|
|
Load power
|
60W
|
|
Dimensions
|
Diameter 19mm length 24mm
|
|
Hole distance
|
Concealed 16mm
|
