Quick Details
-
Productivity:
-
170cbm/h, 170M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Chinese Brand
-
Weight:
-
34000 kg
-
Dimension(L*W*H):
-
13120*2500*3990mm
-
Dimension:
-
13120*2500*3990mm
-
Engine:
-
297KW
-
identification:
-
ISO
-
authentication:
-
CE
-
Vertical reach height:
-
48m
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
52m, 48.5M
-
Max. horizontal conveying distance:
-
46m
-
Productivity:
-
170cbm/h, 170M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Chinese Brand
-
Weight:
-
34000 kg
-
Dimension(L*W*H):
-
13120*2500*3990mm
-
Dimension:
-
13120*2500*3990mm
-
Engine:
-
297KW
-
identification:
-
ISO
-
authentication:
-
CE
-
Vertical reach height:
-
48m

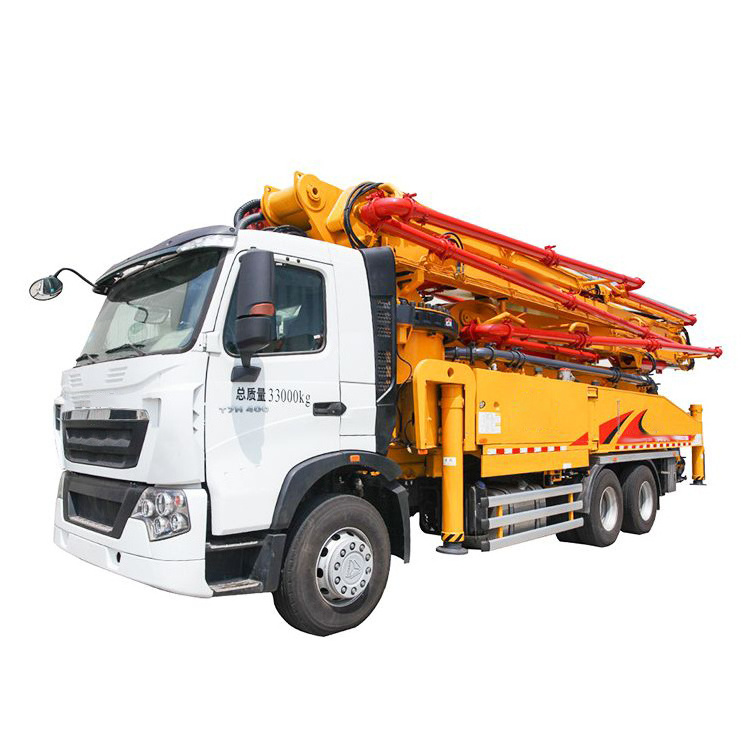

High operating efficiency 52 m truck mounted concrete pump car HB52K with good price
Performance Characteristics:
* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
-
My wechat number : a19803840980
company name : Tewrex - Suzhou subsidiary Address: Room 602, Building 2, Tiandu Building, No.211 Changjiang Road, High-tech Zone, Suzhou City
- my what'sapp number : +86 19803840980
|
Description
|
Unit
|
Parameter value
|
|
|
Outline dimension
|
mm
|
13120×2500×3990
|
|
|
Overall weight
|
kg
|
34000
|
|
|
Chassis
|
Model
|
|
ZZ5347V484MD1
|
|
Max. speed
|
km/h
|
90
|
|
|
Max. grade-ability
|
%
|
40
|
|
|
Wheelbase
|
mm
|
4800+1400
|
|
|
Tire
|
|
315/80R22.5
|
|
|
Engine
|
Model
|
|
MC11.40-40
|
|
Max. power
|
kW
|
297
|
|
|
Max. torque
|
N·m/(r/min)
|
1900/1000~1400
|
|
|
Displacement
|
L
|
10.518
|
|
|
Emission standard
|
|
Eruo IV
|
|
|
Pumping system
|
Theoretical output
|
m³/h
|
170
|
|
Concrete pumping pressure
|
MPa
|
8
|
|
|
Theoretical pumping times
|
Time/min
|
23~26
|
|
|
Delivery cylinder diameter ×stroke
|
mm
|
φ260×2000
|
|
|
Max. diameter of pumping concrete
|
mm
|
≤40
|
|
|
Filling height
|
mm
|
1580
|
|
|
Concrete slump range
|
cm
|
8~23
|
|
|
Placing boom
|
Reach height
|
m
|
51.5
|
