Quick Details
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
2.5
-
Product name:
-

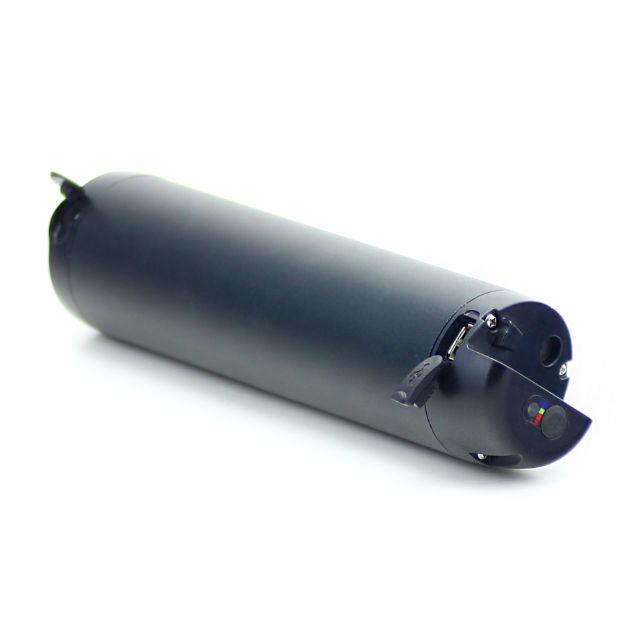

36V Lithium ion Battery Pack for Scooter
-
Type:
-
Li-Ion
-
Housing:
-
aluminium alloy
-
Rated Voltage:
-
36V
-
Rated Capacity:
-
13Ah
-
Battery cell:
-
Li-ion 18650-3.6V 2600mAh-10A
-
Size:
-
572.6*84.3*64.3mm
-
BMS Protection:
-
Yes
-
Rechargeable:
-
Yes
Quick Details
-
Battery Size:
-
Li-ion 18650-36V 13Ah
-
Brand Name:
-
Unitek/OEM
-
Model Number:
-
Li-ion 18650-36V 13Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
2.5
-
Product name:
-
36V Lithium ion Battery Pack for Scooter
-
Type:
-
Li-Ion
-
Housing:
-
aluminium alloy
-
Rated Voltage:
-
36V
-
Rated Capacity:
-
13Ah
-
Battery cell:
-
Li-ion 18650-3.6V 2600mAh-10A
-
Size:
-
572.6*84.3*64.3mm
-
BMS Protection:
-
Yes
-
Rechargeable:
-
Yes
Products Description
36V 13Ah
Lithium ion Battery Pack For E-bike / E-scooter
Custom-made and Brand New !
|
Basic Parameter Of Battery Pack
|
|
|
|
|||
|
1
|
Charge cut-off voltage
|
42V
|
|
|||
|
2
|
Discharge cut-off voltage
|
28V
|
|
|||
|
3
|
|
Under the condition of the ambient temperature of 25 ± 2 ℃
Charge the battery at constant current of 0.2C to reach 42V. Then charge the battery at constant 42V voltage until the charging current decreasing to 0.02C. |
|
|||
|
4
|
Standard discharge
|
After the standard charging, rest for 1 hour then discharge to 27.5V@0.2C.
|
|
|||
|
5
|
Shipments voltage
|
35-37V
|
soc≤30 %
|
|||
|
6
|
Maximum continuous working current
|
20A
|
|
|||
|
6
|
Maximum Charge Current
|
2A
|
|
|||
|
8
|
Rated capacity
|
13Ah
|
|
|||
|
9
|
Operation temperature range
|
Charge:10℃~45℃;
Discharge: -20℃~60℃
|
|
|||
|
10
|
Storage temperature
|
0 ~ 30℃ for 12 months
|
|
|||
|
11
|
Impedance
|
<200mΩ
|
|
|||
|
12
|
Weight
|
2.5KG
|
|
|||
|
13
|
Battery case material
|
Aluminum Alloy
|
|
|||
|
14
|
Charging connector
|
DC2.1
|
|
|||
|
15
|
Discharge connector
|
6 pins Customized terminal
|
|
|||
|
16
|
SOC display
|
LED Display
|
|
|||
|
E-bike System Parameter Matching
|
|
|
|
|||
|
1
|
Suitable for Max. Power of E-bike Motor
|
36V 700W
|
|
|||
|
2
|
Suitable for Controller Protection Current
|
20A
|
|
|||
BMS Parameter
|
1
|
Over charge Protection
|
4.25V
|
Over charge release voltage @ 4.15V
|
|
2
|
Over discharge protection
|
2.8v
|
Over discharge release voltage @ 3V
|
|
3
|
Rated operational current
|
20A
|
|
|
4
|
Over current protection ( First level)
|
65A
|
0.5-1.5S
|
|
5
|
Over current protection ( Secod level)
|
75A
|
50-150mS
|
|
6
|
Over current protection release condition
|
Cut load
|
|
|
7
|
Over Charge current protection
|
8A
|
|
|
8
|
Short protection
|
Exterior short circuit
|
Release condition: short circuit terminated
|
|
9
|
|
low temperature protection of charging
|
0±4℃
|
|
10
|
|
high temperature protection of charging
|
50±4℃
|
|
11
|
|
high temperature protection of discharging
|
70±4℃
|
|
12
|
Main loop electrify resistance
|
≤85mΩ
|
|
|
13
|
NTC
|
R-L125-10KΩ-B3435±1%
|
|
|
14
|
USB Output
|
|
|
|
15
|
Current consumption
|
≤180μA
|
|
Advantage 1:
Simple Installation Method and Overall aesthetic design with E-bike Structure !
Advantage 2:
Our Products can pass all the necessary certification based on customer requirements
Advantages 3:
We have strict quality control system to make sure the safety and good performance of each every cell we adopted !
Advantage 4:
Unitek Factory is Specialized in Desinging and Provide Custom-made Service According to Customer's Detail Requirements !
