Quick Details
-
Product name:
-
Pressure reducing Valve
-
Material:
-
Brass Body
-
Size:
-
2.5''
-
MOQ:
-
1 Piece
Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
AS
-
Model Number:
-
Valve
-
Product name:
-
Pressure reducing Valve
-
Material:
-
Brass Body
-
Size:
-
2.5''
-
MOQ:
-
1 Piece

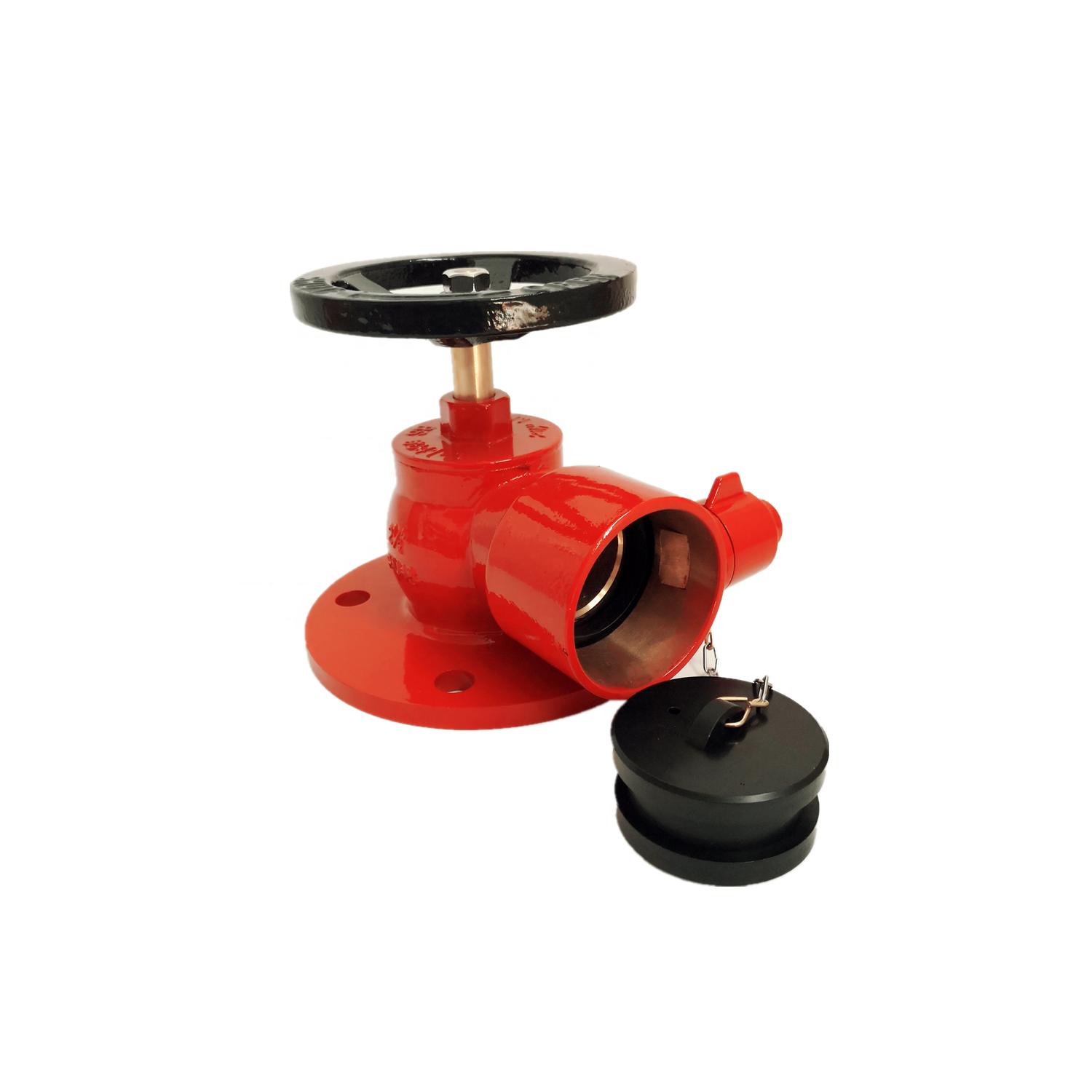

Flange right angle landing Valve is a type of globe pattern hydrant valve. These oblique type landing valves are available with flanged inlet or screwed inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard. The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bars. The internal casting finishes of every valve is of high quality ensuring a low flow restriction that meets the standard’s water flow test requirement.
Key Specificatoins:
Material:brass
Inlet:2.5” flange
Outlet:2.5” BS 336
Working pressure:16bar
Test pressure:valve seat test at 16.5bar, body test at 22.5bar
Manufacturer and certified to BS 5041 Part 1*
Water flow rate:8.5L/S@4Bar outlet pressure
Processing Steps:
Drawing-Mold-Casting-CNC Maching-Assembly-testing-Quality Inspection-Packing
Pressure Regulating Valves PRV
Specification:
Suitable for inet pressure up to 20bar
Reduced outlet static pressure can be set from 5 to 8bar
Outlet pressure remain constant with inlet pressure range from 7 to 20bar
Pressure test to 30bar
Flowrate up to 900L/M
Inlet BS4504 ANSI 150#FF Flanged,Outlet 2.5" BSP/NH thread with couplings & caps.
| Item |
Size |
H(mm) |
W(mm) |
Inlet |
Outlet |
| pressure regulating valve |
DN65 |
450 |
205 |
2.5"BSPT |
BS336 |
|
DN65 |
450 |
205 |
2.5"BSP |
BS336 |
