Quick Details
-
Max. Fluid Temperature:
-
90℃
-
Max. Output:
-
10L/min
-
Max. Fluid Working Pressure:
-
1885 psi (13Mpa, 130 bar)
-
Heater Wattage:
-
15kw
-
Max. Hose Length:
-
60m
-
Power Requirements:
-
380V-40A
-
Drive Mode:
-
Air-driven
-
Dimensions:
-
685mm*630mm*1205mm
Quick Details
-
Place of Origin:
-
Beijing, China
-
Product Name:
-

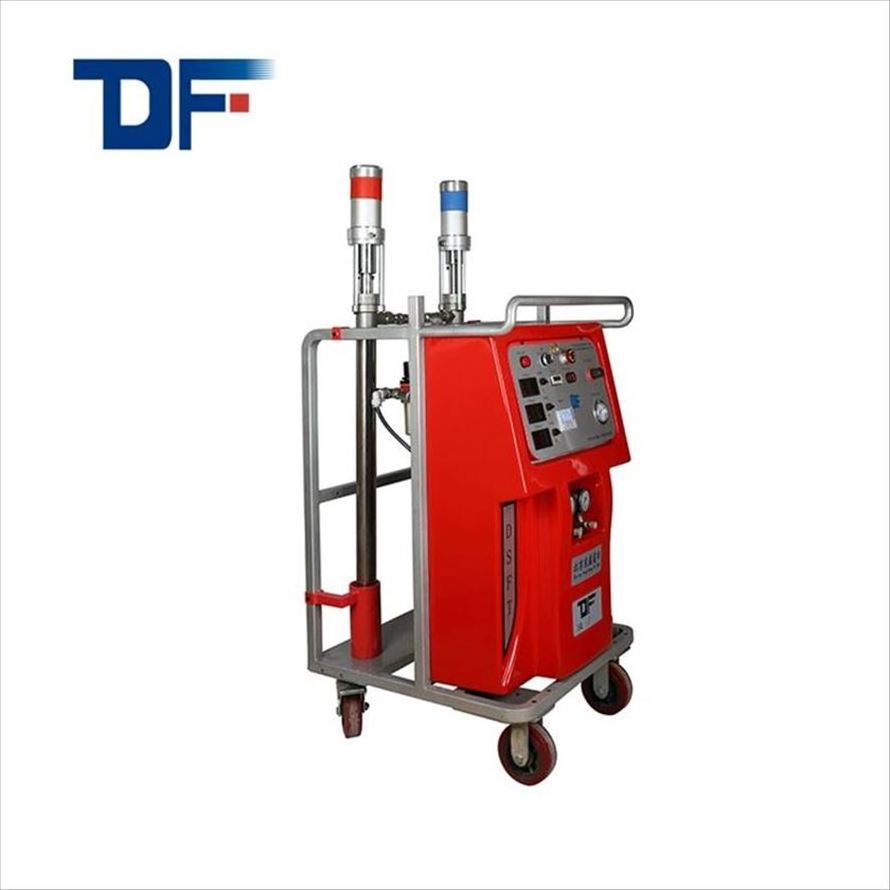

Low Pressure PU Foam Spray Machine For Wall And Roof
-
OEM:
-
Accepted
-
Max. Fluid Temperature:
-
90℃
-
Max. Output:
-
10L/min
-
Max. Fluid Working Pressure:
-
1885 psi (13Mpa, 130 bar)
-
Heater Wattage:
-
15kw
-
Max. Hose Length:
-
60m
-
Power Requirements:
-
380V-40A
-
Drive Mode:
-
Air-driven
-
Dimensions:
-
685mm*630mm*1205mm
|
Type |
DF-20/40 |
|
Maximum temperature of fluid |
90 ℃ |
|
Maximum output amount |
10L/min (15L/min) |
|
Maximum output working pressure |
13Mpa (21MP) |
|
Heating power |
15kw |
|
Maximum length of hose |
90m |
|
Power parameters |
380V-40A |
|
Mode of driving |
Air-driven |
|
Volume parameters |
685*630*1205 |
|
Standard : one main engine, two feed pumps, one spray gun, 15-meter insulating pipe |
|
|
Applications : polyurethane wall, roof , cold storage , tank, pipe insulation, , sound insulation of car, integration of hulls and so on. |
|
