Quick Details
-
Brand Name:
-
HUIXIN
-
Power (kW):
-
7.5kw
-
Weight (KG):
-
1700 KG
-
Product alias:
-

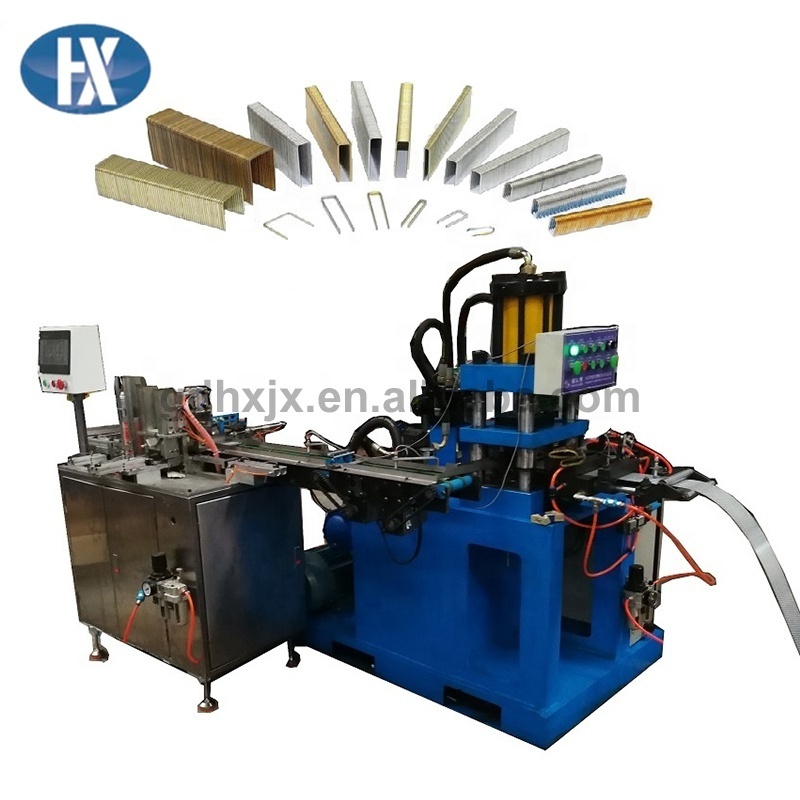

Nailing machine
-
type:
-
J type staple/clip making machine
-
automatic grade:
-
full-automatic staple/clip making machine
-
Uses:
-
To produce U-shaped nails
-
speed:
-
60-300pcs/min
-
Nominal Capacity:
-
630KN
-
Slide Strokes Per Minute:
-
80-100 times/min
-
Line plate width:
-
60-130mm
-
Line plate thickness:
-
1.0-1.35mm
-
Product usage:
-
Nails for education, decoration and industry
Quick Details
-
Production Capacity:
-
50 sets per month.
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
HUIXIN
-
Power (kW):
-
7.5kw
-
Weight (KG):
-
1700 KG
-
Product alias:
-
Nailing machine
-
type:
-
J type staple/clip making machine
-
automatic grade:
-
full-automatic staple/clip making machine
-
Uses:
-
To produce U-shaped nails
-
speed:
-
60-300pcs/min
-
Nominal Capacity:
-
630KN
-
Slide Strokes Per Minute:
-
80-100 times/min
-
Line plate width:
-
60-130mm
-
Line plate thickness:
-
1.0-1.35mm
-
Product usage:
-
Nails for education, decoration and industry
Product Description
Specification
|
Technical parameter
|
|
HX-U30
|
HX-U60
|
||
|
Nominal force of slider
|
|
250KN
|
630KN
|
||
|
Number of trips
|
|
90-170Times/min
|
80-100Times/min
|
||
|
Line width
|
|
60-120mm
|
60-130mm
|
||
|
Plate thickness
|
|
0.4-0.7mm
|
1.0-1.35mm
|
||
|
Outline dimension
|
Front and back
|
1200mm
|
1250mm
|
||
|
|
About
|
1300Mm
|
1300Mm
|
||
|
|
Tall
|
1550mm
|
1650mm
|
||
|
Electric motor
|
|
5.5Kw
|
7.5Kw
|
||
|
Weight
|
|
1500kg
|
1700kg
|
||
Model Of Nail
|
Name
|
Type
|
|
Wire rod ∅
|
Flattening thickness
|
Specification (length)
|
|
|
Small size nail
|
J nail
|
J10
|
0.88
|
0.54~0.56
|
1006J、1008J、1010J、
1013J、1016J、1019J
|
|
|
|
|
J4
|
|
|
408J、410J、413J、
416J、419J、422J
|
|
|
|
Staple
|
6/24
|
0.55
|
0.45
|
|
|
|
|
|
10#
|
0.47
|
0.3
|
|
|
|
|
|
23 Series
|
|
0.62
|
23/8、23/10、23/13、23/15
23/17、23/20、23/23
|
|
|
Large size nail
|
N nail
|
|
1.45~1.46
|
1.25~1.26
|
N13(825)、N15(832)、
N17(838)、N19(845)、N21(850)
|
|
|
|
K nail
|
|
1.19~1.20
|
0.94~1.0
|
422K、428K、432K、438K
|
|
Product Details
Production finished product drawing
