Quick Details
-
Application:
-
Thermal insulation, Thermal insulation
-
Design Style:
-
Industrial
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Rosewool
-
Model Number:
-
3mm/6mm/10mm Aerogel Insulation Blanket
-
Type:
-
Insulation Materials, 3mm/6mm/10mm Aerogel Insulation Blanket
-
Material:
-
Aerogel And Fiber Materials, Aerogel And Fiber Materials
-
Product Name:
-
Nano Aerogel Insulation Blanket
-
Thickness:
-
3mm/6mm/10mm
-
Color:
-
White/Grey
-
Density:
-
180-200kg/m³
-
Package:
-
Carton/Bag/Pallet
-
Feature:
-
Lowest Thermal Conductivity In The World
-
MOQ:
-
1PC
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Thermal insulation, Thermal insulation
-
Design Style:
-
Industrial
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Rosewool
-
Model Number:
-
3mm/6mm/10mm Aerogel Insulation Blanket
-
Type:
-
Insulation Materials, 3mm/6mm/10mm Aerogel Insulation Blanket
-
Material:
-
Aerogel And Fiber Materials, Aerogel And Fiber Materials
-
Product Name:
-
Nano Aerogel Insulation Blanket
-
Thickness:
-
3mm/6mm/10mm
-
Color:
-
White/Grey
-
Density:
-
180-200kg/m³
-
Package:
-
Carton/Bag/Pallet
-
Feature:
-
Lowest Thermal Conductivity In The World
-
MOQ:
-
1PC

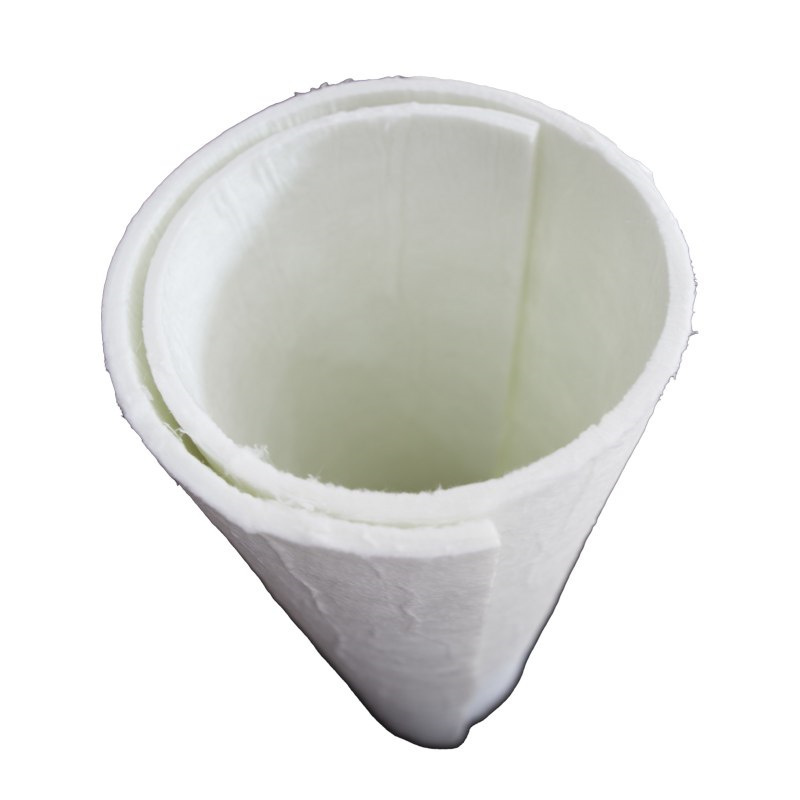

Nano Aerogel Insulation Blanket for Construction, Refineries, Pipelines:
Density: 180-200kg/m³
Raw materials: Aerogel And Fiber Materials
Thickness: 3mm/6mm/10mm
Working temperature: -200℃~650℃
Function: Thermal insulation
Nano Aerogel Felt is composed of aerogel and fiber materials. It is the solid material with the lowest thermal conductivity in the world and its operating temperature range is -200~650. It is mainly used for high-temperature insulation in industries such as petrochemical industry, thermal pipeline network, and thermal power plants. It has extremely low thermal conductivity, low thickness, low energy consumption, good pressure resistance and resilience, and is environmentally friendly and reusable.
Features of Nano Aerogel Insulation Blanket for Construction, Refineries, Pipelines:
1. Wider and higher operating temperature range -200°C~+650C, excellent performance in extreme hot and humid environments up to 650C.
2. Energy saving and high efficiency. The thermal conductivity is extremely low, and the thermal insulation effect is 2 to 5 times that of traditional thermal insulation materials. The thermal conductivity can reach below 0.012W/m.k.
3. Wider space utilization, same thermal insulation effect, reduced thickness, saving about half of the space.
4. Hydrophobic and breathable with a lifespan of 20 years, helping to keep equipment dry longer and prevent corrosion.
5. Safe, green and environmentally friendly, inorganic grade A non-flammable.
6. Easy to install, flexible, strong rebound rate, easy to cut and disassemble, saving more than 30% of installation time.
Application of Nano Aerogel Insulation Blanket for Construction, Refineries, Pipelines :
High-temperature steam pipelines in petrochemical industry, power plants, thermal power plants, thermal pipeline networks, new energy vehicles, etc.
Technical Data of Nano Aerogel Insulation Blanket for Construction, Refineries, Pipelines :
| Aerogel Insulation Blanket | |
| Thickness | 3mm/6mm/10mm |
| Width | 1500mm |
| Density | 180-200kg/m³ |
| Thermal conductivity | ≤0.020W/m.k(25ºC) |
| working temperature | -200ºC~650ºC |
| Compressive strength | ≥2kPa |
| High temperature bending temperature | ≥600ºC |
