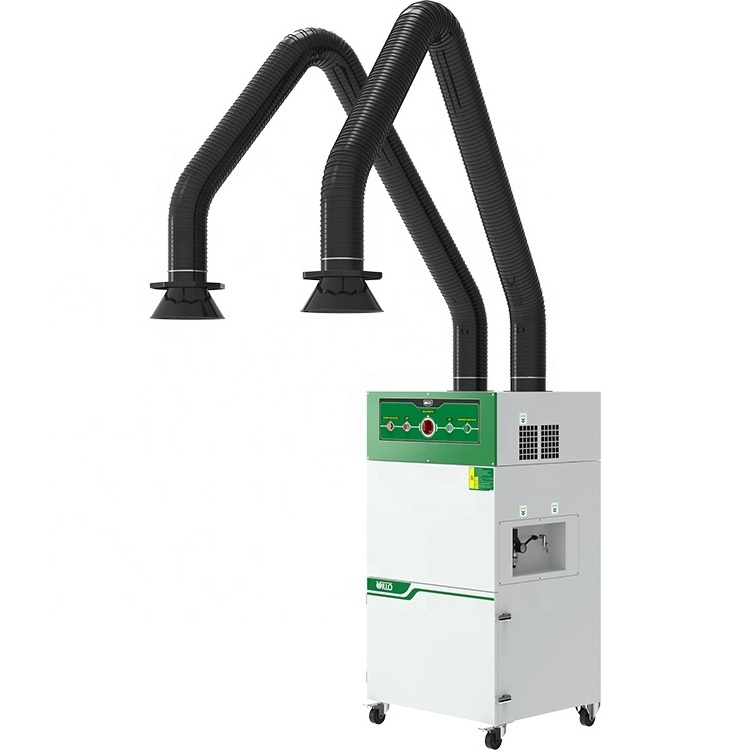

VILLO 2200W Self Cleaning Industrial Fume Extractor for Laser Drilling Machine

VILLO 2200W Self Cleaning Industrial Fume Extractor for Laser Drilling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2400

≥10 Sets

US $1980

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Fume Extractor

Max Air Flow:: 1900m3/h

Air Inlet:: 150mm*2

Filter area:: 10.6m2

Filter:: PTFE filter cartridge

Characteristic:: 360°rotatable suction arm

Filter efficiency:: >99%

Application:: Welding,Cutting,Grinding and other smoke purifiction

Local Service Location:: United States,Germany,Spain,Malaysia,Singapore

Quick Details

Weight (KG):: 210

Place of Origin:: Guangdong, China

Brand Name:: VILLO

Product name:: Fume Extractor

Max Air Flow:: 1900m3/h

Air Inlet:: 150mm*2

Filter area:: 10.6m2

Filter:: PTFE filter cartridge

Characteristic:: 360°rotatable suction arm

Filter efficiency:: >99%

Application:: Welding,Cutting,Grinding and other smoke purifiction

Local Service Location:: United States,Germany,Spain,Malaysia,Singapore

VH-T Series Self Cleaning Filter Cartridge Type Fume Extractor

Product description
VH-T series are highly efficient welding fume extractors with self-cleaning system, very ideal for the fume and dust disposal in the welding workshop or other similar working conditions.

Applications
Welding (manual arc welding; gas shielded arc welding; argon arc welding, etc.), cutting, grinding, and other smoke purification applications.

Features

* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Siemens motor and excellent metal plate technology ensures long-lasting durability.

* Compact and portable product including convenient 360 degree rotation suction arm for desirable.

* Pulse jet cleaning method for the filter makes machine to work continuously. User can set the pulse frequency depending upon the requirements.

Technology Parameters

Model	VHT-15S	VH-150T	VH-220T
Voltage(V/Hz)	220 / 50	380 / 50
Power (W) / (HP)	135 / 0.18	1500 / 2.0	2200 / 3.0
Rated current (A)	1.6	3.2	4.4
Max air flow (m³/h) / ( CFM )	165/97	1500/883	1900/1118
Noise dB (A)	65±2	73±2	75±2
Dia. air inlet (mm) / (in)	Ø 50 / 2	Ø 150 / 6	Ø 150 / 6 (2pcs，φ150/pcs )
Filter area (m²)/ ( sq.ft )	0.72 / 7.7	10.6 / 114		15.0 / 18.0
Filter efficiency	>99%
Dimension[LWH] (mm) / (in)	320300520 / 12.611.820.5	7007501520 / 27.629.558.9		7007501600 / 27.629.563.0
Weight(kg)/ ( lb )	23 / 50.7	150 / 331		210 / 463
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value
