1.Vottage :380V,240V, 220V,200V,110V and othercan be customized.
2.Wattage :2.5w~4.5w/cm² .
3.Size: length*width*thickness.
4. Whether there are holes or not. If yes, it is necessary to provide holes' quantity, size and position.
5. Therminal Type: plug, screw, lead wire and so on.
6. Quantity.
7. Other special requirements if you have.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XIAOSHU
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
10 KG
-
Working Temperature Range:
-
10 - 350 ℃
-
Material:
-
Copper
-
Core Components:
-
Heating Wire, Copper
-
Name:
-
Casting Heater
-
Maximum temperature::
-
350 deg.C
-
OEM&ODM:
-
Yes
-
Function:
-
Fast Heating,high temperature heating,dry
-
Standard thickness:
-
15~100mm
-
energy saving:
-
30%
-
Extra service:
-
Custom logo
-
Shape:
-
circle, plate or special shape
Quick Details
-
Type:
-
Cast Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V~480V or Customized, 220-480V or Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XIAOSHU
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
10 KG
-
Working Temperature Range:
-
10 - 350 ℃
-
Material:
-
Copper
-
Core Components:
-
Heating Wire, Copper
-
Name:
-
Casting Heater
-
Maximum temperature::
-
350 deg.C
-
OEM&ODM:
-
Yes
-
Function:
-
Fast Heating,high temperature heating,dry
-
Standard thickness:
-
15~100mm
-
energy saving:
-
30%
-
Extra service:
-
Custom logo
-
Shape:
-
circle, plate or special shape
Product Paramenters
|
Product Name
|
Die Casting Copper Heater
|
|
Thickness
|
20mm, 30mm, 35mm, or customized
|
|
Working Temperature
|
Normal temperature 350 degree,max 400 degree
|
|
Voltage
|
120V, 240V, 480V, 600V or customized
|
|
Power
|
50-2000W, or customized
|
|
Shape
|
round, flat, rectangular, square,air-cooled, water-cooled and other shapes
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance tolerance
|
+10%, -5%
|
|
Leakage current
|
＜0.5MA
|
|
Insulation resistance
|
> 2MΩ
|
|
Material
|
Aluminum, brass, bronze or cupronickel alloy
|
|
Service
|
Accept customized services
|
Products Description

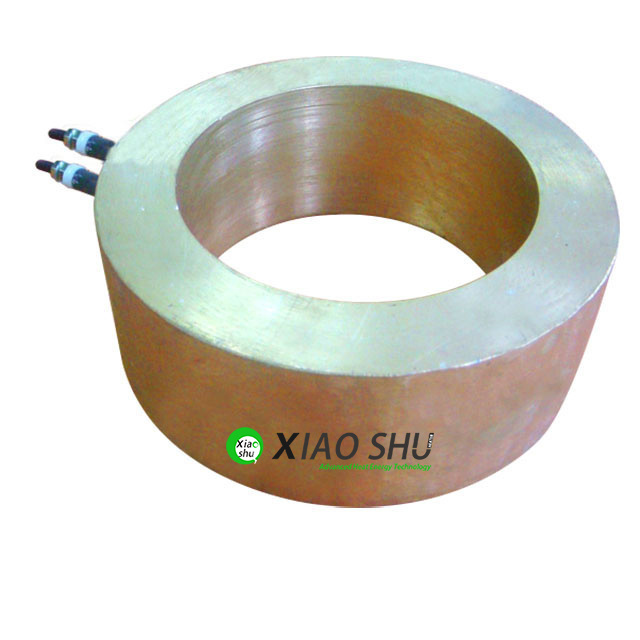

Casting Heaters
Metal casting heaters use tubular electric heating elements as the heating element and are bent into shape. They are centrifugally cast into various shapes using high-quality metal alloy materials as the outer shell into the mold, including circular, flat, right angle, air-cooled, water-cooled, and other special shapes. After precision processing, it can closely fit the heated body, and the surface load of the cast aluminum heater can reach 2.5-4.5w/cm2, with a maximum working temperature of 300-450 ℃; The surface load of the cast copper heater can reach 3.5-5.0w/cm2, and the maximum working temperature is between 500-600 ℃; The surface load of the cast iron heater can reach 4.5-6.0w/cm2, and the maximum working temperature is between 550-700 ℃. Metal casting heater is an efficient and uniform heat distribution heater made of metal alloy with excellent thermal conductivity, ensuring uniform hot surface temperature and eliminating hot and cold spots in the equipment. It has advantages such as long service life, good insulation performance, strong mechanical performance, corrosion resistance, and magnetic field resistance.
Benefits
1)The sheath of the heater is rust resistance.
2)High class Nickel Chrome ribbon is used.
3) External metallic sheath includes a special alloy
4) The working temperature is about 350℃
2)High class Nickel Chrome ribbon is used.
3) External metallic sheath includes a special alloy
4) The working temperature is about 350℃
Application
1) Injection molding•Heating barrels of plastic injection molding machines and extruders
2) Die and die holder heating of plastic extruders and blow molding machines
3) Plastic extrusion
4) Burn-out ovens
5) Process applications
6) Fluidized beds
7) Heat treating pipes.
2) Die and die holder heating of plastic extruders and blow molding machines
3) Plastic extrusion
4) Burn-out ovens
5) Process applications
6) Fluidized beds
7) Heat treating pipes.
Order Notification
Pls provide this informations
Packaging and Delivery
The packaging adopts international carton packaging or wooden box packaging. There is a protective pad in the package. Packaging also accepts customized services.
FCA shipping method. Generally, it takes about 7-15 days for most countries, and the detailed delivery time will be determined according to force majeure factors such as address.
Our Company
Xiaoshu Heat Technology
Xiaoshu Heat technology is a manufacturer focusing on industrial heaters. For example, Mica band heater/Ceramic band heater/Mica heater plate/Ceramic heater plate/Nano band heater and so on .Enterprises with independent innovation brand, establish the product trademark of "Small Heat Technology" "Slight Heat".
At the same time, it has a certain independent research and development ability, and applies advanced technology to the design of electric heating products, and creates the best product value for customers.
The company strictly according to the ISO9001 quality management system for production and manufacturing, and all products are in line with CE and ROHS testing certification.
Our Factory
Our company has introduced advanced production equipment, precision testing instruments, the use of high-quality raw materials; With professional technical team, perfect after-sales service system; design and manufacture various types of high quality heater products.
FAQ
1.
Who are we?
We are based in Jiangsu, China, start from 2015,se ll to Eastern Europe(13.00%),North America(13.00%),South
America(12.00%),Western Europe(11.00%),Northern Europe(11.00%),Central America(10.00%),Southern Europe(10.00%),Southeast
Asia(6.00%),Mid East(4.00%),South Asia(3.00%),Africa(2.00%),Domestic Market(2.00%),Eastern Asia(2.00%),Oceania(1.00%). There are
total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Electric heating element,Industrial heater,Band heater, and so on.
4. Why should you buy from us not from other suppliers?
Production Line on electric heater elements more than10 years
Perfect QC Department and Strong R&D Department ODM &OEM
Pre-sales&After-sales service ,Factory directly:ceramic heater,band heater,silicone heater,casting heater,coil heater,bobbin
heater..
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
