Quick Details
-
Dimension(L*W*H):
-
1050*500*700mm
-
Weight (KG):
-
220
-
Name:
-
wood chipper tub grinder
-
Model:
-
KL-C-400
-
Cutter head diameter:
-
400mm
-
Number of blades:
-
4pcs
-
Blade length:
-
100mm
-
Diameter of material Port:
-
150*150mm
-
Spindle speed:
-
2600 R/min
-
Equipped motor:
-
5.5-7.5kw
-
Equipped diesel engine:
-
15HP
-
Machine output:
-
800-1000kg/h
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Power:
-
7500w
-
Dimension(L*W*H):
-
1050*500*700mm
-
Weight (KG):
-
220
-
Name:
-
wood chipper tub grinder
-
Model:
-
KL-C-400
-
Cutter head diameter:
-
400mm
-
Number of blades:
-
4pcs
-
Blade length:
-
100mm
-
Diameter of material Port:
-
150*150mm
-
Spindle speed:
-
2600 R/min
-
Equipped motor:
-
5.5-7.5kw
-
Equipped diesel engine:
-
15HP
-
Machine output:
-
800-1000kg/h
Garden branch grinder
/
Wood crushing equipment
/
Mobile small wood grinder
▶Customer feedback
▶Product Description
It adopts the double crushing functions of blade cutting, high-speed airflow impact and collision in one body, and can complete the sorting process of micro materials at the same time. In the process of cutting and crushing the blade, the rotor generates high-speed airflow, which rotates with the cutting direction of the blade, and the material accelerates in the airflow, and repeatedly shocks the material to be crushed at the same time to accelerate the crushing rate of the material.
▶Specifications
|
Model
|
KL-C-400
|
KL-C-500
|
KL-C-600
|
KL-C-700
|
KL-C-800
|
|
Overall weight
|
220kg
|
320kg
|
680kg
|
780kg
|
980kg
|
|
Cutter diameter
|
400mm
|
500mm
|
600mm
|
700mm
|
800mm
|
|
Number of blades
|
4pcs
|
4pcs
|
4pcs
|
6pcs
|
6pcs
|
|
Blade length
|
100mm
|
130mm
|
150mm
|
200mm
|
230mm
|
|
Diameter of inlet
|
150*150mm
|
200*200mm
|
250*250mm
|
300*300mm
|
350*350mm
|
|
Spindle speed
|
2600r/min
|
2600r/min
|
2500r/min
|
2600r/min
|
2300r/min
|
|
Equipped motor
|
5.5-7.5kw
|
11kw
|
15kw
|
18.5-22kw
|
37kw
|
|
Diesel engine
|
15hp
|
20hp
|
30hp
|
45hp
|
50hp
|
|
Yield
|
800-1000kg/h
|
1000-2000kg/h
|
2000-3000kg/h
|
3000-3500kg/h
|
3500-4000kg/h
|
|
Dimensions(mm)
|
1050*500*700
|
1250*600*900
|
1550*800*1050
|
1650*850*1200
|
2400*1200*1400
|
▶Product Disply

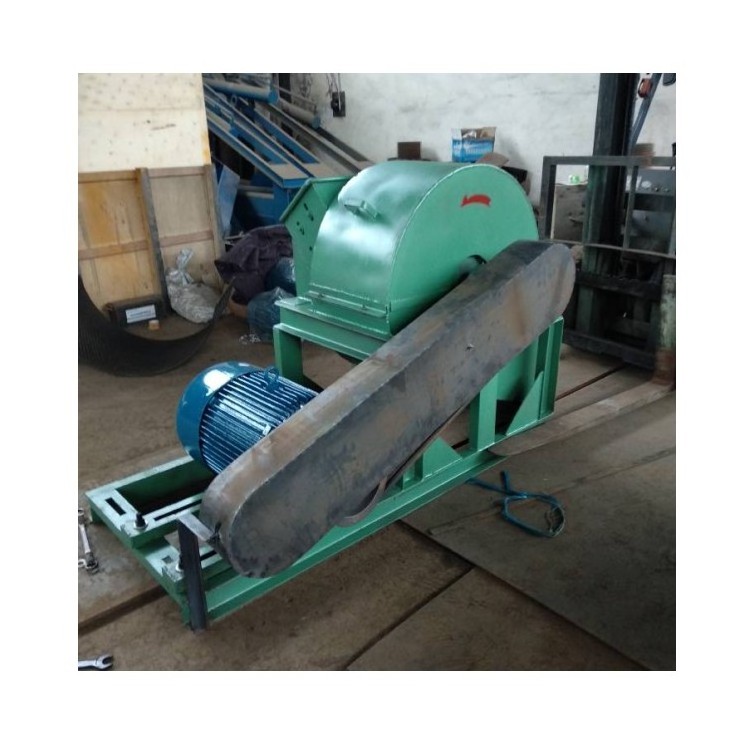

Overall picture display of products
Product details are shown
Blades
Liner
Bearing
Motor
Fan
Belt housing
Crushing effect display
▶Scope of application
Wood grinder are widely used in mechanism charcoal plants, Buddha incense plants, wood-based panel plants, biological power plants, paper mills, sawmills, feed plants, farms, mushroom edible fungi bases, landscaping projects, processing of wood in the lower corner of the furniture factory.
