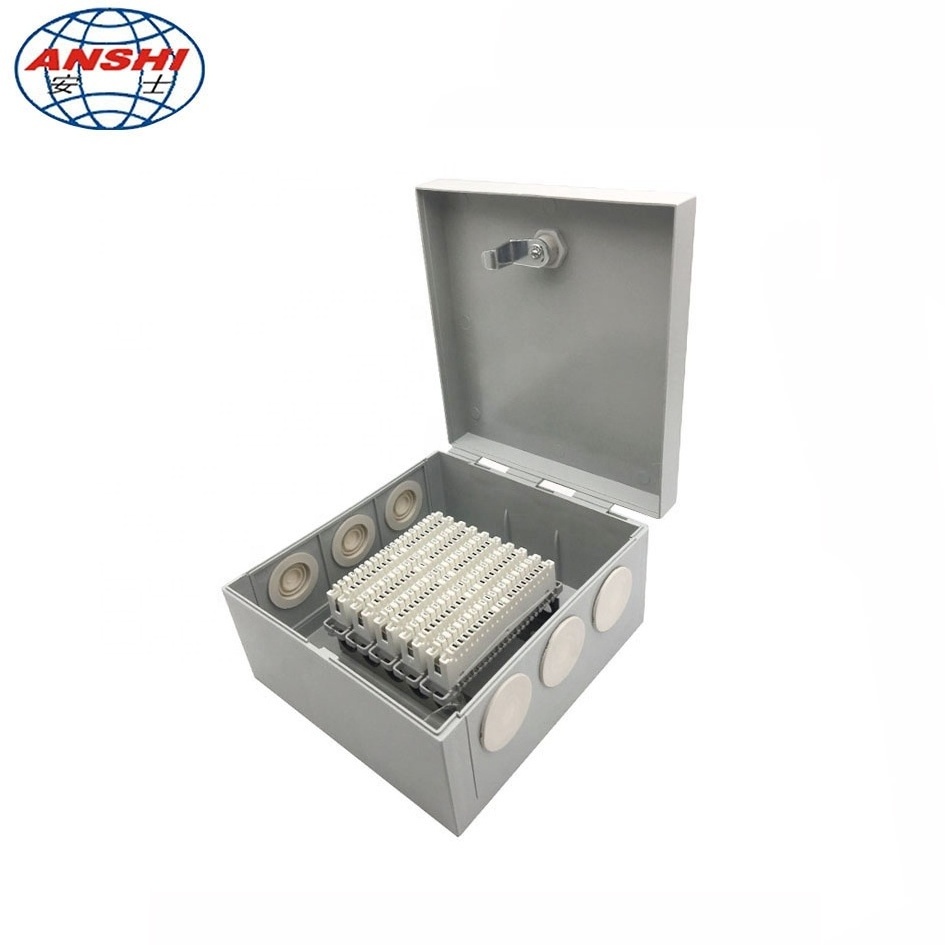

ANSHI 50 Pairs Plastic LSA Krone Box Module Indoor Telephone Distribution Box

50 Pairs Plastic LSA Krone Box Module Indoor Telephone Distribution Box

Feature:

1) Can be mounted with LSA-PLUS 10-pair distribution or connection module

2) Waterproof box, suitable for outdoor wire distribution

3) Material of house: ABS

4) Including stainless steel mounting frame, but modules to be ordered separately

5) Including 1 back mount frame

6) Compatible with Krone module

1.Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa 2.The modules are compatible with KRONE LSA-PLUS modules.

3.The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires

4.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;

5.Internal diameter of connection wire: 0.4-0.6 mm

6.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard 7.Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections ;

8.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;

9.Intermediate resistance: no more than 3m ohm under standard examination condition ;

10.Dielectric strength: according to industry standard

11.Specification: 30/ 50 / 100pairs, every specification has connection or disconnection types

12.Life: durability 200 cycles
