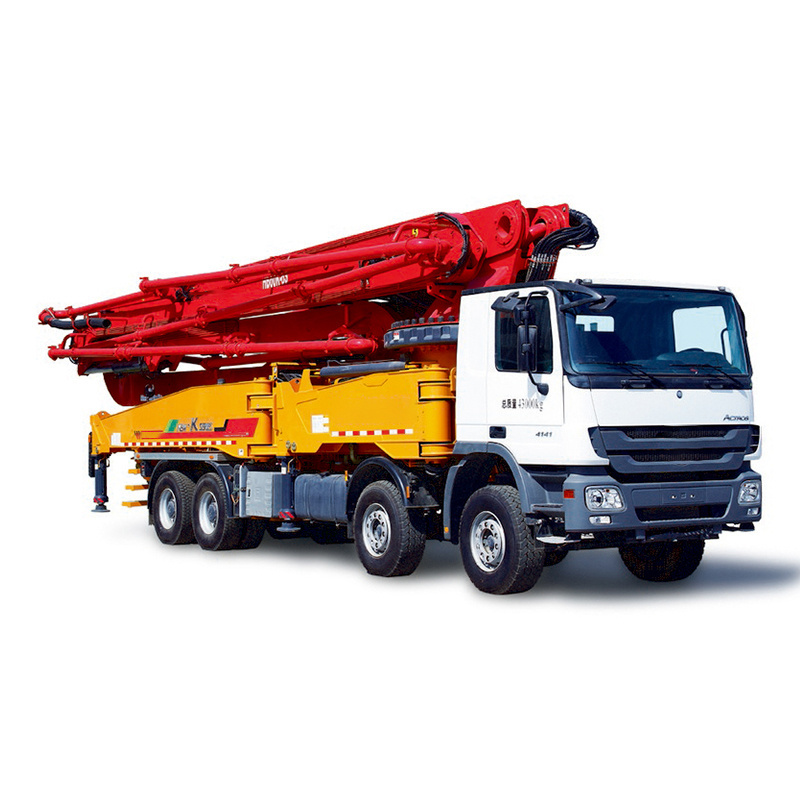

Quick Details
-
Productivity:
-
170m3/H
-
Place of Origin:
-
jiangsu
-
Weight:
-
53000 kg
-
Dimension(L*W*H):
-
15780*2500*4000mm
-
NO:
-
HB67V
-
Maximum vertical reach:
-
66.1M
-
Maximum theorical output:
-
180³/h
-
Driving type:
-
10*4
-
Engine:
-
MC13.50-60
-
Emission standard:
-
Euro V
-
Boom type:
-
7RZ
-
Outrigger type:
-
X
-
Model:
-
ZZ5207M521GC1
Quick Details
-
Power Type:
-
top brand, Diesel
-
Max. vertical conveying distance:
-
66.1m
-
Max. horizontal conveying distance:
-
48.6m
-
Productivity:
-
170m3/H
-
Place of Origin:
-
jiangsu
-
Weight:
-
53000 kg
-
Dimension(L*W*H):
-
15780*2500*4000mm
-
NO:
-
HB67V
-
Maximum vertical reach:
-
66.1M
-
Maximum theorical output:
-
180³/h
-
Driving type:
-
10*4
-
Engine:
-
MC13.50-60
-
Emission standard:
-
Euro V
-
Boom type:
-
7RZ
-
Outrigger type:
-
X
-
Model:
-
ZZ5207M521GC1
Contact way
Carlota ji
Whatsapp/Tel:
+86-18637752754
Wechat:
+86-18637752754
Email:c
arlota@oriemac.com
Product features
Performance advantages:
* Large diameter (230 mm) Φ, large displacement (130 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system. .
Specifications
|
Category
|
Item
|
Unit
|
HB67V
|
|
Overall
|
Outline dimension
|
mm
|
15780*2500*4000
|
|
|
Overall weight
|
kg
|
53000
|
|
Chassis
|
Model
|
-
|
Actros 5046E5
|
|
|
Wheelbase
|
mm
|
2020+5180+1350+1450
|
|
|
Max.power
|
kW
|
335
|
|
|
Emission standard
|
-
|
China V
|
|
Pumping system
|
Theoretical
|
m³/h
|
170
|
|
|
Concrete pumping pressure
|
MPa
|
8
|
|
|
Theoretical pumping times
|
Times/min
|
21~23
|
|
|
Delivery cylinder diameter x stroke
|
mm
|
φ260×2000
|
|
Placing boom
|
Reach height
|
m
|
66.1
|
|
|
Reach depth
|
m
|
48.6
|
|
|
Slewing radius
|
m
|
60.9
|
|
|
Slewing angle
|
°
|
±270
|
|
Others
|
Transfer tuble
|
-
|
Rock valve
|
