Quick Details
-
Voltage:
-
220V / 380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHIVE
-
Model Number:
-
AEM-800T
-
Dimensions(L*W*H):
-
5150(+1360)x2200(+1300)x2260 mm
-
Weight:
-
10.5 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Max stamping speed:
-
6500 S/H
-
Foil stamping precision:
-
≤±0.125 mm
-
Feeding stack height:
-
1150 mm
-
Max paper size:
-
800 x 620 mm
-
Min paper size:
-
340 x 280 mm
-
Chase inner size:
-
820 x 628 mm
-
Pressing plate size:
-
826 x 628 mm
-
Max stamping area:
-
780 x 600 mm
-
Vertical foil:
-
2 pce
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Usage:
-
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE Certificate
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V / 380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHIVE
-
Model Number:
-
AEM-800T
-
Dimensions(L*W*H):
-
5150(+1360)x2200(+1300)x2260 mm
-
Weight:
-
10.5 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Max stamping speed:
-
6500 S/H
-
Foil stamping precision:
-
≤±0.125 mm
-
Feeding stack height:
-
1150 mm
-
Max paper size:
-
800 x 620 mm
-
Min paper size:
-
340 x 280 mm
-
Chase inner size:
-
820 x 628 mm
-
Pressing plate size:
-
826 x 628 mm
-
Max stamping area:
-
780 x 600 mm
-
Vertical foil:
-
2 pce
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Usage:
-
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE Certificate

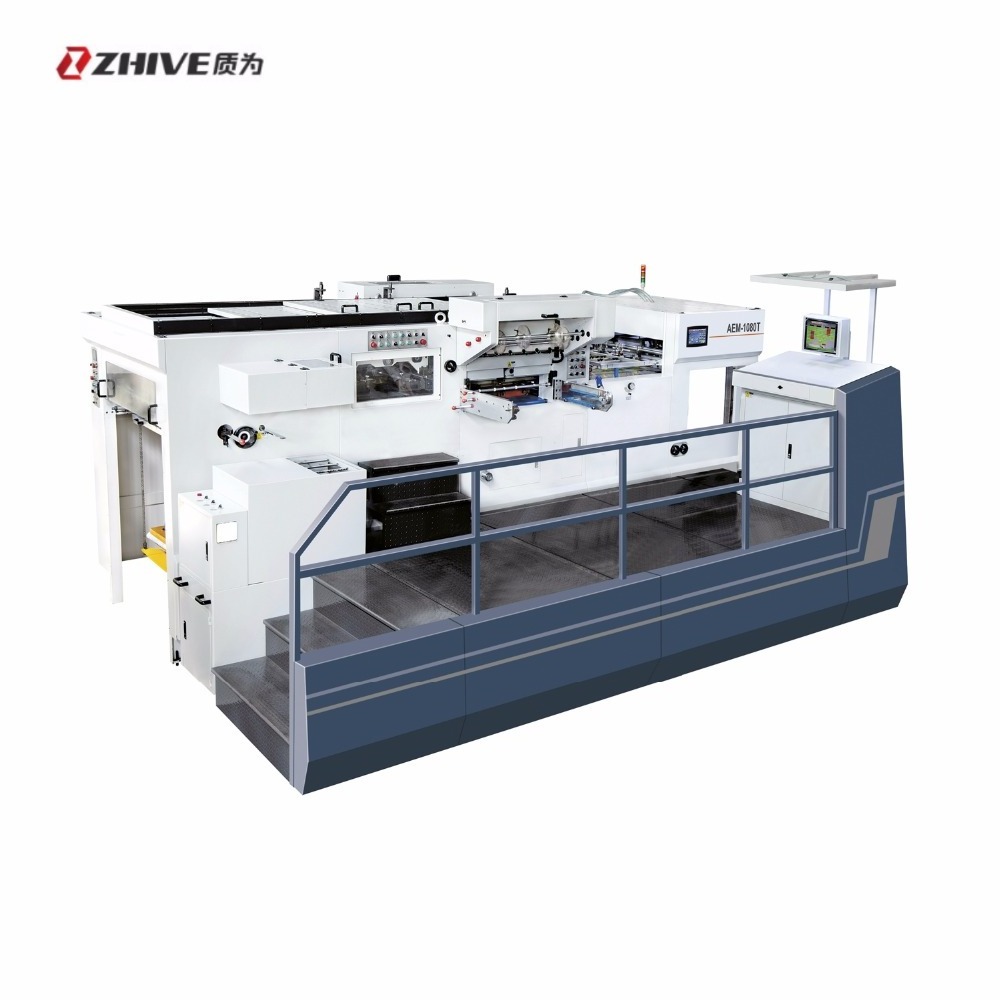

Automatic Gold Hot Foil Stamping Machine
Intro:
- Complete design, accurate installation, high stability, high security, low noise.
- Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
- The high precision intermittent mechanism, high cutting precision, running steadily.
- Adopt European feeder technology, suction adjustable, stable, precise, good paper applicability.
- Non-stop feeding, pre-stacking and collection mechanism can shorten the auxiliary time, improve the efficiency.
- Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
- Pneumatic die locking device, die frame fixed more steadily, accurately and time-saving.
- Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
- Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
- Other detail please contact.
| Model | ZWM-800T | ZWM-1080T |
|
Max paper size |
800 x 620 mm |
1080 x 780 mm |
|
Min paper size |
340 x 280 mm |
400 x 330 mm |
|
Max die cutting size |
770 x 600 mm |
1075 x 770 mm |
|
Chase inner size |
820 x 628 mm |
1100 x 790 mm |
|
Pressing plate size |
826 x 628 mm |
1080 x 780 mm |
|
Max stamping area |
780 x 600 mm |
1060 x 760 mm |
|
Min gripper edge |
7 mm |
|
|
Die cutting precision |
≤±0.1 mm |
≤±0.125 mm |
|
Foil stamping precision |
≤±0.125 mm |
|
|
Max cutting pressure |
200 T | 300 T |
|
Max cutting speed |
7000 S/H | |
|
Max stamping speed |
6500 S/H | |
|
Max foil roll diameter |
Φ250 mm | |
|
Horizontal foil width |
15~600 mm | 15~1060 mm |
|
Vertical foil width |
15~780 mm | 15~760 mm |
|
Horizontal foil |
2 pce | |
|
Vertical foil |
2 pce | 3 pce |
|
Heating area |
8 pce | 12 pce |
|
Temperature range |
50~199 ℃ | |
| Feeding stack height | 1150 mm | 1550 mm |
|
Delivery stack height |
1000 mm | 1500 mm |
|
Application:
Card board Corrugated paper |
||
| 0.1~2 mm | ||
| <4 mm | ||
| Heating area power | 16 kW | 24 kW |
| Main motor power | 7.5 kW | 11 kW |
| Total power | 45 kW | 60 kW |
|
Overall dimension ( mm ) L(+pre-stacking)xW(+platform)xH |
5150(+1360)x2200(+1300)x2260 |
5600(+1600)x2550(+1400)x2600 |
|
Total weight |
10.5 T |
17 T |
