● Size:
195x180x30mm/42mm or Custom
● Supports DDR3L RAM, mSATA SSD & 2.5 "HDD
● 9 x USB2.0/3.0,1000M LAN,Wireless WIFI
● Silent cooling fan
● Intel Ivy Bridge HM76/HM77 Chipset
● Support OS one-click restore and backup
● Support wake-up on LAN, network startup, and power-on
- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-

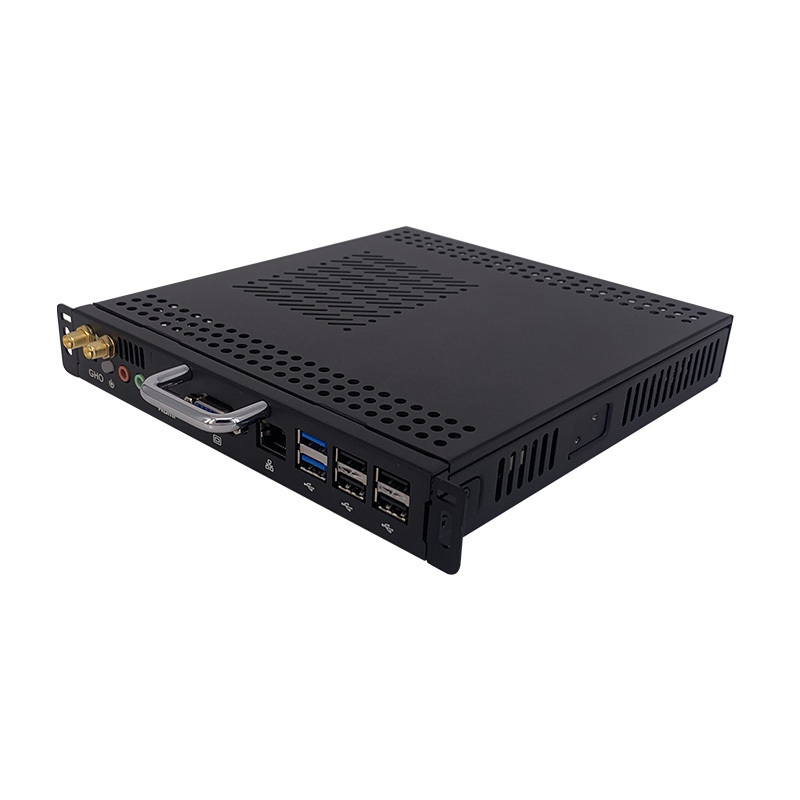

Embedded OPS Computer Mini PC
-
CPU:
-
In-tel 2th 3th Gen CPU
-
Memory:
-
1*SO-DIMM DDR3 1066/1333/1600 MHz,Max to 8G
-
Hard Disk Support:
-
1*Msata SSD, 1*2.5" SATAIII HDD/SSD
-
WIFI Support:
-
1*Msata WiFi WiFi/BT DUAL ANT
-
Display interface:
-
VGA*1 / HD-MI*1
-
Network:
-
RJ45*1,10/100/1000M NIC
-
Power supply:
-
DC 12V~19V
-
Operating System:
-
Win7/10/linux
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
Embedded Computer
-
Brand Name:
-
Ultron
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Embedded OPS Computer Mini PC
-
CPU:
-
In-tel 2th 3th Gen CPU
-
Memory:
-
1*SO-DIMM DDR3 1066/1333/1600 MHz,Max to 8G
-
Hard Disk Support:
-
1*Msata SSD, 1*2.5" SATAIII HDD/SSD
-
WIFI Support:
-
1*Msata WiFi WiFi/BT DUAL ANT
-
Display interface:
-
VGA*1 / HD-MI*1
-
Network:
-
RJ45*1,10/100/1000M NIC
-
Power supply:
-
DC 12V~19V
-
Operating System:
-
Win7/10/linux
-
Warranty:
-
1 Year
2th 3th Gen i3 i5 i7 OPS Mini PC
● In-tel OPS standard module
Product Specification
|
Model Number
|
OPS - P76X1
|
|
CPU
|
2/3th In-tel Core i3、i5、i7 Mobile FCPGA988
In-tel Core i3-2310M Processor, 3M Cache, 2.10 GHz, 2 Cores 4 Threads,TDP 35W In-tel Core i5-2520M Processor, 3M Cache, up to 3.20 GHz,2 Cores 4 Threads,TDP 35W In-tel Core i3-3120M Processor, 3M Cache, 2.50 GHz,2 Cores 4 Threads,TDP 35W In-tel Core i5-3320M Processor, 3M Cache, up to 3.30 GHz, 2 Cores 4 Threads,TDP 35W |
|
RAM
|
Types:1×SO-DIMM DDR3 1066/1333/1600 MHz
Capacity：2GB, 4GB, 8GB, Max to 8GB |
|
Hard Disk Support
|
Types:1×2.5" SATAIII HDD/SSD
1×Msata SSD Capacity：32GB 64GB 128GB 256GB 512GB SSD,etc.Please Contact US if you need HDD. |
|
Graphics card
|
In-tel HD Graphics
|
|
Operating System
|
Win7/win10, Linux
We install a win10 trial version for you by default. If you need some official version system, please contact us. For Linux OS, please provide the version you need, and we'll free install it for you. |
|
WLAN
|
1×Msata WiFi or BT
|
|
I/O Interface
|
2×USB3.0
4×USB2.0 1×LAN 1×HD-MI 1.2 1920×1080@60Hz 1×VGA 1920×1080@60Hz 1×MIC IN(pink) 1×LINE OUT(green) |
|
Network
|
1×RJ45 10/100/1000M Network card
|
|
80pin TX25 OPS Interface
|
1×HD-MI 1.2 1920×1080@60Hz
1×COM TTL 1×USB3.0 2×USB2.0 |
|
Power Supply
|
①DC 12-19V 2.5/5.5 DC In JACK
②80Pin OPS DC IN |
|
Dimension
|
180mm*195mm*30mm/195x180x42mm
We also have 180mm*119mm*30mm for your optional,Please Contact us if you need. |
|
Heat dissipation system
|
Customized Intelligent control fan, Copper conduit side-departure wind design
|
|
Materail
|
Metal chassis
|
|
Working Temperature
|
-5°C ~50°C
|
|
Working Humidity
|
10% ~ 80% RH
|
|
Warranty
|
1 Year
|
|
OEM/ODM
|
Yes, please provide your specific requirement, including CPU, Port, Motherboard, Logo, color, system, package, etc. anything.
|
Features:
①Highly cost-effective
②Low noise silent fan design
③Easy installation and maintenance
④Eco-friendly with low consumption
⑤Rugged Metal chassis for strength and integrity
⑥Reduces clutter & promotes a cable-free workplace
Easy installation
Application
The OPS mini pc is widely used in multimedia conference/teaching systems, digital signage, electronic whiteboards,Industrial control equipment, and others.
