Quick Details
-
Controller Type:
-
PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCNS\JCN
-
Model Number:
-
JCNS-121000
-
Load Power (W):
-
1KW
-
Output Frequency:
-
12V/1000W
-
Work Time (h):
-
10h
-
inverter output:
-
1000W 220V/240V
-
inverter type:
-
pure wave inverter
-
solar panel:
-
200W or customized
-
controller:
-
12V20A
-
Battery:
-
100AH
-
solar panel cable:
-
5M
-
output:
-
12V/5V/220V
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid
-
Controller Type:
-
PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCNS\JCN
-
Model Number:
-
JCNS-121000
-
Load Power (W):
-
1KW
-
Output Frequency:
-
12V/1000W
-
Work Time (h):
-
10h
-
inverter output:
-
1000W 220V/240V
-
inverter type:
-
pure wave inverter
-
solar panel:
-
200W or customized
-
controller:
-
12V20A
-
Battery:
-
100AH
-
solar panel cable:
-
5M
-
output:
-
12V/5V/220V

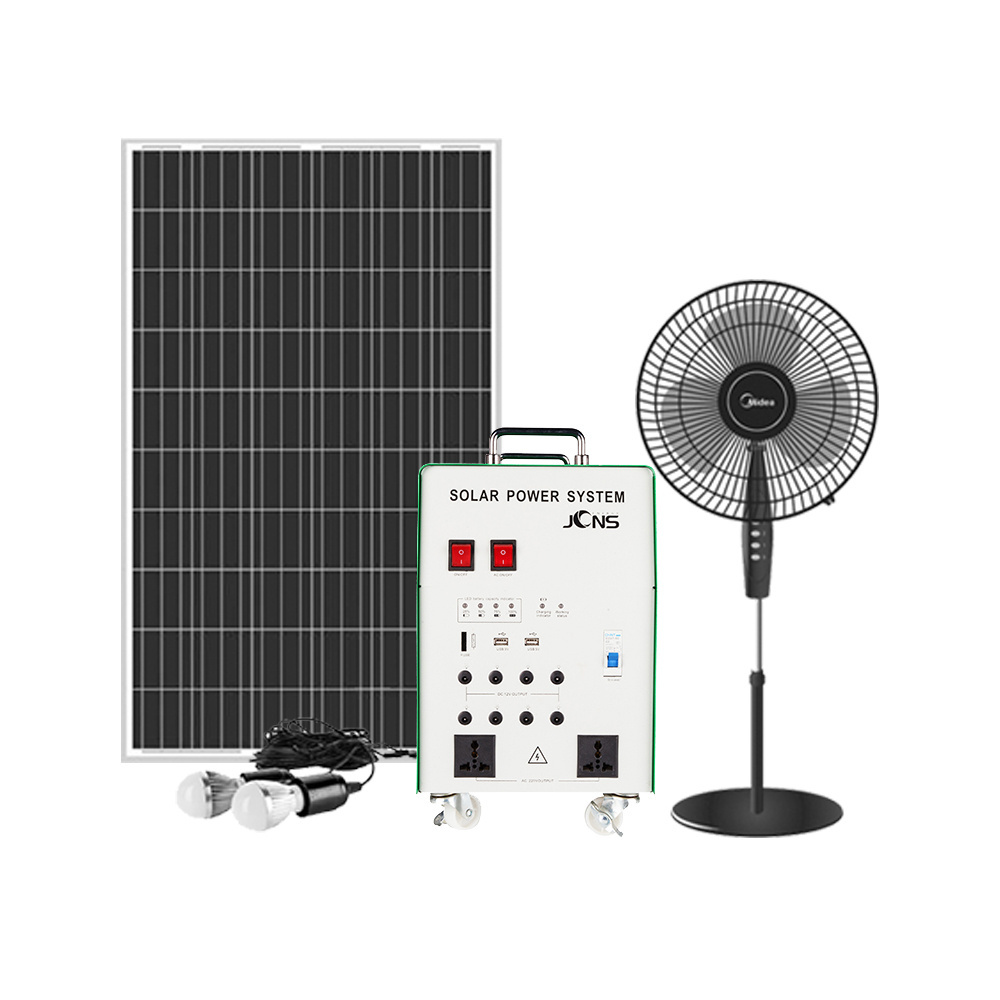

Solar Kit Solar Panels 200W solar panel 1000w home solar kit with all in one inverter
Product Description
| Model Number | JCNS-12300 | JCNS-12500 | JCNS-121000 |
| Solar panel | 685*515*30MM/50W | 1016*670*30MM 100W | 1016*670*30MM 100W/2pcs or 200W/1pcs |
| lead acid Battery |
12V/24AH(the system
box can also use for 26A) |
12V/65AH(the system box can
also use for 45AH,55AH) |
12V/100AH |
| Controller | 12V/5A | 12V/20A | 12V20A |
| Solar panel cable | DC 5M | 5M | 5M |
| Out put | 12V/5V/220V | 12V/5V/220V | 12V/5V/220V |
| System box size | 360mm(L)*287mm(H)*210mm(W) |
440mm(L)*230mm(W)*390mm
(H) |
500mm(L)*220mm(W)*400mm
(H) |
| Pure wave inverter |
300W/12V transfer to 220V
(can run TV, fan, computer and small house application) |
500W/12V transfer to 220V(can
run TV, fan, and computer ) |
1000W/24V transfer to 220V
(can run TV, fan, computer, small refrigerator and small hosue application ) |
| Solar panel carton | 675*645*75mm, 2pcs/CTN; G.W/2PCS: 10.37KG | 1031*685*75mm, 2pcs/CTN; G.W/2PCS: 15.8KG | 1031*685*75mm, 2pcs/CTN; G.W/2PCS: 15.8KG |
| System carton | 395*250*345mm N.W: 13KG G.W: 13.5KG | 510*280*420mm N.W: 28.2KG G.W: 29.5KG | 550*240*523mm N.W: 39.3KG G.W: 40.6KG |
