- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
10-200KW
-
Dimension(L*W*H):
-
1560*450*1340mm
-
Weight (KG):
-
3000
-
Marketing Type:
-
New Product 2024
-
Weight:
-
500KGS
-
Product name:
-
industrial microwave grain dryer microwave oven microwave oven circuit
-
Product Type:
-
Drying Oven
-
Function:
-
Drying and Sterilizing machine
-
Control system:
-
PLC automatic control
-
Device type:
-
Transmission belt
-
Material:
-
304 Stainless Steel
-
Inverter:
-
Delta
-
Relay:
-
Omron Relay
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIMAX
-
Voltage:
-
380V
-
Power:
-
10-200KW
-
Dimension(L*W*H):
-
1560*450*1340mm
-
Weight (KG):
-
3000
-
Marketing Type:
-
New Product 2024
-
Weight:
-
500KGS
-
Product name:
-
industrial microwave grain dryer microwave oven microwave oven circuit
-
Product Type:
-
Drying Oven
-
Function:
-
Drying and Sterilizing machine
-
Control system:
-
PLC automatic control
-
Device type:
-
Transmission belt
-
Material:
-
304 Stainless Steel
-
Inverter:
-
Delta
-
Relay:
-
Omron Relay

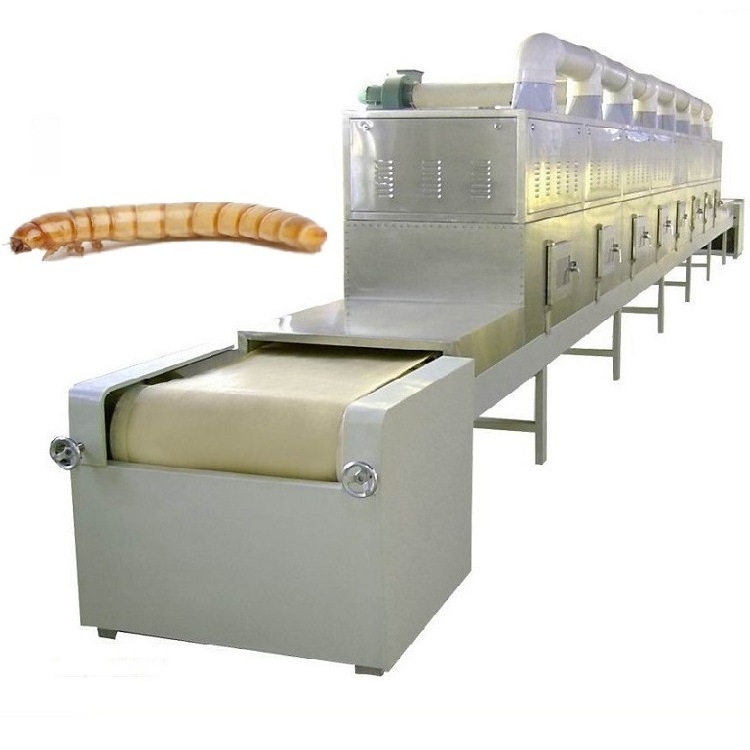

Industry automatic big capacity Tenebrio molitor microwave drying machine black soldier fly drying equipment
Microwave dryer is more and more popular nowadays.Microwave energy is converted into direct effects on heat.Microwave has penetrating performance inside and outside the media heating at the same time. Microwave can saving drying time and aviod the raw material becoming metamorphism or coking the overheat environment,The drying effect is good for seafood,tea,mushroom and so on.
Application of HIMAX microwave drying oven
♦ Drying ripening
♦ Dry and sterilization
♦ Fixing color
♦ Heating food
♦ Unfreeze meat
|
Model No.
|
Over Size(m)
|
Power(KW)
|
Dehydration Capacity(kg/h)
|
Sterilization capacity(kg/h)
|
|
HM-20
|
9*0.9*2.2
|
20
|
20
|
190-240
|
|
HM-40
|
10*1.0*2.2
|
40
|
40
|
390-500
|
|
HM-60
|
12*1.0*2.2
|
60
|
60
|
600-750
|
|
HM-100
|
15*1.2*2.2
|
100
|
100
|
800-1000
|
|
HM-150
|
21*1.2*2.2
|
150
|
150
|
1500-1850
|
|
HM-200
|
25*1.2*2.2
|
200
|
200
|
2000-2500
|
Machine parts of HIMAX microwave drying oven
1. Microwave dryer host
2. Microwave generator system
3. Humidity controlling system
4.Transmission Parts
5. PLC and touch screen control panel
6.Observation windows
7.Humidity discharging system
8.Electrical control cabinet
9.Cooling system
10.Hot air recycling and circulation system
The working principle of HIMAX microwave drying oven
The Technical Parameter Of HIMAX microwave drying oven:
|
Device type
|
Transmission belt
|
|
|
|
Microwave frequency
|
2450±50MHz
|
|
|
|
Power
|
20-200KW
|
|
|
|
Size
|
(10-42)m*1.1m*1.7m
|
|
|
|
Transmission speed
|
0-5m/minute
|
|
|
|
Input voltage
|
Three-PhaseAC 380V
|
|
|
|
Weight
|
1.3-18Tons
|
|
|
|
Cabinet color
|
Silverh white
|
|
|
|
The whole material
|
Industrial grade stainless steel
|
|
|
|
Microwave leakage limit
|
≤1mW/cm²
|
|
|
|
Working Time
|
24hours
|
|
|
Drying case of HIMAX Microwave Drying Oven:
Application : Microwave dryer has four function -drying ,ripening, fixation, sterilization ,down below is our different material working case .
Test Material of HIMAX microwave drying oven at our factory
|
Packaging Specification
|
Outside Pachage:Wooden Packing as Exportand Standard.
|
|
Delivery time
|
5-10days after received 40% of the whole payment.
|
|
Shipping forwarding
|
We can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China.
|
Jinan
HIMAX
Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.
We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the clients specific requirement, we also design and produce the machines to order. We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Our main products line include food extrusion machine, soya meal/meat processing machines, industrial microwave oven, packaging machines, rice cake machine etc... Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
All inquiries are welcome.
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service;
