Quick Details
-
Ice storage capacity:
-
2000kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OMT
-
Dimension(L*W*H):
-
1400*1000*1600(MM)
-
Weight:
-
1350 KG
-
Compressor brand:
-
Refcomp
-
Name:
-

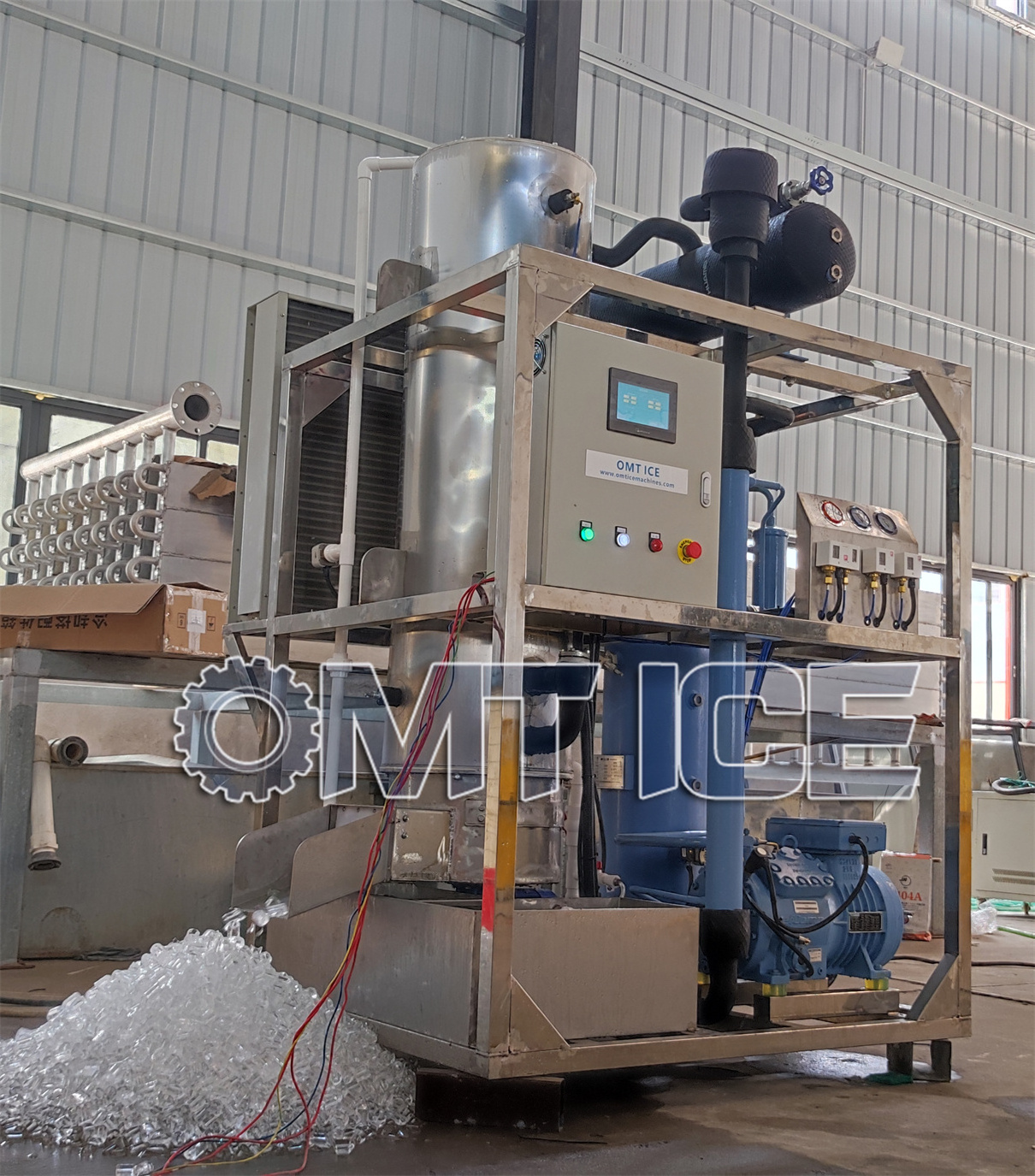

Tube Ice Making Machine
-
Product name:
-
Ice Tube Maker
-
Daily capacity:
-
2000kg/24hrs
-
Refrigerant:
-
R404a/R22
-
Cooling way:
-
Air Cooled Condenser
-
After Warranty Service:
-
Online support
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Ice Shape:
-
Tube ice
-
Voltage:
-
380V, 50Hz, 3Phase
-
Power:
-
9.4KW
-
Ice storage capacity:
-
2000kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OMT
-
Dimension(L*W*H):
-
1400*1000*1600(MM)
-
Weight:
-
1350 KG
-
Compressor brand:
-
Refcomp
-
Name:
-
Tube Ice Making Machine
-
Product name:
-
Ice Tube Maker
-
Daily capacity:
-
2000kg/24hrs
-
Refrigerant:
-
R404a/R22
-
Cooling way:
-
Air Cooled Condenser
-
After Warranty Service:
-
Online support
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
|
Ice Production Capacity
|
2,000kg/day
|
|
|
|
Electricity Connection
|
380V, 50Hz,3phase/220V, 60Hz,3phase
|
|
|
|
Tube Ice Size for option
|
22,29,35mm for option
|
|
|
|
Ice Making Time
|
16~25 minutes
|
|
|
|
Control System
|
Touch Screen (PLC controller)
|
|
|
|
Material of frame
|
Stainless steel 304
|
|
|
|
Evaporator Pipe
|
Stainless Steel Pipe
|
|
|
|
Water supply pressure requirement
|
0.1Mpa－0.5Mpa
|
|
|
|
Water Pipe Size
|
1/2"
|
|
|
|
Noise
|
55dB (very quiet)
|
|
|
|
Operating power
|
Total running power
|
8.8KW
|
|
|
|
Ice cutter motor power
|
0.37KW
|
|
|
|
Ice water pump power
|
0.37KW
|
|
|
|
Condenser cooling fan power
(for air cooled type) |
1.2KW
|
|
|
Compressor
|
Compressor Brand
|
Bitzer
|
|
|
|
Compressor Model
|
4CES-6
|
|
|
|
Horsepower
|
6HP
|
|
|
|
Compressor type
|
Semi-Hermetic Piston
|
|
|
|
Cooling Way
|
Air cooling
|
|
|
|
Refrigerant/Gas
|
R22 (R404a for option)
|
|
|
Machine dimension
|
1500*1600*2300mm
|
|
|
|
Weight of unit
|
850kg
|
|
|
Foshan Omex Industry CO., LIMITED is a refrigerant equipment and ventilation equipment manufacturer . We start manufacturing refrigerant machinery since 2008, the main products are: ice block machine, cube ice machine (commercial and industrial type), tube ice mahcine, flake ice machine and plate ice machine,
also cold room for
different storage purposed.
At the same time, we develop ourselft in welding machine series (mainly fan guard welding machines)and ventilation equipments(tube flanging machine, axil ventilation fan etc.) which well proof of these products in South Asia and North America Market.
1. Who are we?
We are based in Guangdong, China, start from 2014,sell to Southeast Asia(25.00%),Africa(20.00%),
South America(15.00%),Eastern Europe(15.00%),South Asia(5.00%),Western Europe(5.00%),
Mid East(5.00%),Oceania(5.00%),North America(5.00%). There are total about 11-50 people in our office.
2.How to ensure that I received the machine undamaged?
At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise,
please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
3. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4. why should you buy from us not from other suppliers?
OMEX is a professional machinery manufacturer and supplier in China. Our refrigeration machines included
ice block machine, cube ice machine, tube ice and flake ice machine. Welding machine and vetilation equpments
are now well developping here.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
6. Do I need to install the ice machine by myself?
For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components seperate for shipping convenience. But no
worris about that. An installation brochure will be sent to you,it's very to install the machine.
