Henan Lima Feed Machinery Manufacture CO.,LTD is professional feed pellet making machine supplier since 1998. Focus on aquatic/animal/pet feed pellet machine equipment, feed production line and customized feed mill projects solution. The capacity range of our feed pellet machine is 50kg/h ~30ton/h, the feed pellet size range is 0.3mm~15mm.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1400*1030*1200mm
-
Weight:
-
240 kg
-
Applicable Industry:
-
Farms/ Feed Factory /Feed Mill
-
Usage:
-
Fish feed/crab feed/sharmp feed/pet food making
-
Material:
-
Carton Steel
-
After Warranty Service:
-
Free Spare parts,Video technical support,oversea installation
-
Certification:
-
CE ISO
Quick Details
-
Max. Capacity:
-
40~2000kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LIMA
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1400*1030*1200mm
-
Weight:
-
240 kg
-
Applicable Industry:
-
Farms/ Feed Factory /Feed Mill
-
Usage:
-
Fish feed/crab feed/sharmp feed/pet food making
-
Material:
-
Carton Steel
-
After Warranty Service:
-
Free Spare parts,Video technical support,oversea installation
-
Certification:
-
CE ISO
Fish Feed Machine Introduction

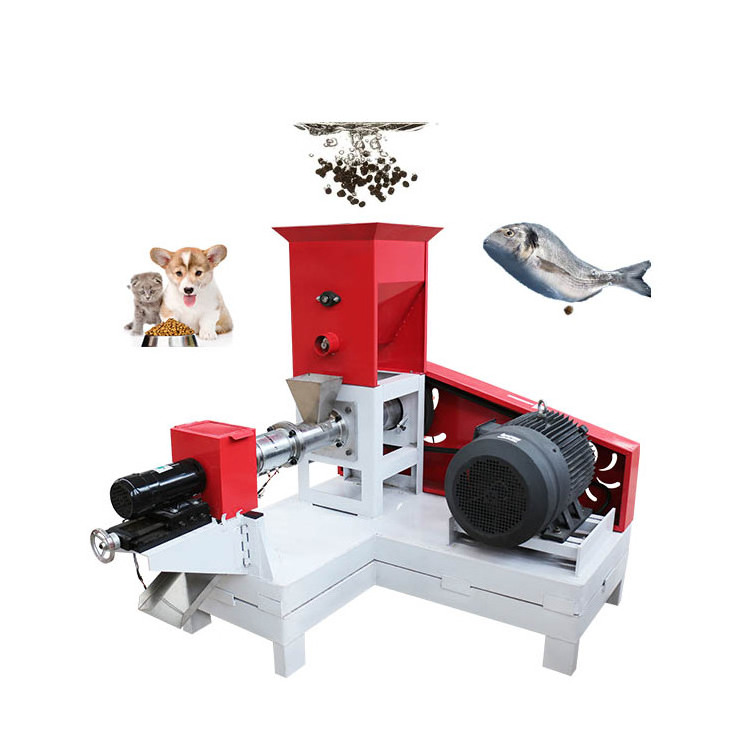

LM40 pet feed pellet making machine electric floating fish feed processing machine 40~60kg/h farm use 2023 fish feed extruder
A floating fish feed extruder is a machine used in aquaculture to produce high-quality feed pellets for fish and other aquatic animals. It is designed to produce feed pellets with various of size, shape, and nutritional content, which can improve the growth, health, and overall quality of the fish.
1. Floating Fish Feed Extruder Application
As we all know, fish feed extruder machine using for aquaculture and animal feed pellets making. For example: floating fish feed(Catfish,Tropical fish)、shrimp feed, Crab feed, dog /cat pet feed,tortoises, frogs and so on. Just change feed machine mould, can make many different shape pellets. also can make different size from 0.4mm-15mm , can feed from baby fish to big fish.
2. Floating Fish Feed Extruder Structure:
The main parts of fish feed extruder is screw and die.The process of extrusion involves cooking and compressing the raw materials under high pressure and temperature to create pellets with a desired density and texture. The feed extruder has a screw inside a barrel that rotates and pushes the raw materials forward while subjecting them to heat and pressure.
3. Floating Fish Feed Extruder Speciafication
Lima Feed Machinery is
professional feed machinery manufacturer, we produce machines of various models and specifications.
The following are the model details of common electric fish feed machines. More model, contact our online
service!
|
Model
|
Capacity(kg/h)
|
Main motor(kw)
|
Main motor(kw)
|
Screw diameter(mm)
|
Screw diameter(mm)
|
Machine size(mm)
|
Weight(kg)
|
|
LM40
|
40~60
|
1325.5
|
0.4
|
Φ40
|
0.4
|
1400x1030x1200
|
240
|
|
LM50
|
80~100
|
11
|
0.4
|
Φ50
|
0.4
|
1400x1030x1200
|
320
|
|
LM60
|
100~150
|
15
|
0.4
|
Φ60
|
0.4
|
1470x1100x1250
|
350
|
|
LM70
|
180~200
|
18.5
|
0.4
|
Φ70
|
0.4
|
1650x1400x1300
|
580
|
|
LM80
|
200~300
|
22
|
0.6
|
Φ80
|
0.6
|
1800x1450x1300
|
695
|
|
LM90
|
300~400
|
37
|
0.6
|
Φ90
|
0.8
|
2100x1450x1350
|
950
|
|
LM120
|
500~800
|
55
|
2.5
|
Φ120
|
1.1
|
2440x1950x1650
|
1860
|
|
LM135
|
800~1000
|
85
|
2.5
|
Φ135
|
1.5
|
2550x2050x1650
|
2300
|
|
LM160
|
1200~1500
|
90
|
3
|
Φ160
|
2.2
|
3100x2650x1800
|
3200
|
|
LM200
|
1200~1500
|
132
|
4
|
Φ200
|
2.5
|
3100x2850x1900
|
3800
|
Formula&Raw Material&Feed Pellets
1.Feed Formula for Different Stage Fish
Fish in different growth stages require different nutrients, and the formula of fish feed is also different. Here are the formulas of fish feed in different growth stages
|
Raw materials
|
Small fish formula
( Protein content:34-36% ) |
Medium fish formula
( Protein content:30% ) |
Big fish formula
( Protein content:28% ) |
|
Corn powder
|
30%
|
30%
|
35%
|
|
Fish powder
|
20%
|
15%
|
15%
|
|
Rice bran
|
5%
|
10%
|
10%
|
|
Soya bean meal
|
30%
|
25%
|
20%
|
|
Bone powder
|
2%
|
2%
|
2%
|
|
Wheat bran powder
|
13%
|
18%
|
18%
|
|
Water
|
25%
|
25%
|
25%
|
2. Raw Materials Reference
The feed ingredients typically include fish meal, soybean meal, corn, wheat, and other additives, such as vitamins and minerals.
3. Floating Fish Feed Pellets Show
Floating fish feeds has very strong water stability (wouldn't apart within 16-32 hours), with little pollution on the water.
Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth,
conducive to scientific management.
Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth,
conducive to scientific management.
Customized Feed Size&Shape
One fish feed machine, various feed size&shapes choose!
1.The size of feed pellets is 1~15mm for selection. Install different sizes of die to produce feed pellets of corresponding sizes and shapes.
2.If you also want to use it to produce pet food, replace the corresponding die and the corresponding feed formula,done!
Finished fish feed pellets
1. S
cope of application: floating&sinking fish feed pellets
2. Finished feed pellets
are full and smooth, not easy to break
3.
It can be
trial
produced according to the customer's feed formula before shipping
