Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
C-Power
-
Model Number:
-
S-120-12
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
10A
-
Application:
-
Led Lamp Electronics
-
Certification:
-
CE
-
Warranty:
-
3 Years
-
Product Name:
-
crt tv power supply
-
Protection:
-
Over-voltage
-
Efficiency:
-
86%
-
Type:
-
Constant Voltage
-
Name:
-
120v dc power supply
-
Brand:
-
C-Power
-
Power:
-
120w
Quick Details
-
Output Power:
-
101 - 200W
-
Input Voltage:
-
120v
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
C-Power
-
Model Number:
-
S-120-12
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
10A
-
Application:
-
Led Lamp Electronics
-
Certification:
-
CE
-
Warranty:
-
3 Years
-
Product Name:
-
crt tv power supply
-
Protection:
-
Over-voltage
-
Efficiency:
-
86%
-
Type:
-
Constant Voltage
-
Name:
-
120v dc power supply
-
Brand:
-
C-Power
-
Power:
-
120w

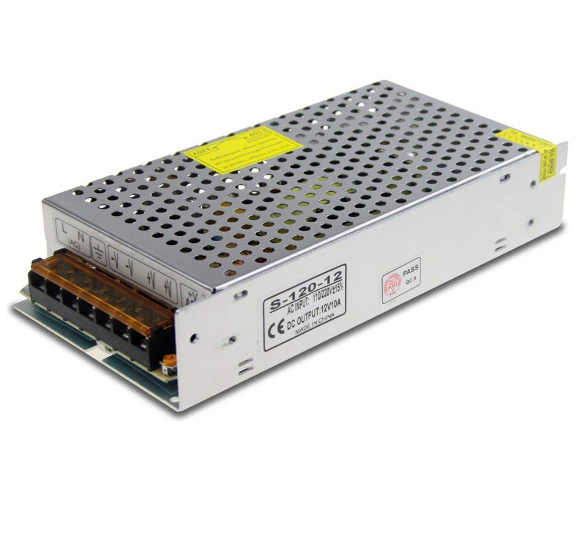

S-120-12 Switch AC 110V/220V to DC Converter Driver 12V 10A 120W Power Supply Adapter
Feature
1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency
|
Model |
S-120-12 |
|
|
Output |
DC output voltage |
12V DC |
|
Output voltage tolerance |
±1% |
|
|
Rated output current |
10A |
|
|
Output current |
0~10A |
|
|
Output power |
120W |
|
|
Ripple and noise |
80mVp-p |
|
|
DC adjustable range |
±10% |
|
|
Setup rise hold up time |
50ms |
|
|
Input |
Input voltage range |
85~132VAC 170~264VAC 47~63Hz, 240~370VDC |
|
AC input current |
6.5A/115V 4A/230V |
|
|
Efficiency |
82% |
|
|
AC inrush current |
Cold start current 25A/115V 50A/230V |
|
|
Leakage current |
<3.5mA/240VAC |
|
|
Protection characteristic |
Over load protection |
105%~135%rated output power start the over load protection |
|
Protection mode : cut off the output,auto-recovery |
||
|
Over-voltage protection |
115%-135% cut off the output,auto-recovery |
|
|
Over-temp protection |
Rectifier≥80°Ccut off the output ,auto-recovery |
|
|
Fan ON/OFF control |
≥55°C Fan start ,≤45°CFan off |
|
|
Environment |
Working temperature |
-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve) |
|
Security |
Withstand voltage |
Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC |
|
Insulation resistance |
Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC |
|
We offer the palletized delivery to our honourable customer by sea.
The palletized delivery detail as following:
1, Promotely reponse and fast production leadtime 2, Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4, Can we be your distributor?
-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.
5,What ’ s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union,ect
6,What ’ s your MOQ?
-- 3000pcs, except for sample order or trial order.
