Old Carton Cardboard recycling plant/kraft paper machine with easy to operate

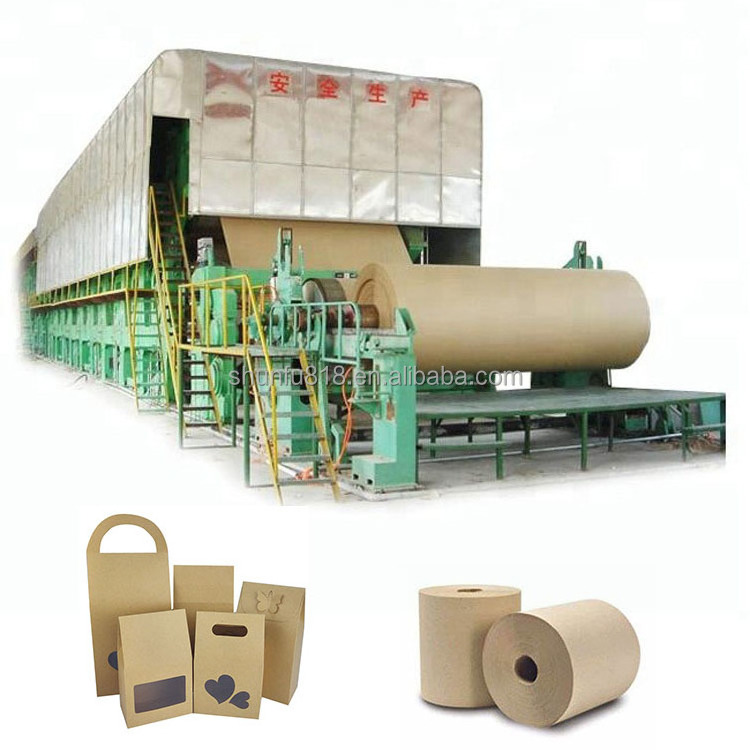

Kraft Paper Making Machine Production Line

This machine mainly use different kinds of waste paper, recycled old carton box, wheat or rice straw, sugarcane bagasse, virgin pulp,cotton, wood,etc as material to make kraft paper, corrugated/liner paper,finished product can be jumbo paper roll. We can offer the whole line of paper making.

Main Specification:

Raw Materials:

Process Flow Diagram:

Main Structure of Paper Machine:

1.Wire section: Dewater initially and form even wet paper.

(1)Total two types: cylinder mould usually used for small capacity paper mill, and fourdrinier wire for little big capacity.

(2) Fourdrinier table length is usually between 13m and 24m.(decided by working speed).

(3) It can select open-type headbox when the working speed is less than the 250m/min;

2. Press Section: The dryness after press section is about 25-42%.

(1) The press consists of a vacuum suction device, four rollers twin press and one main press.

(2)The main press can improve press nip width dewatering wet sheet strength and finished paper density.

3. Drying part: The dryness after drying section is 92-95%. This section consists of several groups dryer cylinders. There is a gas hood to prevent steam evaporating.

(1) It usually uses several dryer cylinder groups with the diameter of Φ1500mm or Φ1800mm. drive: closed gear box each dryer group single drive or single gear box each dryer group multi-points drive.

(2) When wet paper enters into dryer section, it can select different leading way and paper orientation according to PM working speed, production basis weight and pulp impurity.

4, Winding Section: Cylinder type winding machine 1 set, Rewinding machine 1 set.

Final Products:

The finished paper of kraft paper machine production line is jumbo roll kraft paper, and then through various different kraft paper processing machine, can be made into different kinds of kraft paper products, such as: kraft paper bag, kraft paper tube, kraft paper label, kraft paper file bag, kraft paper envelope, etc., the following is the flow chart of paper tube making process as an example, for reference:

Buy Guide:

It will be better you can supply us following necessary information ,we can know well about your technical requirement , then we can make exact design and accurate quotation completely according to your need :

If you are interested in our other machine, welcome to click link below and send us message for more details.

• Sludge Paperboard Machine
• Paper Tube Making Machine
• Toilet Paper Machine
• Kraft Paper Machine
• Paper Rewinding Machine
• Napkin Paper Machine
• Toilet Paper Rewinding Machine

Qinyang City Shunfu Paper Making Machinery Co., Ltd. is a manufacturer of paper machinery, and leading the paper industry has been 30 years of history. We have a full range of testing equipment and strong technical force, is a research and development, production, testing, sales in one of the suppliers.Our products have been unanimously recognized and praised by the vast numbers of users, and can meet the growing economic and social needs. We sincerely welcome friends at home and abroad, hope to establish friendly business contact with you for your cooperation and achieve win-win goal.

Why you choose us ?

(1) professional engineer team with 30years experience ;

(2) we can supply you turn -key solution without any trouble ;

(3) we have strict quality control system and ensure there is no unqualifiedly product ;

(4) professional installation technician and clear technical training for your workers ;

(5)strict recalling system : if any problem of machine ,we will recall it and change a new one for free

We have exported to many foreign countries,for example, Russia, Middle East, Argentina, Uzbekistan, Turkmenistan,Malaysia, Vietnam, Pakistan etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!

• Packaging:

Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.

• Delivery:

1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.

1: How to assure machine quality?

Shunfu Paper Making Machinery Factory is one paper machinery factory with more than 30 years manufacturing experience. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard,SGS&BV. We are gold supplier on Alibaba. Our guarantee period is 1 year. If there are any quality problems, We will repair or change for free.

2: Can you design the production line for customer?

Yes, we have a professional team with rich experience of paper mill design by CAD software. According to different paper(tissue paper,kraft paper, paperboard), different raw material(wood, waste paper, paper pulp), Our technicist and engineer will offer different design.

3. Could your engineer teach and train our worker and stay in our factory for long time?

Yes, we have installation engineer team, they can train and teach your worker to operate paper machine, during which their salary is paid by you.

4: Can I visit your company?

Yes, of course. Our company located in Qinyang city of Henan province, if you take plane, it will need about 2 hours from Zhengzhou city, we will pick you up from airport as well as the train station. We will take you to see our machine running in our chinese clients' paper mill. welcome you and your team to visit us at any time!
