- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KELV
-
Purify Efficiency:
-
90%
-
Weight (KG):
-
90 kg
-
Product Name:
-
Restaurant Exhaust System(ESP)
-
Material:
-
Stainless Steel
-
emission way:
-
100% low altitude emission
-
Application:
-
Restaurant , Hotel,Commercial kitchen, industrial market
-
Voltage:
-
220v
-
Function:
-
Fume Filter
-
Feature:
-
Eco-Friendly
-
OEM:
-
Acceptable
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Field installation,Online support
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
power supply, electric field
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
KELV
-
Purify Efficiency:
-
90%
-
Weight (KG):
-
90 kg
-
Product Name:
-
Restaurant Exhaust System(ESP)
-
Material:
-
Stainless Steel
-
emission way:
-
100% low altitude emission
-
Application:
-
Restaurant , Hotel,Commercial kitchen, industrial market
-
Voltage:
-
220v
-
Function:
-
Fume Filter
-
Feature:
-
Eco-Friendly
-
OEM:
-
Acceptable
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Field installation,Online support

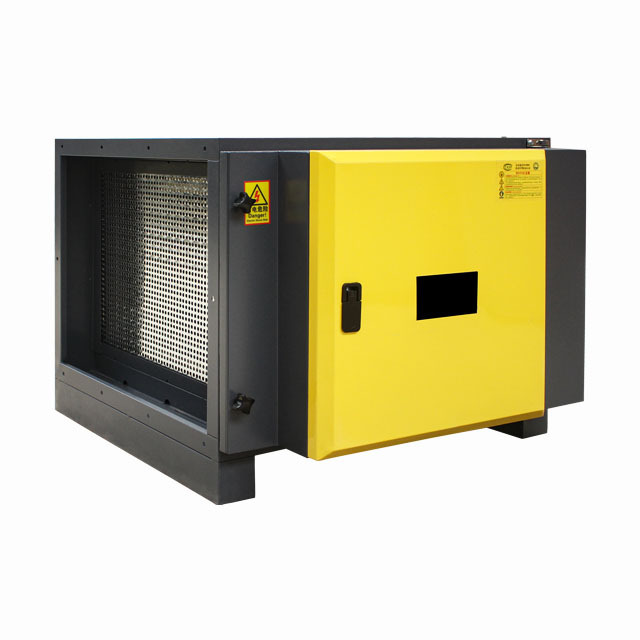

Commercial electrostatic fume purification equipment（ESP）
Solve your fume purification problem，
offer 1 year quality guarantee，
100% trustworthy
Welcome to visit our factory,
We hope our offer are favourable to you.
If u have any question do not hesitate to contact me！
Email : lily68052@gmail.com
WhatsApp :+86 15676761070
Website : https://www.klhb.org
Product Description
Oil Fume Purification equipment can be widely used in the purification of oil mist discharged in the process of hotel kitchens,canteens, lathes, food, machinery manufacturing, etc.
Different types for your choice !
Good quality competitive price
100% inspection
Faster delivery
How to choose the model I need? Air Flow is the key !
★1: Check the air flow of exhaust fan, then choose an ESP device larger than
that. For example, the exhaust fan is 7000CMH, then you will need ESP device of 8000CMH.
★2 : Check the covering area of range hood, then do the math. Usually 1-meter-long range hood requires 2000CMH to 2500CMH air flow. For example, Ana's range hood is 1.2m in width and 2m in length, then she will need an ESP of 4000CMH.
Where to install my ESP device?
Cubic ESP device can be installed anywhere between range hood and exhaust fan. For fire safety, we strongly suggest you put a fire damper after ESP device.
★1: Check the air flow of exhaust fan, then choose an ESP device larger than
that. For example, the exhaust fan is 7000CMH, then you will need ESP device of 8000CMH.
★2 : Check the covering area of range hood, then do the math. Usually 1-meter-long range hood requires 2000CMH to 2500CMH air flow. For example, Ana's range hood is 1.2m in width and 2m in length, then she will need an ESP of 4000CMH.
Where to install my ESP device?
Cubic ESP device can be installed anywhere between range hood and exhaust fan. For fire safety, we strongly suggest you put a fire damper after ESP device.
How often should I do the maintenance?
The maintenance is mainly about to clean the honeycomb structure fume collectors. We suggest the user shall clean the cells every 4-6 weeks. Or whenever the maintenance light lights up.
Installation Instructions
WORKING PRINCIPLE
1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.
2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4 UVC-ultraviolet light produces OZONE and undergoes chemical processes such as Photolysis and Ozonolysis that breaks down grease and odour containing compounds produced during cooking.
5. The cleaned air exits through the cabinet.
What can the Electrostatic ozone deodorizing air cleaner help with ?
* removal rate of grease, smoke: Single pass 95%; double pass >98%
* Comply with local environmental policies
* Avoid complaints and be friendly with local residents and commercial neighbor.
* Greatly reduces grease accumulation in the ducts and fire hazard,as well as saving duct cleaning cost.
* Low wind resistance: Energy-saving and saving your cost on high power fan. User usually can use original / factory fan.
Packaging & Shipping
1. wrap by carton first 2. packing with wooden case (not free) Sea Shipping:after sailing 30-45 workdays China to the door
process:
Laser cutting→Bending
→
Welding
→
Grinding
→
Plastic spraying
→Dispensing→Final assembly→Testing→Packaging→deliver goods
Our Service
1.Prompt shipment : factory own complete production and assembly lines to ensure customers prompt shipment for each order.
2.Cargoes photo : strict QC quality control and inspect before shipment. Cargoes photo will be provided to customers before and after loading.
3.Packing : machine packed in sturdy and strong wooden case, nailed and secured by overall nylon strapping; or packed as customers' special request.
4.Best service after shipment with email: 24/7 lifetime phone & online tech support to offer our customers the best service after shipment.
5.Feedback email after end-users received the cargo.
6.Trade Assurance service as a trade safe guards
