Quick Details
-
No. of Slitting Lines:
-
10 - 30
-
Machinery Test Report:
-
According to actual situation
-
Marketing Type:
-
New Product 2022
-
Coil Weight (T):
-
25 T
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Rated Power:
-
300 KW
-
Dimension(L*W*H):
-
30x2x2.5
-
Weight:
-
50
Quick Details
-
Cutting Width (mm):
-
200 - 1600 mm
-
Material Thickness(mm):
-
0.3 - 3 mm
-
Cutting Speed(m/min):
-
0 - 180 mm
-
No. of Slitting Lines:
-
10 - 30
-
Machinery Test Report:
-
According to actual situation
-
Marketing Type:
-
New Product 2022
-
Coil Weight (T):
-
25 T
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Rated Power:
-
300 KW
-
Dimension(L*W*H):
-
30x2x2.5
-
Weight:
-
50
Product Overview

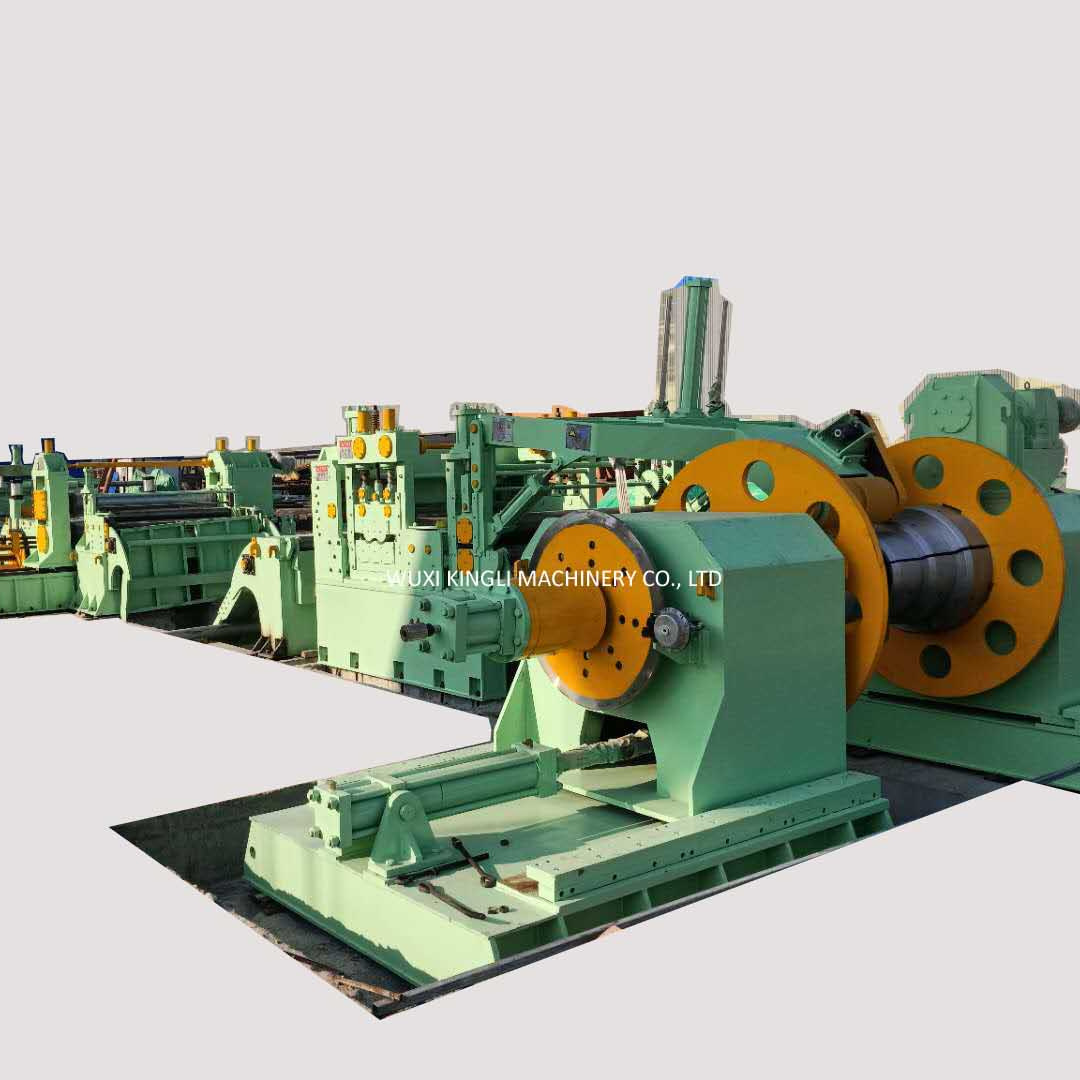

Slitting Line
This line includes coil loading car, uncoiler, levelling machine, front looper, slitting machiner, scrap winder, back looper, tensioner, recoiler, auxiliary support, coil unloading car, hydraulic system, electrical system and so on.
The whole production line adopts PLC centralized control, man-machine interface display, Siemens, Schneider and other leading brands of electric control system, completely in accordance with the user's order quantity, the number of strip, different strip specifications, strip speed and other parameters free setting.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Model:
|
KLZJ0.1-1*500
|
KLZJ0.2-2*800
|
KLZJ0.3-3*1600
|
KLZJ0.4-4*2000
|
KLZJ0.5-5*2000
|
||||
|
Coil material:
|
Plain carbon cold rolled coils, Plain carbon hot rolled coils, Galvanized steel coils, Color-coating steel coils, Stainess steel coils
|
|
|
|
|
||||
|
Coil thickness:
|
0.1-1mm
|
0.2-2mm
|
0.3-3mm
|
0.4-4mm
|
0.5-5mm
|
||||
|
Coil width:
|
100-500mm
|
100-800mm
|
200-1600mm
|
300-2000mm
|
300-2000mm
|
||||
|
Coil weight:
|
≤5000KG
|
≤10000KG
|
≤25000KG
|
≤30000KG
|
≤30000KG
|
||||
|
Coil i.d.:
|
Φ300，φ400，φ508
|
Φ508，φ610
|
Φ508，φ610
|
Φ508，φ610
|
Φ508，φ610，φ760
|
||||
|
Coil o.d.
|
≤1600mm
|
≤1800mm
|
≤2000mm
|
≤2100mm
|
≤2200mm
|
||||
|
Strip width:
|
≥10mm
|
≥18mm
|
≥30mm
|
≥40mm
|
≥50mm
|
||||
|
Number of strip:
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
||||
|
Slitting accuracy:
|
+0.05mm
|
+0.1mm
|
+0.1mm
|
+0.15mm
|
+0.2mm
|
||||
|
Line Speed:
|
0-200m/min
|
0-200m/min
|
0-180m/min
|
0-160m/min
|
0-120m/min
|
||||
|
Control System:
|
PLC Touch Screen
|
PLC Touch Screen
|
PLC Touch Screen
|
PLC Touch Screen
|
PLC Touch Screen
|
||||
PRODUCT CONFIGURATION
SIEMENS motor
SIEMENS PLC
CHINT
SIMILAR PRODUCTS
FAQ
Q1：
What information do you need to prepare the quotation:
A1：
1.what’s the raw material? coil thickness(min-max)
2.What’s the coil thickness(min-max)?
3.What’s the coil width(min-max)?
4.What’s the coil’s weight (max)?
5. How many tons do you need per day or per month?
Q2：
Do you provide installation and commissioning?
A2：
Yes. We provide installation and commissioning, also provide technical training.
Q3：How to visit your factory?
A3：
We can pick you up from shanghai airport or wuxi airport, or railway station shanghai or wuxi station.
