Quick Details
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
2200X2100X2200MM
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
water production line
-
Function:
-
Washing Filling Capping
-
Processing Types:
-
Automatic Bottle Filling Sealing Machine
-
Usage:
-
Beverage Packaging
-
Filling material:
-
Flowing Liquid
-
Material:
-
Stainless Steel
-
Bottle type:
-
PET Plastic Bottle
-
Capacity:
-
2000-30000bph
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
2200X2100X2200MM
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
water production line
-
Function:
-
Washing Filling Capping
-
Processing Types:
-
Automatic Bottle Filling Sealing Machine
-
Usage:
-
Beverage Packaging
-
Filling material:
-
Flowing Liquid
-
Material:
-
Stainless Steel
-
Bottle type:
-
PET Plastic Bottle
-
Capacity:
-
2000-30000bph
Products Description
We can provide turnkey project for customers, including pre-sales and after-sales service.
Pre-sales service: We can provide the whole production line, factory design, sample design bottle, provide a layout diagram, provide auxiliary materials supply agent information.
After-sales service:We could send engineeers to your factory for machine installation and debugging, staff training and so on.
*

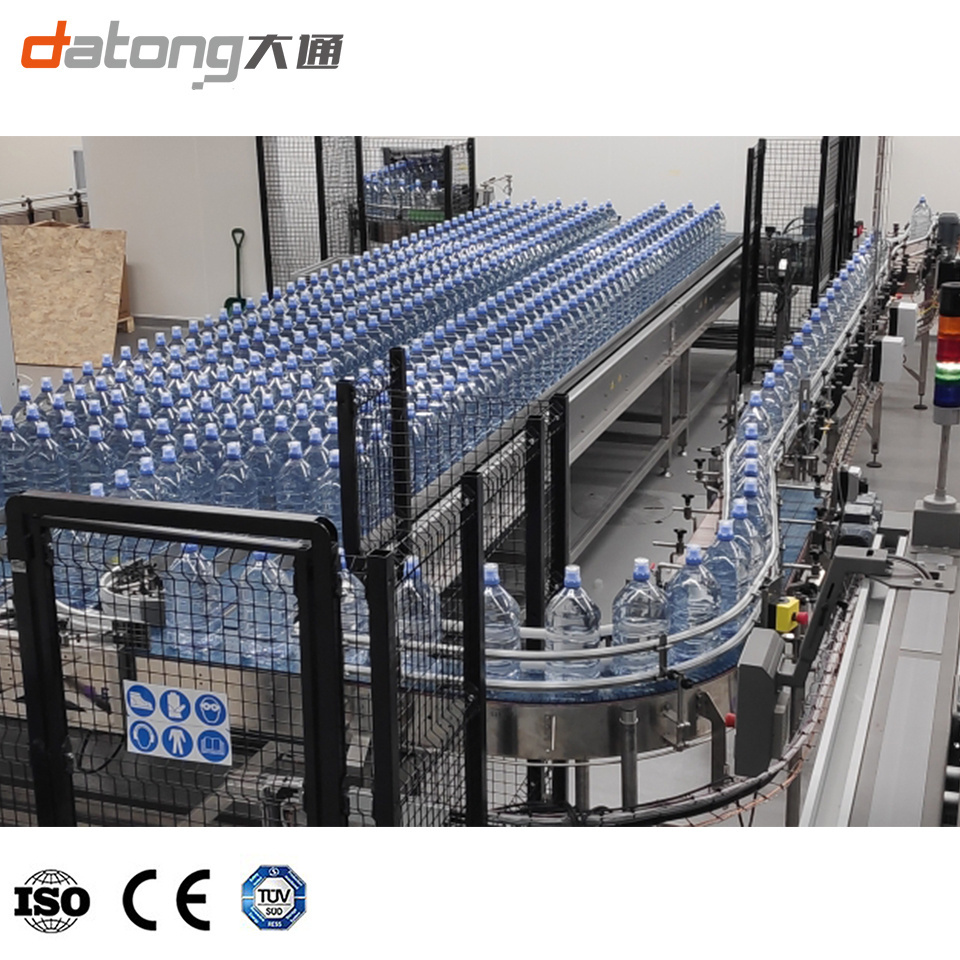

CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from
200ml-2000ml. Inside the three-in-one unit, three processes of bottle washing, filling and sealing are completed at one time. The bottle Production capacity can be reached 2000-30000BPH,It suitable for PET bottle, plastic bottle filling mineral water and pure water.
200ml-2000ml. Inside the three-in-one unit, three processes of bottle washing, filling and sealing are completed at one time. The bottle Production capacity can be reached 2000-30000BPH,It suitable for PET bottle, plastic bottle filling mineral water and pure water.
|
Model
|
CGF14-12-5
|
CGF16-16-6
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
CGF50-50-15
|
CGF60-60-15
|
|||||||
|
Production Capacity(b/h)
|
2000-3500
|
3500-5000
|
5000-7000
|
7000-12000
|
12000-15000
|
15000-20000
|
20000-24000
|
24000-30000
|
|||||||
|
Suitable bottle shape
|
Circular or square
|
|
|
|
|
|
|
|
|||||||
|
Bottle diameter (mm)
|
50-95
|
|
|
|
|
|
|
|
|||||||
|
Bottle height (mm)
|
150-310
|
|
|
|
|
|
|
|
|||||||
|
washing medium
|
aseptic water
|
|
|
|
|
|
|
|
|||||||
|
Total power (kw)
|
3
|
3.5
|
4
|
5.5
|
7.5
|
11
|
15
|
20
|
|||||||
|
weight(kg)
|
2200
|
2800
|
3000
|
4500
|
6000
|
9000
|
15000
|
18000
|
|||||||
|
Overall dimensions (mm)
|
2050*1550*2200
|
2400*1750*2200
|
2550*1850*2200
|
3000*2150*2200
|
4200*2700*2400
|
4700*3200*2400
|
6500*3350*2400
|
7200*3650*2600
|
|||||||
Details Images
Washing Part
*
304stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
*The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
*The rinse is driven by driving system positioned inside machine frame via gear transmission.
Filling Part
*The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.
*Rotary wheel are fully made of stainless steel SS304.
*Filling valves are designed and manufactured with German technology, made of SS304, featu
ring high filling accuracy and high filling speed.
Capping Part
*The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head,
The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
