Quick Details
-
Working medium:
-
compressed air
-
Working pressure:
-
0.1-1.0MPa
-
Proof pressure:
-
1.5MPa
-
Working temperature:
-
-5-70 degree
-
Cushion:
-
adjustable cushion
-
Speed range:
-
30-800mm/s
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CW
-
Product type:
-
BSC Stainless Steel Standard Cylinder
-
Working medium:
-
compressed air
-
Working pressure:
-
0.1-1.0MPa
-
Proof pressure:
-
1.5MPa
-
Working temperature:
-
-5-70 degree
-
Cushion:
-
adjustable cushion
-
Speed range:
-
30-800mm/s

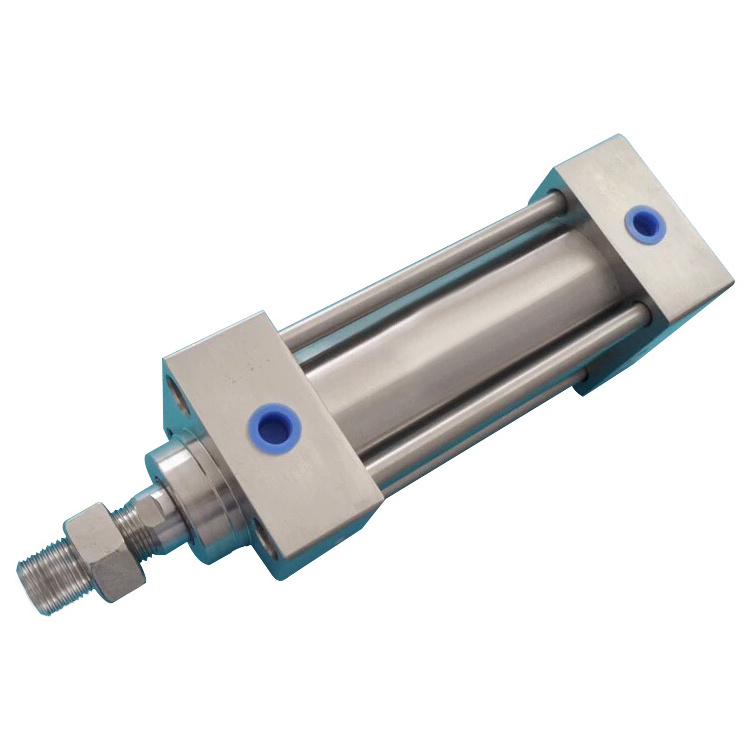

BSC Stainless Steel Standard Cylinder
Features:
1). Normal bore size from 32mm to 200mm,bigger size from 250mm to 400mm can also be provided.
2) .Provided with adjustable cushion on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.
3) .Spray painted cylinder head and internal hard anodized cylinder body.
4). With self lubricating bearing,the piston rod is lubrication free.
5). Magnet and sufficient fixing style are available.
6) .Precision grinding piston rod,cylinder parts were processed by high precision CNC machine and good seals to guarantee good action and long lifetime.
7). Double ends SCD,stroke adjustable SCJ and tow –stage SCT can also be supplied.
How to Order:
Specification:
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT2/1 | PT1/2 | PT3/4 | PT3/4 |
| Action | Double Action | ||||||||
| Working Fluid | Filtered Compressed Air | ||||||||
| Working Pressure | 0.1-0.9MPa | ||||||||
| Proof Pressure | 1.5MPa | ||||||||
| Working Temperature | 0-60 °C | ||||||||
| Cushion | Adjustable Cushion | ||||||||
| Working Speed | 50-800mm/s | 50-500mm/s | |||||||
| Cushion Stroke | 24 mm | 32 mm | |||||||
| Mounting Type | FA FB CA CB LB TC TC-M & Basic Type | ||||||||
Standard Stroke:
| Bore(mm) | Standard stroke | Max. stroke | Permit. stroke |
| 32 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 | 1000 | 2000 |
| 40 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 |
| 50 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 |
| 63 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 80 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 100 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
|
125
|
26 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 160 | 27 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 28 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
Main Material:
All the metal part are stainless steel.
The sealings are VITON
