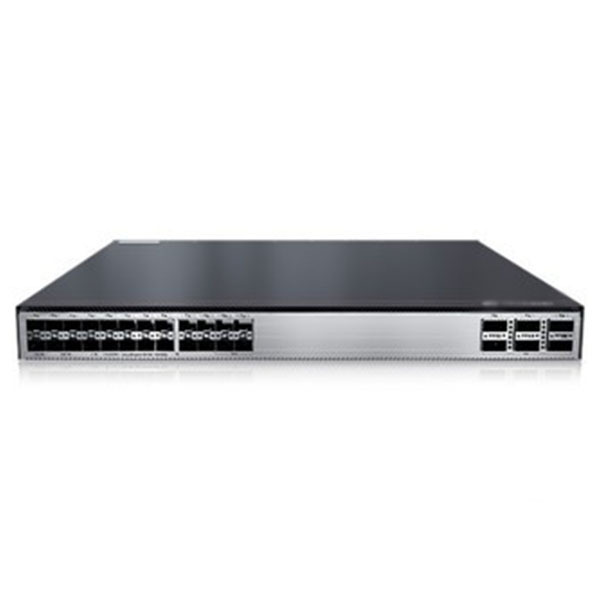

S5732-H24UM2CC CloudEngine S5732-H Series gigabit ethernet switch

S5732-H24UM2CC CloudEngine S5732-H Series gigabit ethernet switch

FOB Reference Price: Get Latest Price

≥2 Sets

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OEM

Model Number:: S5732-H24UM2CC

Place of Origin:: Beijing, China

Product Name:: POE+ Access Network Switches CloudEngine S5735-L Series S5735-L24P4S-A

Products Status::: Stock

chassis height:: 1U

Forwarding Performance:: 490 mpps

color:: black or any

Fixed Ports:: 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports

PoE++:: Supported

Condition::: 100% Original Brand

Extended Slots:: supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 1.28 Tbit/s/2.4 Tbit/s, 1.28 Tbit/s/2.4 Tbit/s

Brand Name:: OEM

Model Number:: S5732-H24UM2CC

Place of Origin:: Beijing, China

Product Name:: POE+ Access Network Switches CloudEngine S5735-L Series S5735-L24P4S-A

Products Status::: Stock

chassis height:: 1U

Forwarding Performance:: 490 mpps

color:: black or any

Fixed Ports:: 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports

PoE++:: Supported

Condition::: 100% Original Brand

Extended Slots:: supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards

Products Description

CloudEngine S5732-H Series Multi-GE Switches
Next generation CloudEngine S5732-H Series Multi-GE Switches offers either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.Based unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a freemobility feature that offers a consistently high-quality user experience.

10 GE Ultra-Fast Access

Supports 24 or 48 10 GE access ports, with 60 W power supply per port.

Built-in Native AC

Manages up to 1024 wireless APs with converged wireless and wired policy management.

Intelligent Network O&M

Collects device data in real-time through telemetry, collaborating with the campus network analyzer, CampusInsight, to quickly and
efficiently detect problems adversely affecting user experience.

CloudEngine S5732-H Series

Parameters	CloudEngine S5732-H24UM2CC	CloudEngine S5732-H48UM2CC
Forwarding Performance	490 mpps	490 mpps
Switching Capacity2	1.28 Tbit/s/2.4 Tbit/s	1.76 Tbit/s/2.4 Tbit/s
Fixed Ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28	48 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28
PoE++	Supported	Supported
Extended Slots	One extended slot, supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards
Wireless Services	Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
Super Virtual Fabric (SVF)	Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)
