- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WADJAy
-
Weight:
-
980 KG
-
Dimension(L*W*H):
-
2.3*1.2*1.4
-
Product name:
-
Tape Slitting Machine
-
Function:
-
Bopp tape slitting
-
Available materials:
-
bopp jumbo roll ,paper core
-
Packing material:
-
Wooden Case Packing
-
Machine type:
-
Semi auto
-
Cutting tool:
-
flat/air knife
-
Air pressure:
-
0.4-0.6 Mpa
-
Paper Core:
-
25.4-76.2 mm
-
Control System:
-
Button or PLC
-
operator:
-
1
Quick Details
-
Voltage:
-
380v
-
Power:
-
50hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WADJAy
-
Weight:
-
980 KG
-
Dimension(L*W*H):
-
2.3*1.2*1.4
-
Product name:
-
Tape Slitting Machine
-
Function:
-
Bopp tape slitting
-
Available materials:
-
bopp jumbo roll ,paper core
-
Packing material:
-
Wooden Case Packing
-
Machine type:
-
Semi auto
-
Cutting tool:
-
flat/air knife
-
Air pressure:
-
0.4-0.6 Mpa
-
Paper Core:
-
25.4-76.2 mm
-
Control System:
-
Button or PLC
-
operator:
-
1
Product Overview
Any inquiry feel free to contact me,
WA NUMBER:+8619137412692
,tape slitting machine

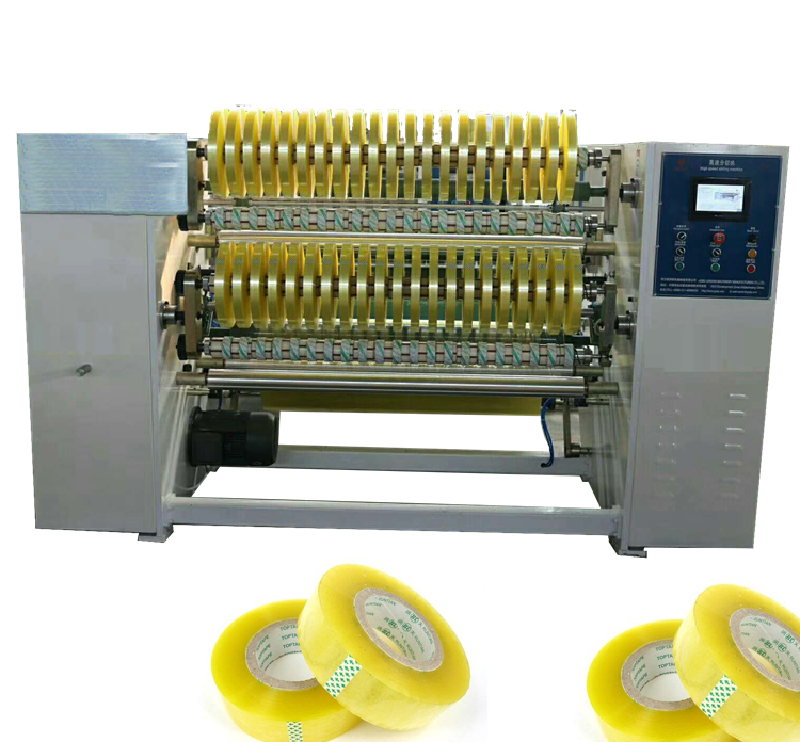

China Factory Made Radial Component Bopp Tape Cutting Slitting Machine
Tape slitting machine making various specifications of finished adhesive tapes from jumbo roll which has been coated with glue, together with other three machines, paper tube cutting machine, paper tube loader and a rewinder.
FEATURES AT A GLANCE
Product advantage:
1. Centralized control panel: all operation buttons gathering on one panel.
2. Double plates 4-shaft rewinding: when the rewinding operation is finished on one p(two shafts, the machine will change
automatically onto another two shafts.
3. 3-step length counter: accurate rewinding length and auto stop for labeling.
4. Banana roller to eliminate tape wrinkling and flat rewinding.
5.Pneumatic brake: more steady machine working performance and accurate positioning and labeling.
6.Two kinds shaft, 1'' for plastic core of stationary tape , 3'' for paper core of packing tape .
1. Centralized control panel: all operation buttons gathering on one panel.
2. Double plates 4-shaft rewinding: when the rewinding operation is finished on one p(two shafts, the machine will change
automatically onto another two shafts.
3. 3-step length counter: accurate rewinding length and auto stop for labeling.
4. Banana roller to eliminate tape wrinkling and flat rewinding.
5.Pneumatic brake: more steady machine working performance and accurate positioning and labeling.
6.Two kinds shaft, 1'' for plastic core of stationary tape , 3'' for paper core of packing tape .
PRODUCT SPECIFICATIONS
|
Item
|
WD-210-500
|
WD-210-1000
|
WD-210-1300
|
WD-210-1600
|
|||
|
Max. slitting width
|
500 mm
|
1000 mm
|
1300 mm
|
1600 mm
|
|||
|
Min. slitting width
|
12 mm
|
|
|
|
|||
|
Max. slitting speed
|
180 m/min
|
125Ton
|
|
|
|||
|
Max load diameter
|
800 mm
|
|
|
|
|||
|
Final diameter
|
350 mm
|
96kN
|
|
|
|||
|
Power
|
2.2 KW
|
3 KW
|
4 KW
|
5.5 KW
|
|||
Successful Project
Project in Thailand
Project in India
Project in Russia
Packing and Delivery
FAQ
1.Can your machine make different size tapes?
Different width tapes---- using different size mould.
For ex. u want to make 4cm width tape, u will need 4cm width mould.
u want to make 4.5cm width tape, u will need 4.5cm width mould etc.
2.What is the expected life of Motor and other parts?
The host equipments are entitled to one year warranty & free replacement & life time technical support service.
3.The voltage in our country is different from yours,does the machine can be changed?
Yes.
4.Are your engineers available to oversea service ?
Yes. Our oversea service centers are updating and more complete.
5.Tell me your factory address.And how can i get there?
Xueyuan Road NO.88 ,Mazhai Industrial Park,Er’qi District, Zhengzhou City ,Henan Province,China.
From Guangzhou take 2hours by plane.
XINZHENG International Airport in our city .
Many fast train lines from our ZHENGZHOU CITY too.
6.How about your machine output one day?
Its max.slitting speed 180m/min,one day 8hour at least can get 2 ton tapes.
7.How to calculate cost,like each roll 4.5cm*100m?
Now jumbo roll is USD1340/ton,you take paper core off tapes,and weigh ten or more rolls tapes,can get total weight.Then calculate
one ton total can make how many rolls 4.5cm*100m tapes.then use 1340/??rolls.You can clear one roll cost.
Different width tapes---- using different size mould.
For ex. u want to make 4cm width tape, u will need 4cm width mould.
u want to make 4.5cm width tape, u will need 4.5cm width mould etc.
2.What is the expected life of Motor and other parts?
The host equipments are entitled to one year warranty & free replacement & life time technical support service.
3.The voltage in our country is different from yours,does the machine can be changed?
Yes.
4.Are your engineers available to oversea service ?
Yes. Our oversea service centers are updating and more complete.
5.Tell me your factory address.And how can i get there?
Xueyuan Road NO.88 ,Mazhai Industrial Park,Er’qi District, Zhengzhou City ,Henan Province,China.
From Guangzhou take 2hours by plane.
XINZHENG International Airport in our city .
Many fast train lines from our ZHENGZHOU CITY too.
6.How about your machine output one day?
Its max.slitting speed 180m/min,one day 8hour at least can get 2 ton tapes.
7.How to calculate cost,like each roll 4.5cm*100m?
Now jumbo roll is USD1340/ton,you take paper core off tapes,and weigh ten or more rolls tapes,can get total weight.Then calculate
one ton total can make how many rolls 4.5cm*100m tapes.then use 1340/??rolls.You can clear one roll cost.
