Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Beijing, China, Beijing,china
-
Brand Name:
-
hang da hui
-
Model Number:
-
HD6038U48BW
-
Voltage:
-
48v
-
name:
-
60x60x38mm 60mm cooling fans 6038 dc drive fan
-
Ball type:
-
ball
-
type:
-
dc cooling fan
-
Product Size:
-
60X60X38MM
-
Current:
-
0.5A
-
Application:
-
power supply
-
noise:
-
55dB
-
Static pressure:
-
58CFM
-
Certification:
-
ce and RoHS
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
-
Electric Current Type:
-
DC
-
Mounting:
-
Free Standing
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Beijing, China, Beijing,china
-
Brand Name:
-
hang da hui
-
Model Number:
-
HD6038U48BW
-
Voltage:
-
48v
-
name:
-
60x60x38mm 60mm cooling fans 6038 dc drive fan
-
Ball type:
-
ball
-
type:
-
dc cooling fan
-
Product Size:
-
60X60X38MM
-
Current:
-
0.5A
-
Application:
-
power supply
-
noise:
-
55dB
-
Static pressure:
-
58CFM
-
Certification:
-
ce and RoHS

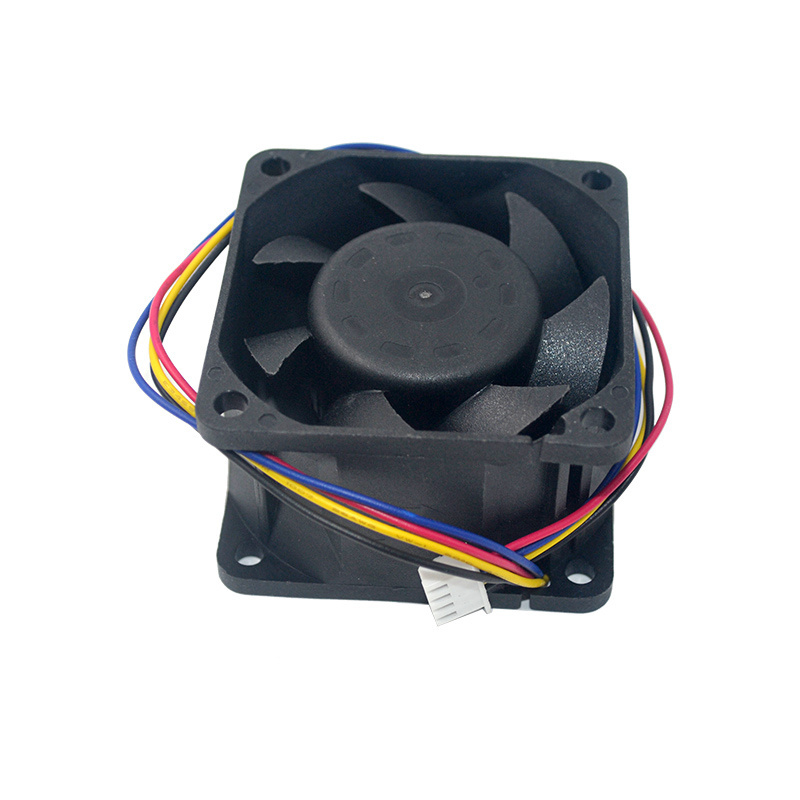

Chinese supplier four wire PWM speed control 12v 24v 60x60x38mm 60mm cooling fans 6038 dc drive fan
| Moldel NO. | Rated Voltage | Operating Voltage | Rated Current | SPeed |
Max .Air Flow |
MAX.Static Pressure | Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD6038L12 | 12 | 7.0-13.8 | 0.40 | 6500 | 0.85 | 30.2 |
17.1 |
0.67 | 42.5 |
| HD6038M12 | 12 | 7.0-13.8 | 0.65 | 9000 | 1.23 | 43.4 | 30.4 | 1.20 | 48.5 |
| HD6038H12 | 12 | 7.0-13.8 | 1.30 | 11000 | 1.56 | 55.0 | 50.5 | 1.99 | 53.5 |
| HD6038L24 | 24 | 14.0-27.6 | 0.20 | 6500 | 0.85 | 30.2 | 17.1 | 0.67 |
42.5 |
| HD6038M24 | 24 | 14.0-27.6 | 0.35 | 9000 | 1.23 | 43.4 | 30.4 | 1.20 |
48.5 |
| HD6038H24 | 24 | 14.0-27.6 | 0.65 | 11000 | 1.56 | 55.0 | 50.5 | 1.99 |
53.5 |
| HD6038L48 | 48 | 28.0-56.0 | 0.13 | 6500 | 0.85 | 30.2 | 17.1 | 0.67 |
42.5 |
| HD6038M48 | 48 | 28.0-56.0 | 0.23 |
9000 |
1.23 | 43.4 | 30.4 | 1.20 | 48.5 |
| HD6038H48 | 48 | 28.0-56.0 | 0.40 | 11000 | 1.56 | 55.0 | 50.5 | 1.99 |
53.5 |
Connector
