Quick Details
-
Model Number:
-
SCIB
-
Place of Origin:
-
Japan
-
Weight:
-
0.52KG
-
The charging ratio:
-
5C
-
The discharge rate:
-
70C
-
Electric Energy:
-
176 Wh
-
Battery type:
-
Lithium titanate battery
-
Product name:
-
Rechargeable Lithium titanate battery
-
Capacity:
-
20Ah/10Ah/2.9Ah
-
Voltage:
-
2.3V
-
Cycle life:
-
40000 cycles
-
Size:
-
22*106*130mm
-
Internal Resistance:
-
0.6mΩ
-
Charging Ambient Temperature:
-
-30℃~60℃
-
Discharging Ambient Temperature:
-
-30℃~60℃
-
Storage Temperature:
-
-20℃~45℃
Quick Details
-
Anode Material:
-
LTO
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
JP toshiba
-
Model Number:
-
SCIB
-
Place of Origin:
-
Japan
-
Weight:
-
0.52KG
-
The charging ratio:
-
5C
-
The discharge rate:
-
70C
-
Electric Energy:
-
176 Wh
-
Battery type:
-
Lithium titanate battery
-
Product name:
-
Rechargeable Lithium titanate battery
-
Capacity:
-
20Ah/10Ah/2.9Ah
-
Voltage:
-
2.3V
-
Cycle life:
-
40000 cycles
-
Size:
-
22*106*130mm
-
Internal Resistance:
-
0.6mΩ
-
Charging Ambient Temperature:
-
-30℃~60℃
-
Discharging Ambient Temperature:
-
-30℃~60℃
-
Storage Temperature:
-
-20℃~45℃

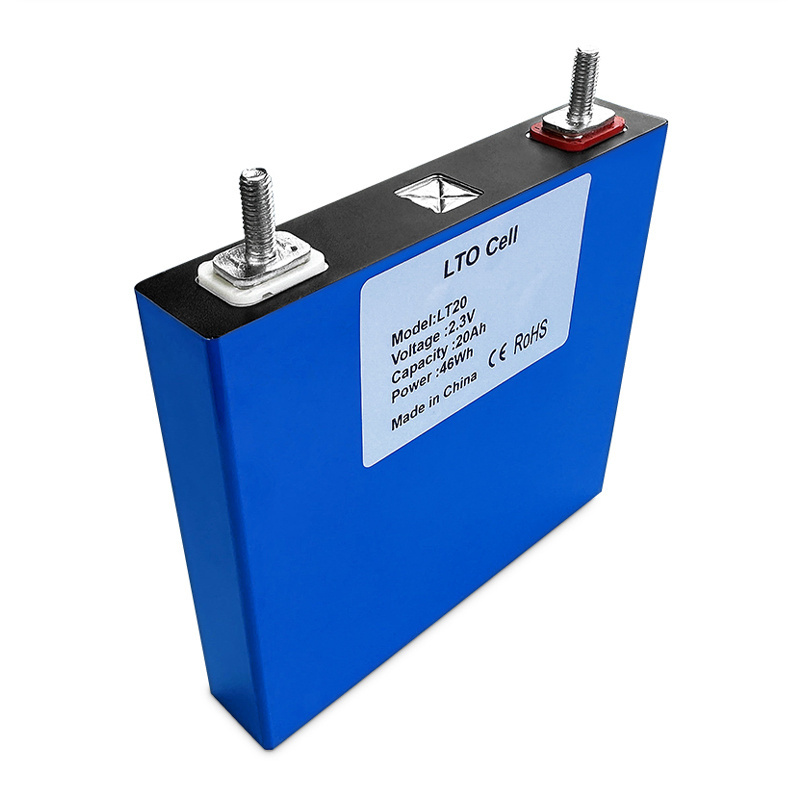

Products Specification
|
Product Name
|
Lithium titanate Prismatic Rechargeable Cells
|
|
|
|
|||
|
Battery manufacturer
|
toshiba
|
|
|
|
|||
|
Standard capacit
|
20Ah
|
|
|
|
|||
|
Operating Voltag
|
2.5~3.65V
|
|
|
|
|||
|
Internal resistance
|
≤0.16±0.05m Ω
|
|
|
|
|||
|
Operating temperature (charging)
|
0~65℃
|
|
|
|
|||
|
Operating temperature (discharge)
|
-35~65℃
|
|
|
|
|||
|
Cell weight
|
0.51Kg
|
|
|
|
|||
|
Cell Siz (L,W, H)
|
130*22*106mm±0.2
|
|
|
|
|||
|
Cell cycle
|
≥40000cycles
|
|
|
|
|||
|
Rated current
|
1C
|
|
|
|
|||
|
Maximum discharge current
|
1C
|
|
|
|
|||
|
Standard charging
|
Single battery maximum 3.65V
|
|
|
|
|||
|
Discharge cut-off volt
|
2.5V
|
|
|
|
|||
|
Applications
|
Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle
|
|
|
|
|||
Products Description
Note:
1.This item is T
oshiba
2.3V 20Ah
item, the QR code is intact, Grade A+, Brand new. After our test, the maximum discharge capacity can reach 25Ah.
2.The price come with Bus bars and Bolts one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery, we will send 4pcs cells with 4 pcs busbars and 8pcs bolts If need more please contact us online. Thank you!
3.The busbars size:90*20*2mm (cooper plated with nickel) Screw size: M6.
4.We will test all the battery Voltage, Internal resistance and capacity before delivery.
2.The price come with Bus bars and Bolts one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery, we will send 4pcs cells with 4 pcs busbars and 8pcs bolts If need more please contact us online. Thank you!
3.The busbars size:90*20*2mm (cooper plated with nickel) Screw size: M6.
4.We will test all the battery Voltage, Internal resistance and capacity before delivery.
